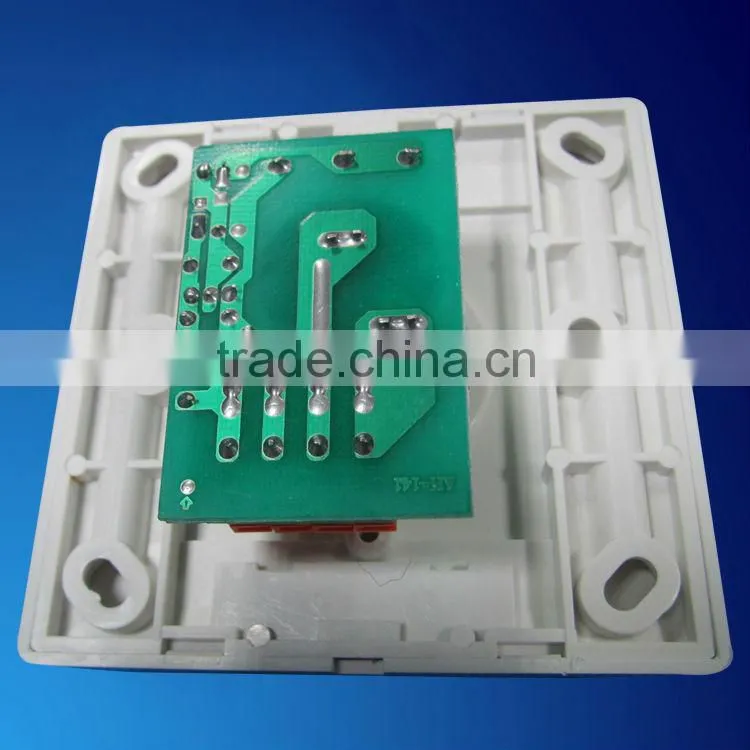

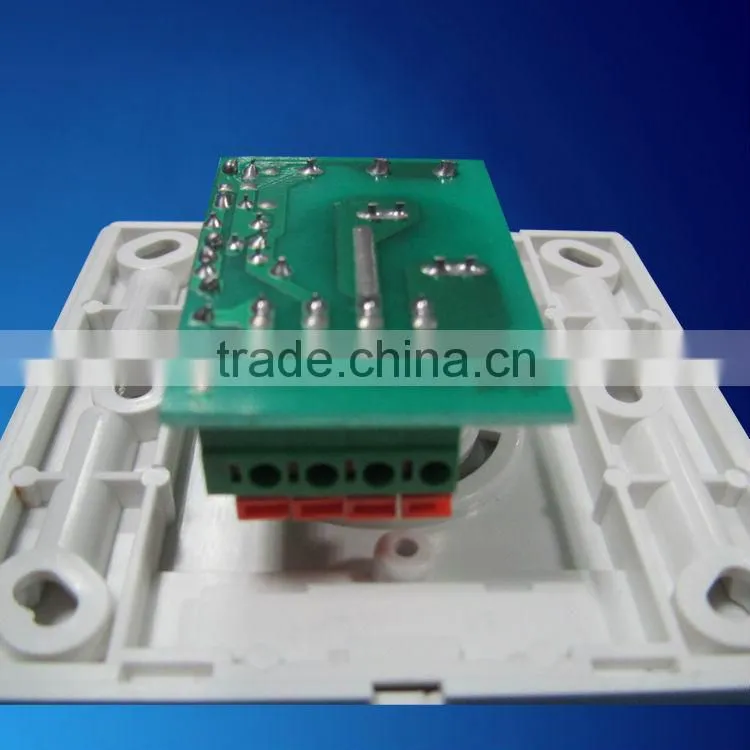

Picture:
Features:
(0-10v dimmer)
1)Input voltage 110-220v,50/60Hz.
2)Output voltage DC0-10V.
3)Work with dimmable LED driver.
4)With switch,maximum current 1A,standard wiring terminal.
5)Accord with international standard 86 panel,dimension is 86x86x55mm.
6)Simple and easy for wiring,rotating to stepless dimming,no flicker.
(1-10v dimmer)
1)No wiring to Neutral terminal.
2)Work with dimmale LED driver.
3)Output DC1-10v signal dimming control.
4)With switch,maximum current 1A,standard wiring terminal.
5)Accord with international stadard 86 panel,dimension is 86x86x55mm.
6)Simple and easy to wiring,rotating to stepless dimming,no flicker.

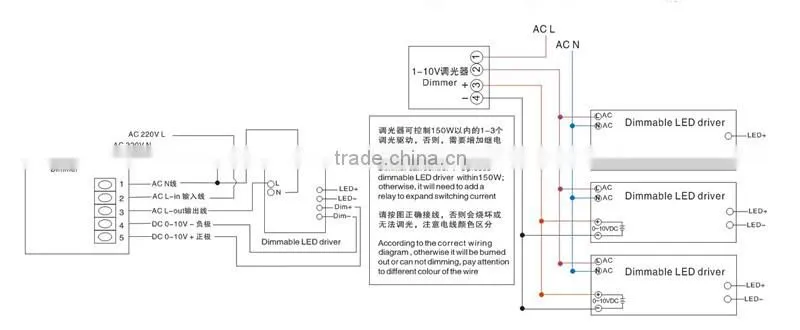

Wiring Diagram:
Specification:
| Model | Input voltage | Output voltage | Frequency | Switch | SW Curret | Ambient temp | Dimension(mm) |
| OG-TGQ-010 | 110v/220v | DC 0-10V | 50/60Hz | yes | 1A(max) | 0-50°C | 86x86x55 |
| OG-TGQ-110 | 110v/220v | DC 1-10V | 50/60Hz | yes | 1A(max) | 0-50°C | 86x86x55 |
Good feedback from clients:
Our showroom:
HongKong Lighting Fair:
Please feel free to scan the two-dimensional bar code as below by your cellphone.
Much appreciate you could keep my contact information in your phone and focus on our products.
Do you have any question, please do not hesitate to contact me. Thank you very much!
