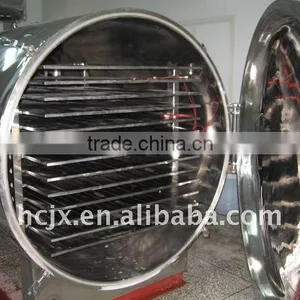

Help CenterVacuum Freeze-drying Machine
Related Products
We provide freeze drying machine, freeze drying equipment, vacuum freeze dryer machine, vacuum freeze drying equipment for food.
Freeze drying machine
We provide freeze drying machine, freeze drying equipment, vacuum freeze dryer machine, vacuum freeze drying equipment, fruit freeze drying Machine, vegetable freeze drying equipment, food freeze drying machine, herbal freeze drying equipment, pharmautical freeze drying machine, colostrum freeze drying machine.
Vacuum freeze drying is an advanced method for dewatering pharmacon, herbal, vegetables and fruit. The freeze drying machine freezes the moisture material in the low temperature, so the freeze-drying method preserves as much nutrients of raw materials, such as protein, vitamins, etc. The freeze drying equipment is widely used in Medicine, food and chemical industries.
Application of freeze drying machine:
The freeze drying equipment made by our company is designed and manufactured strictly according to GMP Specifications,
And has the following merits:
All the parts contacting the products are made of stainless steel 316L, the surface roughness reaches Ra≤ 0.5um.
The inner circle of the chamber has a smooth transition without dead corner, no objects accumulated.
Considering for user, the structure is easy to clean.
Option for steam sterilization or chemical sterilization.
Except for the above, our company can also provide automatic running CIP(Clean-in-Place)
And SIP(Sterilization-in-Place) functions to ensure the high quality of cleaning and sterilizing the equipment.
SIP of freeze drying machine:
Use overheats pure steam (12C)
Equipped with cooling water jacket, after sterilizing, it can fast reduce the temperature of the
Chamber(if less than 20, the equipment is standard configuration. )
Optional pneumatic door lock, it locks automatically.
Use imported sterilization filter to ensure absolutely sterilized air entering equipment.
The chamber and various kinds of container and tube are all wrapped with imported insulation
Material to efficiently avoid from heat transmission.
Can carry out constant humidity control to the refrigeration humidity.
Equipped with water ring pump capable to eliminate residual water inside the chamber.
| The data of freeze drying machine | ||||||||||
| Model | ZG-1 | ZG-2 | ZG-3 | ZG-5 | ZG-10 | ZG-15 | ZG-20 | ZG-30 | ZG-40 | ZG-50 |
| Dying box' s dimension(D*L) |
0.7*0.7 | 0.8*0.9 | 0.9*1.0 | 1.0*1.2 | 1.2*1.5 | 1.3*1.9 | 1.4*1.9 | 1.5*2.3 | 1.7*2.5 | 1.8*2.5 |
| Effective drying plank' s area(M 2 ) | 1 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Drying plank' s working tempreture | -45- 60 | -45-60 | -45-60 | -45-60 | -45-60 | -45-60 | -45-60 | -45-60 | -45-60 | -45-60 |
| Drying plank' s difference in tempreture |
± 1 | ± 1 | ± 1 | ± 1 | ± 1 | ± 1 | ± 1 | ± 1 | ± 1 | ± 1 |
| Condensator' s tempreture | -50--60 | -50--60 | -50--60 | -50--60 | -50--60 | -50--60 | -50--60 | -50--60 | -50--60 | -50--60 |
| Condensator' s water-catching weight(kg) | 12 | 25 | 40 | 60 | 120 | 200 | 250 | 350 | 550 | 700 |
| Max working vacuum perssure(Pa) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 9 | 13 |
| Cooling water' s flox(≤ 25)(T/H) | 2 | 3 | 5 | 5 | 8 | 10 | 15 | 25 | 35 | 40 |
| Mothed of defrosting | SPRAY AND FLOODING | |||||||||
| Working condition | 5-30 | Humidity< 75% | ||||||||
| Maching-assembling power(kw) | 18 | 22 | 25 | 28 | 40 | 50 | 60 | 90 | 130 | 150 |
| Setting dimension(M 2 *M) | 8*2.5 | 15*2.5 | 20*2.5 | 25*2.5 | 35*2.5 | 40*2.5 | 45*2.5 | 50*2.5 | 60*2.5 | 60*2.5 |
