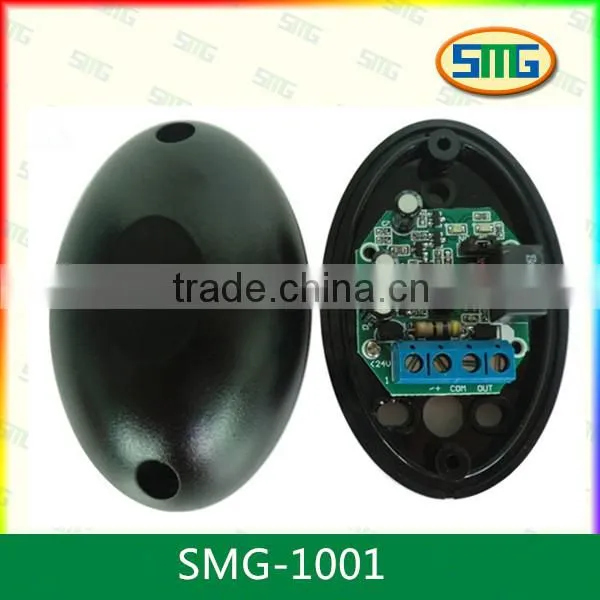

Half Egg 20m Photoelectric Single Beam Photocell Infrared Parking Sensor
Single Channel Active Infrared Beam Detector,wireless photocell SMG-1001
Specification:
1.Infrared Frequancy : 1.92khz
2.Power supply : 12 to 24 VDC /AC
3.Wave length :940nm
4.Input : r*15ma - t*30ma
5.Operating temperature : --20 degrees to 50degrees
6.Relay output : 1 a max *36 v
7.Dimension: 49.2 x 76 x 21.6mm
8.Range : range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc
Features:
1.Single beam sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.
2.Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.
Narrow infrared beam (I or II) can avoid interruption by external light.
3.Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).
4.The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.
Packing: 1pcs/plastic bag and 500pcs/carton or customized
Shipment: DHL, UPS, EMS or othes as u required.
7 working day for qantity below 1000pcs
12 working days for quantity below 5000-10000pcs
15 working days for quantity above 10000ps
For Order
1.Accept OEM and ODM.
2.Can print logo on the case and package.
3.Terms of payment:TT/Western Union optional
4.MOQ:100 pcs
Before Order
1. Skype online for directly and Email for Offical talking.
2.Sales know market very well and product very well, will give u some suggestion for the application and market sells
After order
1. Lift-time Technical support.
2. 1 Years quality warranty
Pls confirm 2 points as below
1). What is the frequency you required, 315mhz or 433.92mhz or others ?
2). what is the chip u required to clone?1527 or others?
Kindly contact us if u r not clear.
