Help CenterCrane Hoist Brake
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Wuhu dazhong
Model Number:
TDZ1-160
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai and ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Anhui, China
Brand Name
Wuhu dazhong
Model Number
TDZ1-160

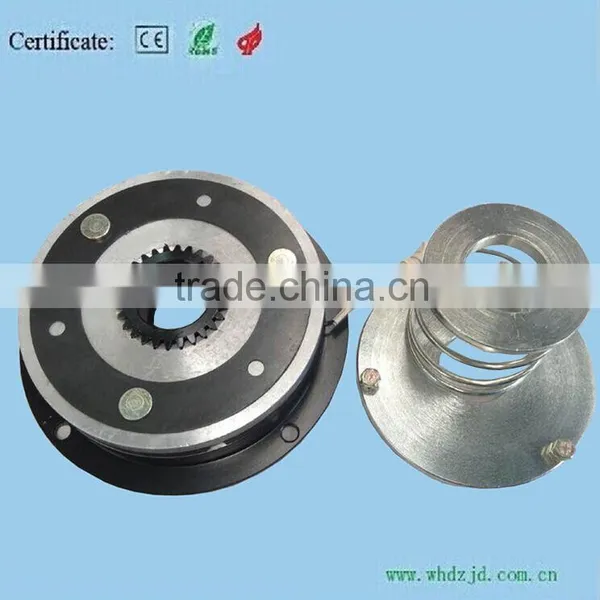

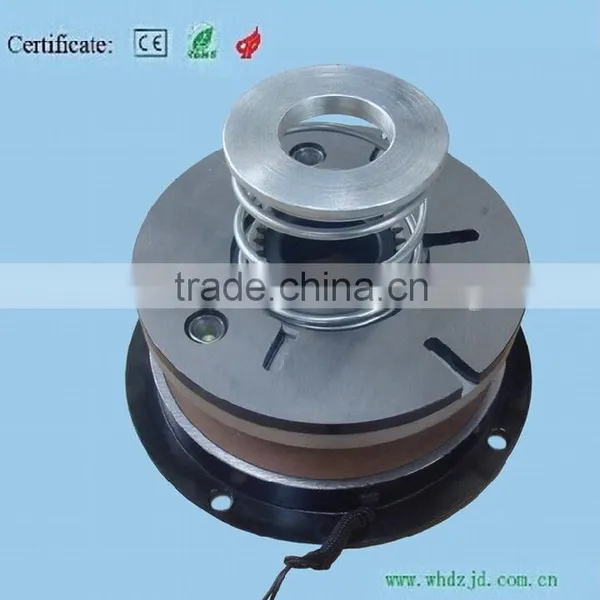

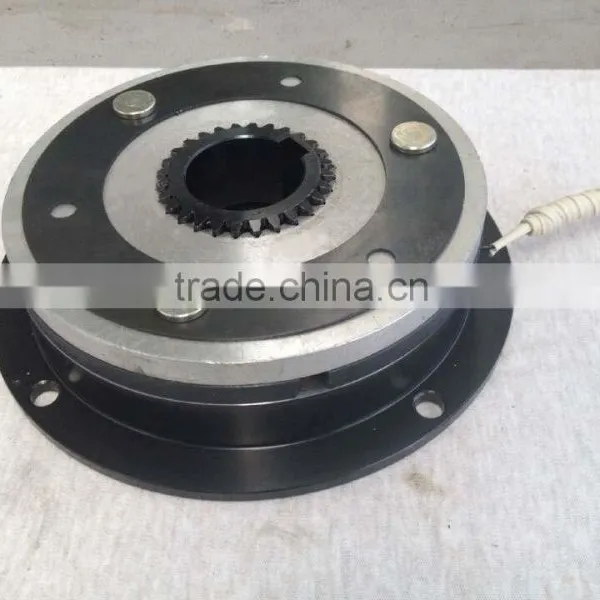

TDZ1 series Crane hoist brake
Rated braking torque:5-160N.m
voltage:24v,99v,170V
Item and Specification |
TDZ1-05 |
TDZ1-10 |
TDZ1-20 |
TDZ1-40 |
TDZ1-80 |
TDZ1-160 |
|
Base of motor |
71 |
80 |
90 |
100 |
112 |
132 |
160 |
Rated brake moment Me(N•m) |
5 |
10 |
20 |
40 |
80 |
160 |
|
Voltage rating DC(V) |
24,99,170 |
||||||
Power rating P20°C(W) |
13 |
16 |
20 |
30 |
40 |
45 |
|
Max gap of operation (mm) |
1.5 |
1.8 |
2.2 |
||||
Permissible relative rotation velocity (rpm) |
6000 |
5000 |
4000 |
3500 |
3000 |
||
|

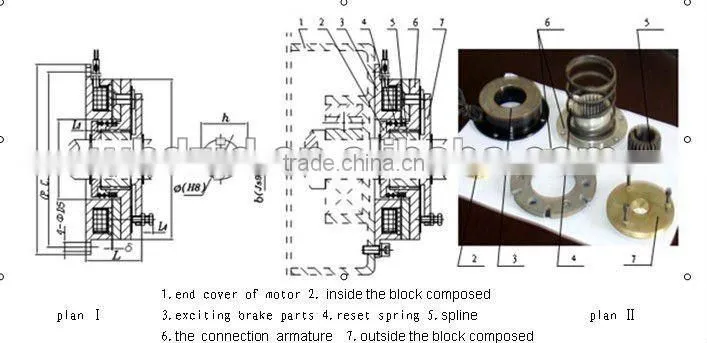

size specification |
D1 |
D2 |
D3 |
D4 |
D5 |
L1 |
L2 |
L3 |
L4 |
L |
Φ |
b |
h |
δ |
TDZ1-05 |
80 |
72 |
35 |
63 |
5 |
3.5 |
5 |
20 |
6~9 |
35.5 |
14.8 |
5 |
16.2 |
1 |
TDZ1-10 |
100 |
90 |
42 |
80 |
6 |
4.3 |
6 |
40 |
19.8 |
6 |
22.6 |
|||
TDZ1-20 |
125 |
112 |
52 |
100 |
7 |
5 |
10 |
25 |
6~10 |
50 |
24.8 |
8 |
28.1 |
|
TDZ1-40 |
150 |
137 |
62 |
125 |
5.5 |
55 |
29.5 |
32.8 |
||||||
TDZ1-80 |
190 |
175 |
80 |
160 |
9 |
6 |
9 |
30 |
56 |
39.5 |
12 |
42.8 |
||
TDZ1-160 |
230 |
215 |
100 |
200 |
7 |
10 |
35 |
62 |
44.5 |
47.8 |
Note:δ is a recommended value at the beginning of installation
