Home > Products > ZDY,ZLY,ZSYserial cylindrical gearboxes > HOT SALE!!! ZDY cylindrical shaft mounted geared motor

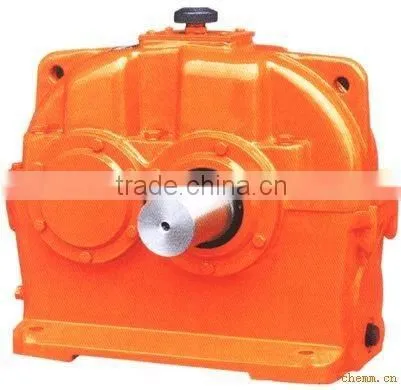

HOT SALE!!! ZDY cylindrical shaft mounted geared motor
- 500 Set / Sets per Month
- TIANJIN
- T/T
Product Details
Place of Origin: | China | Brand Name: | WOSEN | Model Number: | ZSY,ZLY,ZDY |
Gearing Arrangement: | Bevel / Miter | Output Torque: | 4800~400000N.m | Rated Power: | 4~1905KW |
Input Speed: | 750~1500rpm | Output Speed: | 67-706r/min |
Product Description
Specifications
DCY ZSY ZLY serial cylindrical geared motor-High in transmission efficiency
-Smooth and stable in run,
-low noise
HOT SALE!!! ZDY cylindrical shaft mounted geared motor
Characteristic
1.The gear employs high-strength low-carbon alloy steel carbureted, quenched and ground, with hardness of
gear flank of HRC58-62, high precision and good contact.
2. High drive efficiency: single stage>96.5%, two-stage>93%, three-stage>90%.
3. Stable operation, low noise.
4. Compact, light weight, durable lifetime, high carrying capacity.
5. Easy to dismantle, repair and install .
Specification and Marking of Reducer
1. The type includes: ZDY single-stage cylindrical gear reducer, ZLY two-stage cylindrical gear reducer, ZSY three-stage cylindrical gear reducer and ZFY four-stage cylindrical gear reducer.
2. The specification includes:
single stage: 80, 100, 125, 160, 200, 250, 280, 315, 355, 400, 450, 500, 560;
Two stage: 112, 125, 140, 160, 180, 200, 224, 250, 280, 315, 355, 400, 450, 500, 560, 630, 710;
Three stage: 160, 180, 200, 224, 250, 280, 315, 355, 400, 450, 500, 560, 630, 710;
Four stage: 180, 200, 225, 250, 280, 320, 360, 400, 450, 500, 560, 630, 710, 800.
1.Price: If the minimum order amount is in excess of $10000, there are preferential.
2.Payment Term: 30% TT in advance+70% balance before shipment or total advance.
3.Working time: about 20 to 30 days from receive payment.
4.We accept customized products: as per your special requirement.
5.Guidelines for the Selection: Usually we can select one machine which is suitable for you with some informations from you,such as ratio/motor speed/mounting dimension/ out torque etc.
