Help CenterMechanical Jack
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
wosen
Model Number:
SWL/JWM
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Jack ScrewNegotiableMOQ: 1 Set -
Platform JackNegotiableMOQ: 1 Set
-
Screw Jack Electric Lifting Tool Widely Used in Water Conservancy FacilitiesNegotiableMOQ: 1 Set
-
SWL2.5T Screw Jack Worm Gearbox Manual or Electric JackNegotiableMOQ: 1 Set
-
SWL Series SJ Series Screw Jack Worm Screw Jack Speed Can be Fast Can Also be SlowUS$ 50 - 5,163MOQ: 1 Set
Place of Origin
China
Brand Name
wosen
Model Number
SWL/JWM
Gearing Arrangement
Worm
Output Torque
Up to 1200 kn
Rated Power
0.05KW~57.5KW
Input Speed
50r/min~1500r/min
Output Speed
Adaptive

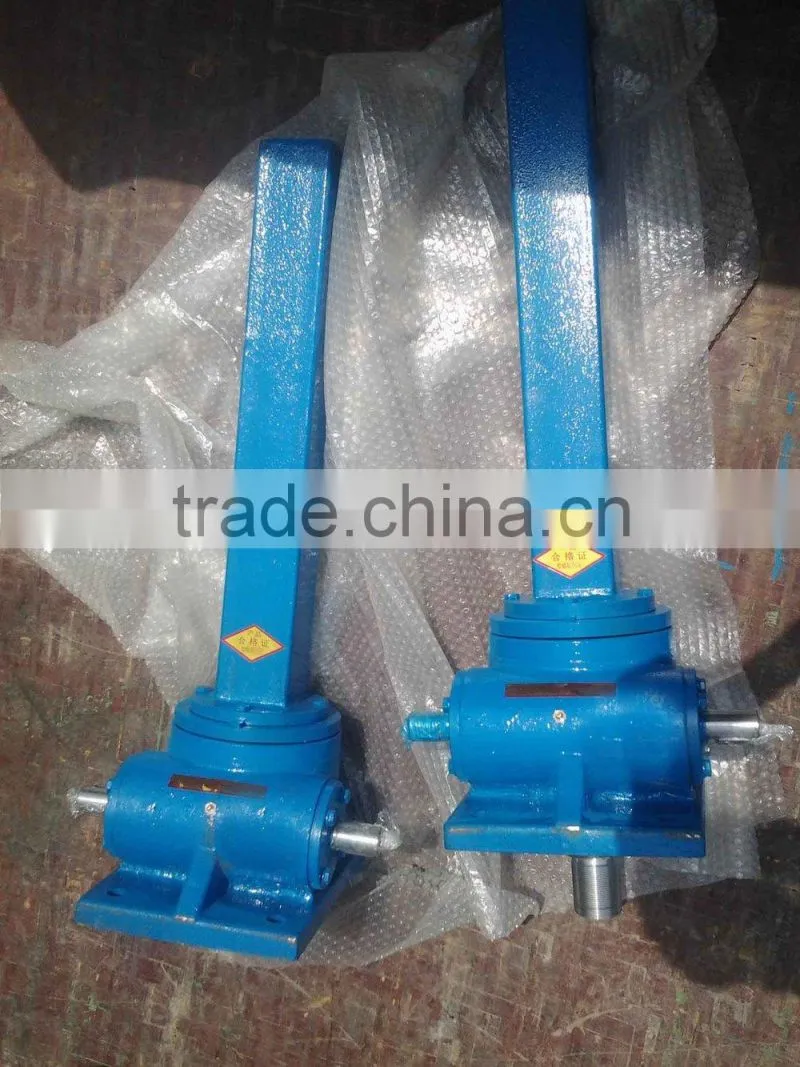

mechanical jack

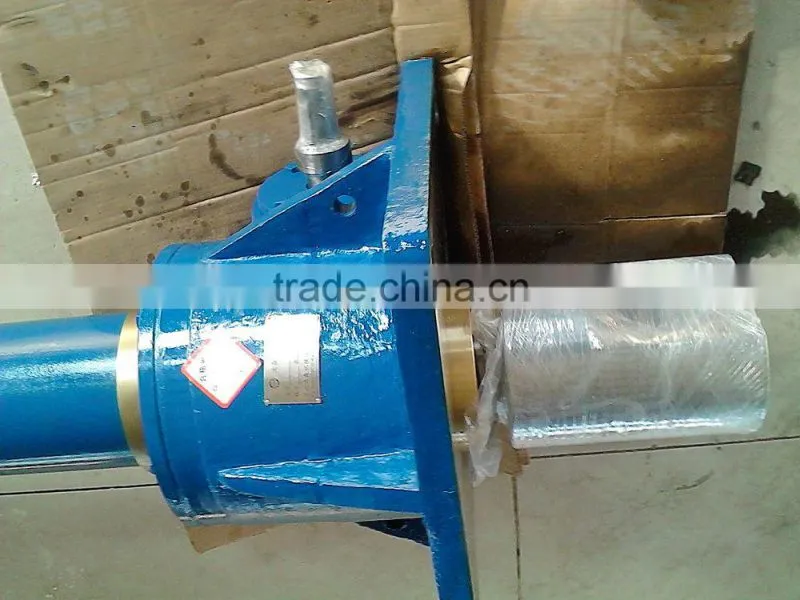

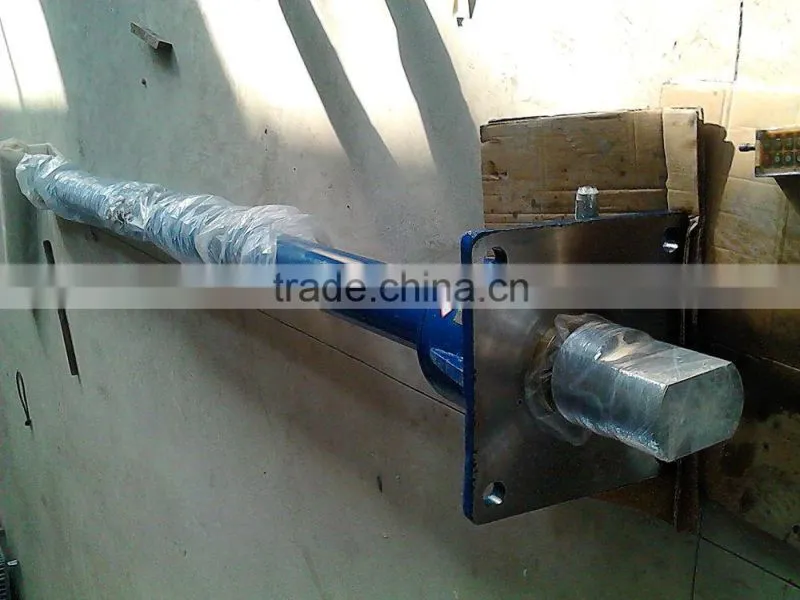

Product Description

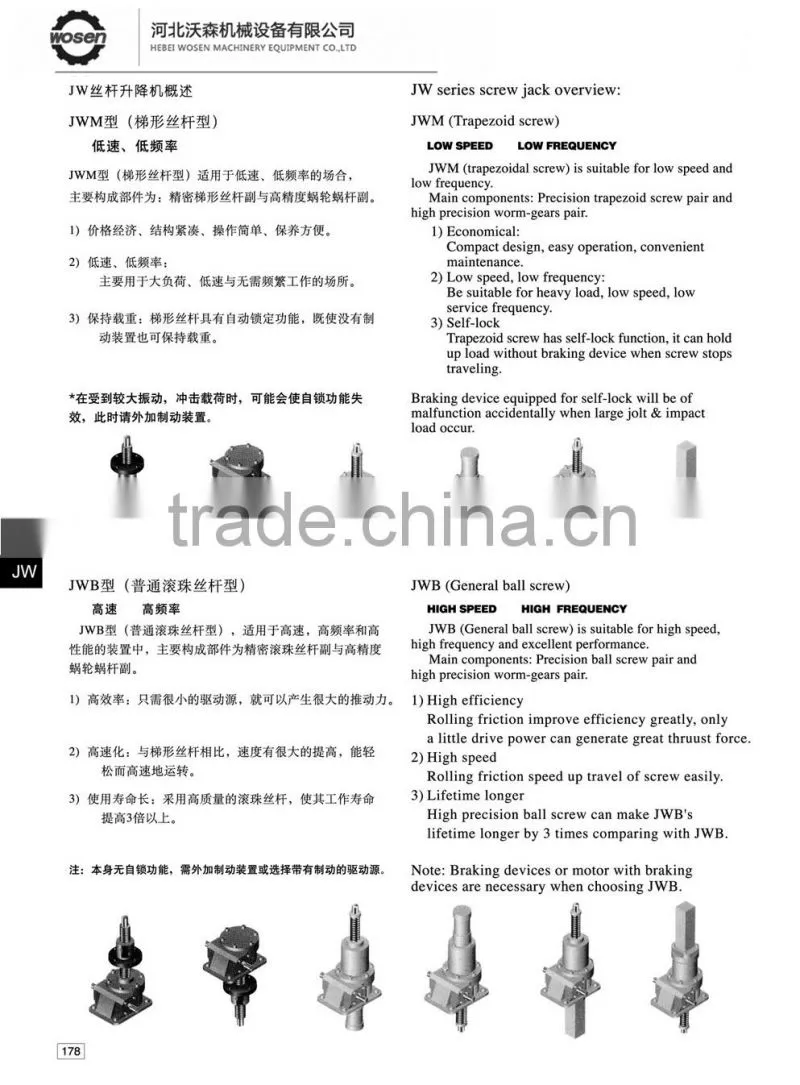

| Type: | Worm Gear Screw Jack/ mechanical jack |
| Model: | SWL0.05-SWL120( 200KG,500KG,1T,1.5T,2T,2.5T,3T,5T,10T,15T,20T,30T,40T,50T,100T,120T) Ball Screw |
| Ratio: | 1/8,1/10,1/12,/1/15,1/20,1/24,1/30,1/40 |
| Color: | Grey,Blue |
| Material: | Housing-Casting iron-HT200# |
| Worm Gear- Cooper-10-3 # | |
| Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC | |
| Shaft & Screw-chromium steel-45# | |
| Packing: | Paper carton,Plywood box / per set(With foam board inside) |
| Bearing: | Brand "HRE" Bearing |
| Seal: | NAK Seal from TAIWAN |
| Warranty: | 1 year |
| Input Power: | Various Power |
| Usages: | In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing, dyeing,woodworking, glass and plastics….. |
| IEC Flange: | 80B5,90B5,100B5,112B5,132B5..... |
| Lubricant: | Synthetic & Mineral |
Function:
Screw jack( mechanical jack ) is a basis jack-up part, accomplanish the fuctions such as
lifting, drop, push and inverting through worm gear drives screw.
Advantages:
-Self-locking ability
-Can be driven directly by motor or other power or manual
-Can be customized according user's demand
-Compact configuration, small size, lightweight
-Convenient installation, flexible operation
-High reliability and stability
-Long service life
-More connection form etc.
Application Industry:
Screw jak is applied to all fields for lifting or pulling, such as
Aircraft maintenance platform, Solar plate, machinery, metallurgy,
water conservancy, medical treatment, chemical industry, culture and
hygienist etc.
