Home > Health & Medicine > Beauty Equipment > Skin Beauty Equipment > EO Q Switch ND: YAG LASER1

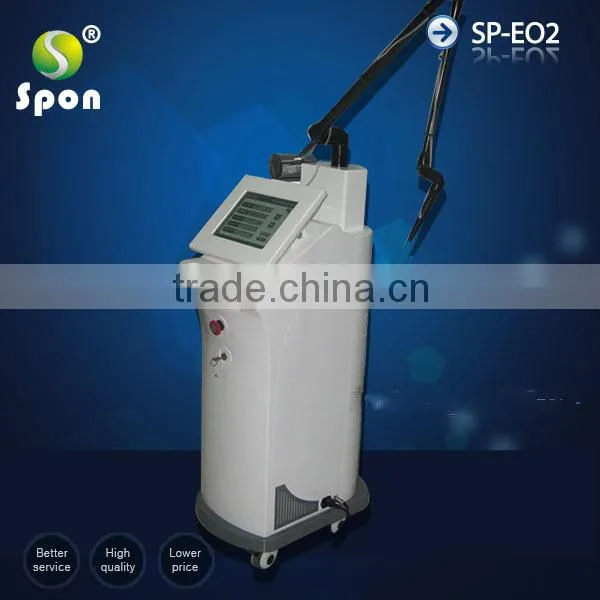

EO Q Switch ND: YAG LASER1

Name: EO Q Switch ND: YAG LASER1
Brand: SPON
SKU: 110850563

US$ 1 - 300 MOQ: 1 Set

Key Specifications

Get Latest Price

IPL+ RF:

Yes

Certification:

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Guangzhou Spon Electric Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Huangpu

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

IPL+ RF Yes

Certification CE

Place of Origin Guangdong, China

Brand Name SPON

Model Number SP-EO2

Feature Acne Treatment, Face Lift, Hair Removal, Pigment Removal, Pigmentation Correctors, Pore Remover, Skin Rejuvenation, Skin Tightening, Tattoo Removal

The EO Q-SWITCHED ND:YAG LASER

1.Brief Instruction

According to the different colors of light absorption principle, Q-switch Nd: YAG laser radiation peak high-energy pulsed light having a specific wavelength, different color absorbs light penetrate tissue ultra-short pulse width in nanoseconds, and light is absorbed instantaneous explosion pigments and results. Pigment particles are shattered into fragments, which will be returned to the skin and other parts will be split into small particles can be phagocytes and then eliminated by the lymphatic system.

Technology advantages

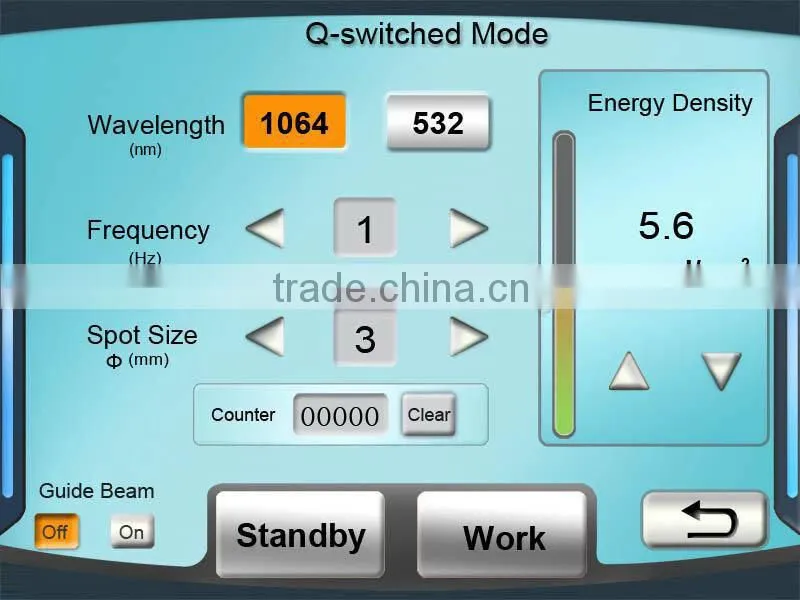

1. 12.1 inch TFT touch LCD is luxury and convenient for operation in any angle. Compact laser module with high integration.

2.Extremely effective and fast treatment-Single pulse up to 850mJ, Repetition Rate up to 10Hz.

3.Articulated arm from Korea with low optical loss, low maintenance, high stability and long lifetime.

4.Dual wavelengths (1064 nm & 532 nm)is convenient to adjust via touch LCD.

5.Spot size 1-7mm adjustable. which is ideal for a wide variety of treatment parameters.

6.Flat-Top Beam,ensures energy steady and unique,give good treatment results!

7. Red Aiming Beam/Light for accurate treatment.

2.Working Principal

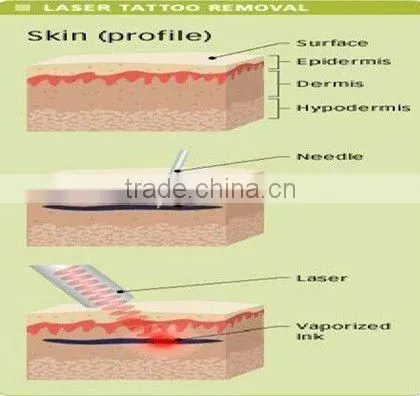

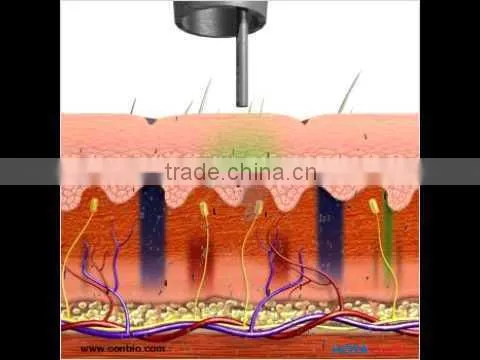

What is ND:YAG LASER THERAPY

The Q-switched Nd:YAG laser radiates the light of specific wavelengths in high peak energy pulse, and in ultra-short nanosecond the light penetrates the tissue and is absorbed by the pigmentand result in an instantaneous blast.The pigment particles are shattered in to fragments, partsof them will be bounced out of theskin and the other parts will be spilt into tiny particles that can be engulfed by phagocytes and then eliminated by lymphatic system.

3.Functions & Effects

1.Tattoo (black, red, brown, blue, etc.)

2.Pigmented lesions: Sunspot, Ota's nevus, melasma, Age spot, CALMS, Nevus , Zygomatices etc.

3.Laser Facial: skin rejuvenation and Resurfacing, smooth out fine wrinkles and expressionlines,reduce pigmention such as sun spots and freckles, frim up skin tone. Large pore reduction.

3.Age-spot, sun-spot removal

6.Dermatology.

Treatment Before & After

4. Applications

ND:YAG Laser We Can Do:	1.Tattoo (black, red, brown, blue, etc.)
	2.Pigmented lesions: Sunspot, Ota's nevus, melasma, Age spot, CALMS, Nevus , Zygomatices etc.
	3.Laser Facial: skin rejuvenation and Resurfacing, smooth out fine wrinkles and expressionlines,reduce pigmention such as sun spots and freckles, frim up skin tone. Large pore reduction.
	4. Effective for skin whitening and tightening, reduced skin elasticity/ dull skin
	5. skin renewal: Secure high-speed repair damaged skin

5. Parameters

Laser type:	ND: Yag laser
Maximum Energy:	850mj @1064nm, 650mj @532nm; 250mj at 585nm; 150mj at 650nm
Wavelength:	532nm; 1062nm;585nm;650nm
Repetition Rate:	1-10Hz
Pulse Width :	6ns
Q switch type :	EO active Q switch technology
Max energy output:	1.5J at 1064nm
Laser conduct :	seven-joints articulated arm
Spot siz:	2mm-10mm diameter
Laser generator :	doubling lamp doubling crystal laser generator
Indicator :	diode 650nm laser
Kinds Of Screen:	LCD digital touch screen 12.1inch
Cooling system:	semiconductor+ intelligent cooling + water+ wind + gel
Voltage:	110V-130V ,60HZ/ 220V-240V,50 HZ
Size Of Machine:	120cm65cm65cm
Weight Of Machine:	70kg

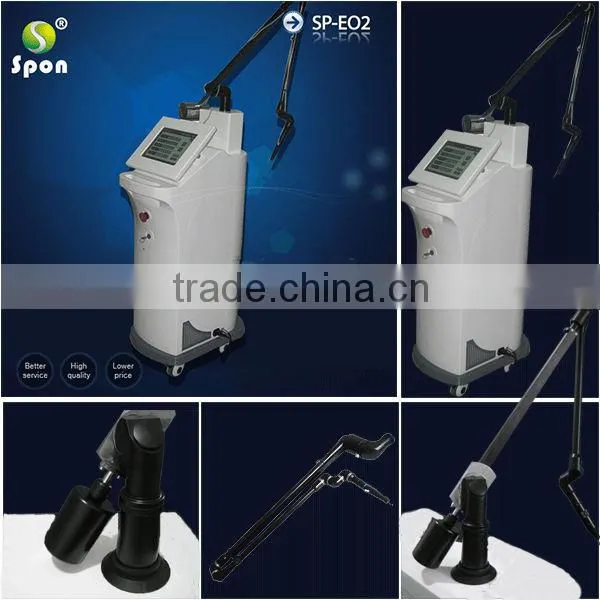

6. About the ND:YAG Laser System Accessories

ND:YAG LASER Handpiece
1.Q switch type : EO active Q switch technology 2.Spots Size: 2mm-10mm diameter 3. Wavelength : 532nm; 1062nm;585nm;650nm 4. Pulse Width : 6ns 5.Handle Probe Cooling: Water+Semiconductor Cooling System 6.Color: black
Applications:
1.Tattoo (black, red, brown, blue, etc.)
2.Pigmented lesions: Sunspot, Ota's nevus, melasma, Age spot, CALMS, Nevus , Zygomatices etc.
3.Laser Facial: skin rejuvenation and Resurfacing, smooth out fine wrinkles and expressionlines,reduce pigmention such as sun spots and freckles, frim up skin tone. Large pore reduction.
4. Effective for skin whitening and tightening, reduced skin elasticity/ dull skin
5. skin renewal: Secure high-speed repair damaged skin
