PPY advanced robotic car parking system for carport

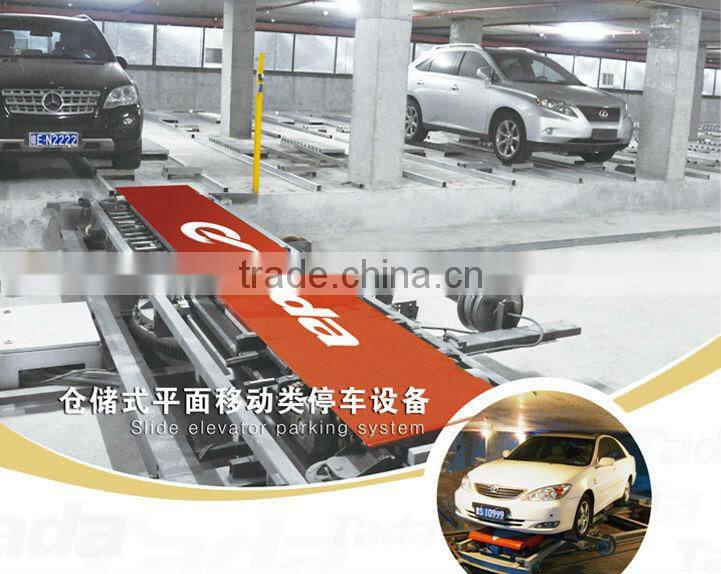

Operating Principle
The carrier is always reciprocating on a surface, the function of storage and conveying is on the carrier. The carrier moves to different surfaces with the help of hoist and horizontal rotary platform.
Video Show
Product's video: /html/video/lititingche_video_37.html
Company's video: http://parkingsystem.en.china.cn/company_profile/video_introdution.html

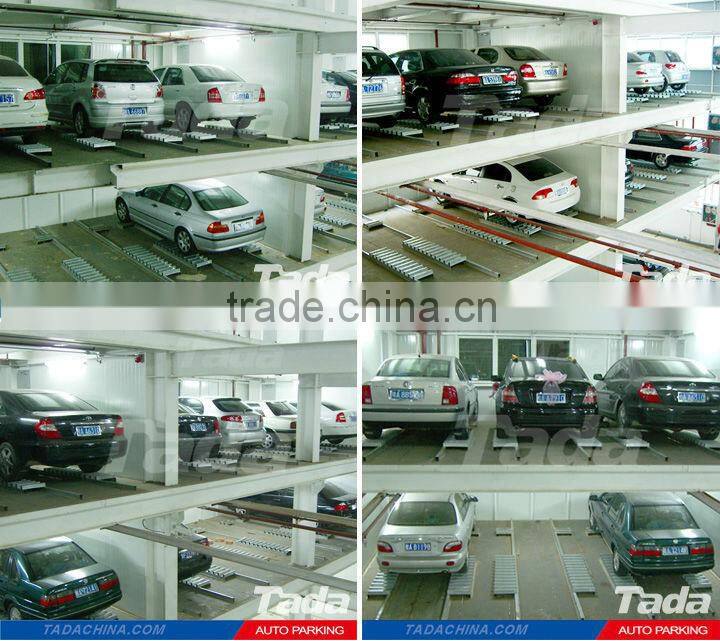

Picture Show
Technical Parameters
Name |
Instruction |
Remark |
Type |
PPY |
|
Parking spaces |
According to the specific project |
Design in accordance with the requirements |
Vehicle size |
5300x1900x1550(mm) |
Design in accordance with the requirements |
Vehicle weight |
2500kg |
3500kg(Max) |
Exchange mode |
Silopark/compark/silomat/pallet |
|
Lifting speed |
Max 2.5m/s |
|
Sliding speed |
0.8-1.5m/s |
Design in accordance with the requirements |
Rotation speed |
2rpm |
Design in accordance with the requirements |
Power supply |
AC380v3Φ50HZ |
|
Application Range
PPY advanced robotic car parking system for carport
(1) The equipment can not only reduce lane area, increase parking density and utilization ratio but also benefit safety, liability, automatic ratio and parking efficiency.
(2) It is mainly divided into single-layer shuttling, single layer (or multi-layer) shuttling, suitable for parking system on the ground, underground and combining parking system.
(3) It is mainly applied to large garage or parking lot.

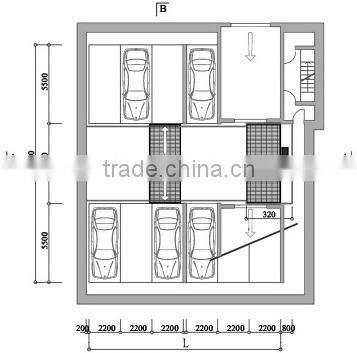

Equipment Structure
PPY advanced robotic car parking system for carport
It is consist of hoist, horizontal platform, comb carrier, storage frame, detector and intelligent inverter controlling system. You can design rotary system according to site conditions to make sure the vehicle can be automatically turned around.

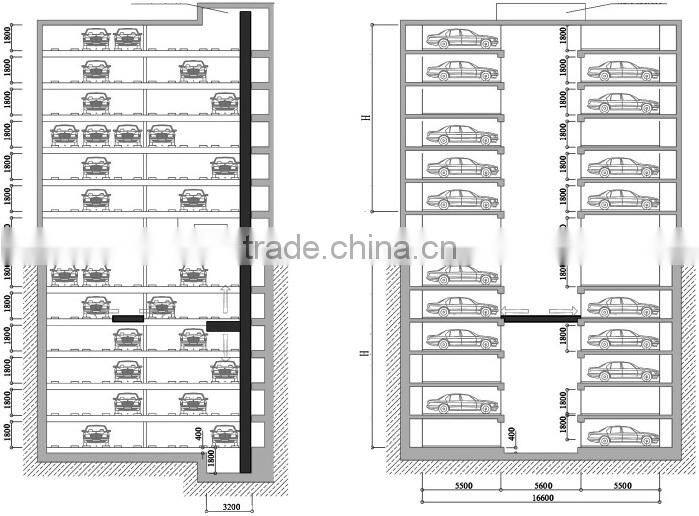

Type & Classification
PPY advanced robotic car parking system for carport
According to the direction of carrying, we classified it into two main types: Vertical and Horizontal. It can be flexibly combined and designed according to site conditions.
USA, Canada, Australia, Russia, Spain,Germany, UK, New Zealand, Brazil, Mexico, Columbia, Thailand and many other countries.
Warranty
Five years for main structure, one year for parts.
During this period, if there is damaged parts because of our quality, after you send us real pictures, we will send you new products for free.
Supplier Assessment
Tada has been assessed by TÜV Rheinland, giving buyers in-depth details and authoritative information about suppliers for free, to help buyers source smarter and safer. Below is the certificate showing.
Trade Assurance
The registered capital of Tada almost 30 million USD, is the largest parking system company of China. Tada has assigned Alibaba a Trade Assurance Limit for covering buyers,so your rights can be well protected.
Technical Patents
The Europe R & D Center
The Europe R&D Center of Tada located beside of beautiful Lake Lugano in Switzerland, and many top parking experts of the world had joined in IT. The technology strength is abundant and had invented the third generation silomat intelligence carrying system and monitor system. Which had more than 30 intellectual properties. This system had widely used in Athens' Olympics Games (more than 1000 carports).
Main Material
Shan Steel Group is one of our shareholders, ranking the 88th on the list of the China's top 500 enterprises, and the 33rd on the list of China’s top 500 manufacturing enterprises. Material of Tada used Hot rolled H-shaped steel was made by Shan Steel Group.
Hot rolled H-shaped steel was awarded the "China famous brand" title, this is also the first steel of famous brand in China metallurgical industry.
Shan Steel and Shagang Group are both Tada’s shareholders. Shan Steel Gr- oup are H-beam steel high-quality goods production bases, and the quality of raw material can be guaranteed.
Production Equipment
Quality Certificate
Company's Honors
Packaging Details
Packaging Details: Standard export packing
Delivery Detail
Delivery Detail: 30-120 days after receiving the deposit
