Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > HOT SALE!!! WOSEN Cycloidal Gearbox Speed Reducer With Good Quality

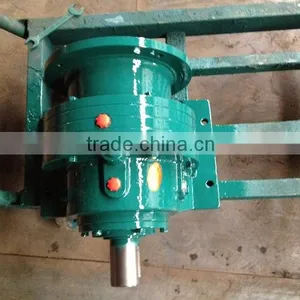

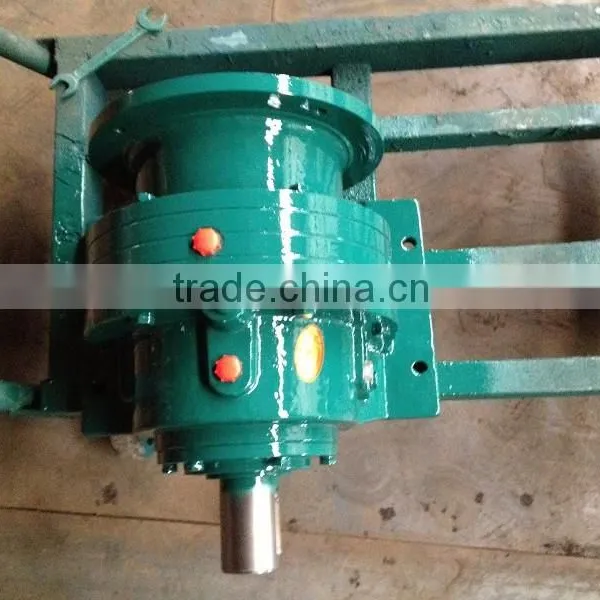

HOT SALE!!! WOSEN Cycloidal Gearbox Speed Reducer With Good Quality

Name: HOT SALE!!! WOSEN Cycloidal Gearbox Speed Reducer With Good Quality
Brand: WOSEN
SKU: 110849983
Availability: InStock

HOT SALE!!! WOSEN Cycloidal Gearbox Speed Reducer With Good Quality thumbnail-1

HOT SALE!!! WOSEN Cycloidal Gearbox Speed Reducer With Good Quality photo-1

US$ 69 - 1,099 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

WOSEN

Model Number:

BWD,XWD,BWY,JXJ,XLD

Contact Supplier Request Quote Chat Now

Hebei Wosen Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name WOSEN

Model Number BWD,XWD,BWY,JXJ,XLD

Gearing Arrangement Cycloidal

Output Torque top to 22920N.m

Rated Power 0.25-90kw

Input Speed 1000or1500r/min

Output Speed 11-167r/min

Features of products: HOT SALE!!! X Series Cycloidal agricultural motor reducer

X series cycloid gear box speed reducer
Planetary Cycloidal pinwheel Reducer is a speedreducing device taking use of planetary
driving principle,engaged by cycloidal pinwheel,with advanced design and novel structure.
The complete driving unit of planet cycloidal pinwheel reducer may be divided into three
parts,input;reducing;output.
The coupled-type reducer may be assembled together with Series Y special motor and
Series Y derived special motor,e.g.YA increased safety motor,YB flame-proof motor,YCT
speed regulating motor,YEJ brake motor,etc,And it may be coupled with standard motors of
various types via motor flange,e.g.Series NEMA,IEC,Y,YA,YB,YEJ,YCT,YD ,ZD motors.
Features
1.Great gear ratio:the gear ratio is 1/7-1/87 by one stage reducing;the gear ratio is 1/99-
1/7569 by two stages reducing;Also can be adopted according to your requirement.
2.High driving efficiency,Small size and light weight,Fewer fault and long service life
3.Reliable and stable operation,Convenient for assembling and disassembling.
4.Strong overload capacity, strong shock resistance and small inertia moment of force,which
is suitable for frequent starting and stopping,and rotating forward and backward.
Gear Box's Usage Field					Gear Box's Usage
1	Metallurgy				1	Agitator
2	Mine				2	Blast fan
3	Machine				3	Hoister
4	Energy				4	Compressor
5	Tomacco				5	Crusher
……					……
Power	0.04kw-75kw
Torque	200N.m-30000N.m
Ratio	Single-Stage 9-87				Double-Stage 121-7569
Color	Chinese Red or as clients' requirement
Material	Nodular Cast Iron or as clients' requirement
Packing	Plywood Carton Box or as clients' requirement
Type	XWD	BWD	BWY	JXJ	XLD	BLD	XWED
	BWED	JXJE	XLED	BLED	JXJELD
Mounting Methods	Foot Installation				Flange Installation
	Various of mortors or double shafts can be equipped
