JINKA JK3525 CNC Router/engraving /cutting Machine for Metal Working Lower Price Higher Quality

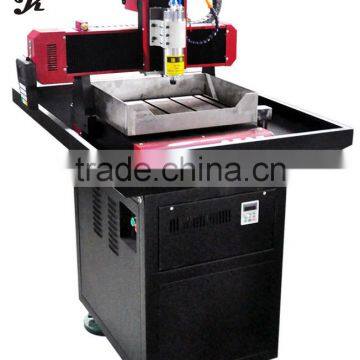

JINKA JK3525 CNC Router/engraving /cutting Machine for Metal Working Lower Price Higher Quality photo-1
US$ 1,200 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
JINKA ZIXU
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Other port as customer request
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Anhui, China
Brand Name JINKA ZIXU
Model Number JK3525
Rated Power 800/1.5/2.2KW
Engraving Speed 5m/min
Main Axle Rotational Speed 0-24000rpm/min
Feeding Height 0-200mm Optional
Milling Cutter Diameter 3.175/4/6mm
Application Metal Materials
Dimensions 500*400mm
Weight 300kgs
Certification ROHS,CE,BV,ISO
Warranty 1Year
After-sales Service Provided Overseas service center available

 JINKA JK3525 CNC Router/engraving /cutting machine for metal working lower price higher quality

CNC router mini engraver  aluminum brass cylinder churck small engraver desktop JK3525B



Character features:

1. adopting casting structure for body, gantry, brackets features better rigidity.

2. fully-closed or semi-closed design.

3. imported rolling ball screw and linear square rail.

4. configured with high-precision and powerful spindle.



Models

JK-3022

JK-3525

JK-4040

Driving system

stepping

stepping

stepping

Table Dimension

300×220mm

350×250mm

400×400mm

Feeding Height

70mm/120mm

70mm/120mm

120mm

Idle Speed

4m/min

4m/min

6m/min

Processing Speed

4m/min

4m/min

6m/min

Spindle

800W~2.2KW Variable Frequency water-cooling

Rotary Spped

6000~24000rpm/min

Working Voltage

AC220V/50Hz

Tools and Blades

3.175/4/6mm

File Format

G code/HPGL

Positioning Precision

±0.03mm

Repositioning Precision

±0.02mm

Control System

Nc Studio

The different size of the machine can be customized by our customers need









Application field:

 Alluminium; Copper; Brass; Jade; Artcrafts; wooden products; advertisings; labels; signs; badges; seals; crystal characters; shoe moulds, panels; gilt plates; PCB plates; indentation plates; metal and plastic plates.



 JINKA JK3525 CNC Router/engraving /cutting machine for metal working lower price higher quality

Options:



Spindle Power:800W /1.5KW /2.2KW



Spindle Brand:LINNAN / HANQI /SHANGKE



Spindle Specification: General/Lengthened/Constant Torque



Spindle Type:Water-cooling/Air-Cooling



Control System: Nc Studio/Nc Studio(advanced)/DSP/Four-axis-three linkage+ handle



Servo system:Panasonic/Yaskawa/Domestic Servo( Estun/Showmotion )/Leadshine



Stepping Motor:Leadshine/CW
