Specifications
1. Railway rubber pad2.Function:low-frequency vibration isolation
3.High strength
4.ISO9001:2008

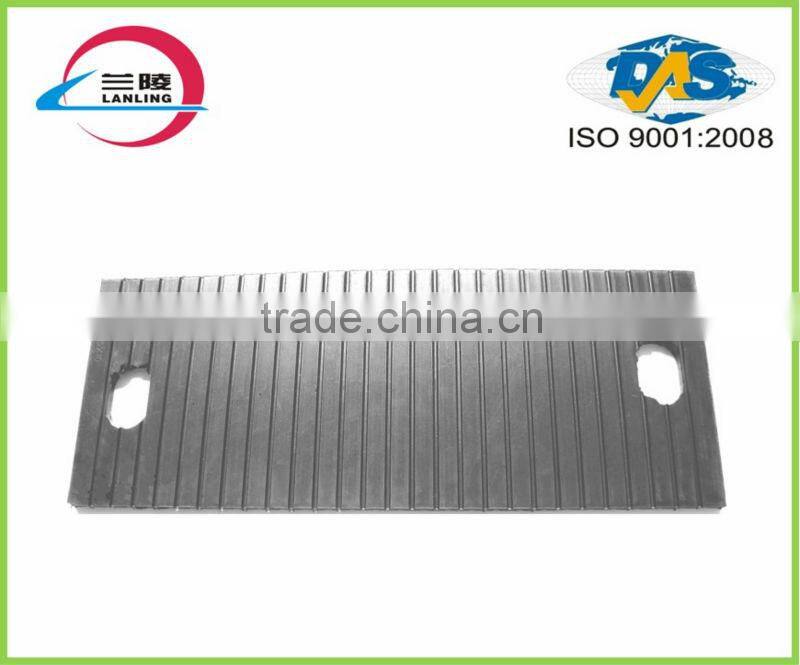

Loading weight 60kg grooved railway rubber pad
Application:
This kind of railway rubber pad rubber pad used on Channel Sleepers on Bridges, Turnouts, Rail Expansion Joints and running rails tracks . it's can impact the energy and ease the impact on the primary purpose of the role of the rubber products. dynamic stiffness is greater than the static stiffness, helps to reduce the impact of deformation .
Technical data :
| Performance | Standard | Test report |
| Materials | Synthetic rubber (SBR) | Synthetic rubber (SBR) |
| Dimension | 761 X175 X 10 CM (L X W X H) |
761 X175 X 10 CM (L X W X H) |
| Hardness shore A | 72-82 degree | 75 degree |
| Operating resistance | ≥106 Ω | 3.4×1010 Ω |
| Tensile strength | ≥12.5 Mpa | 14.6 Mpa |
200% fixed stretch tension |
≥9.5 Mpa | 10.8 Mpa |
Elongation at break |
≥250 % | 263 % |
| Akron abrasion loss | ≤0.6 cm3/1.61km | 0.5 cm3/1.61km |
|
Constant compression permanent deformation (100°c, 24 h, 50%) |
≤30 % | 25 % |
Packing and loading picture
Production Machine
Honor Certificate
We have the experiences in manufacturing railway products more than 20 years .we export railway fasteners to all over the world,I believe you will feel satified to choose us !
Welcome to provide us the drawing draft. Anyway please feel free to contact with us.
