CBN Tipped Inserts (CNGA with 4 cutting edges)
- 10000 Piece / Pieces per Month
- Zhengzhou
- ZCC DNMG YBG205 DNMG150404-EF Carbide Inserts CNC Turning Tool Lathe Cutter Tools
- CNC Lathe Turning Tools Turning Carbide Insert TNMG Series stainless steel processing TNMG160404/160408-EF YBG205 inserts
- Threading insert 22ERN60A CNC turning tool cemented carbide insert RP9125B
- Machine Lathe Tool External Cutting Tools CNC MWLNR/L Carbide Turning Holder MWLNR3232P08 MWLNL3232P08
- MTJNR2525 External Turning Tool Holder TNMG Carbide Inserts CNC Lathe Cutting Tools
- P30 YG6 YT5 Tungsten Cemented carbide tips A25 B25 A20 B20
Product Details
Place of Origin: | Henan, China | Brand Name: | FUNIK | Model Number: | CNGA |
Material: | Other | Usage: | External Turning Tool | Coating: | No |
Product Description

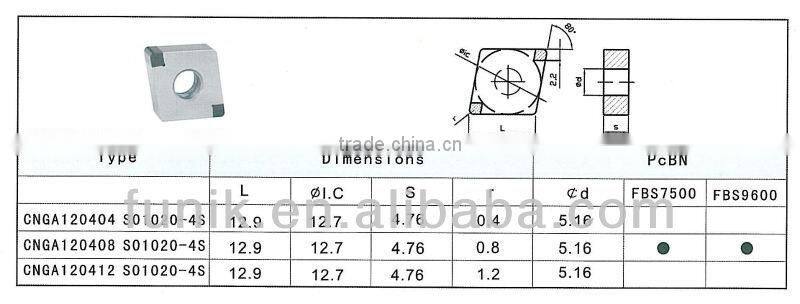

CBN Tipped Inserts (CNGA with 4 cutting edges)
ISO14001, ISO18001, BS-OHSAS18001
FUNIK PCBN Cutting Tools Advantages:
1) All the micron powder used for CBN inserts production are produced by ourselves, so that we could make sure the consistant quality and more competitive price.
2) FUNIK tool with whole welded solid PcBN tip pioneered by FUNIK has higher welding strength, higher resistance to high temperature, more cutting edges and higher cost performance.Superior to the one-side welded polycrystalline compact structure of normal brazing.
FUNIK CBN Inserts Grade
FBS7000:
1) Optimum the wear resistance and chipping resistance, used for high speed continous turning.
2) Suit for rough machining and semi-finishing of high-hardness alloy cast iron, high nickel chromium, high chrome iron and other materials.
3) Suit for rough machining and semi-finishing of gray cast iron and nodular cast iron.
FBS7500
1) Excellent wear resistance and heat resistance, used for high-speed continuous turning and milling
2) Suit for semi-finishing and finish machining of alloy cast iron, high nickel chromium, high chrome iron and other materials.
3) Suit for semi-finishing and finish machining of gray cast iron, nodular cast iron, and other materials.
FBS9500
1) Excellent wear resistance and heat resistance, uesd for hihg speed continuous turning and milling
2) Suit for semi-finishing and finishing of quenching workpieces, such as bearing steel, die steel, gauge steel, tool steel, high-speed steel and other materials.
FBS9600
1) Excellent wear resistance and heat resistance, used for super-speed continous turning and milling.
2) Suit for finishing anf super-finishing of quenching workpieces, such as bearing steel, die steel, gauge steel, tool steel, high-speed steel and other materials.
Delivery time: 10-15days
Package: According to customers' requirements(Plastic boxes/paper carton)
FUNIK Service Commitment
We will always take value creation for customer as our task.
We make a commitment that all products can be unconditionally changed or refunded within a year.
