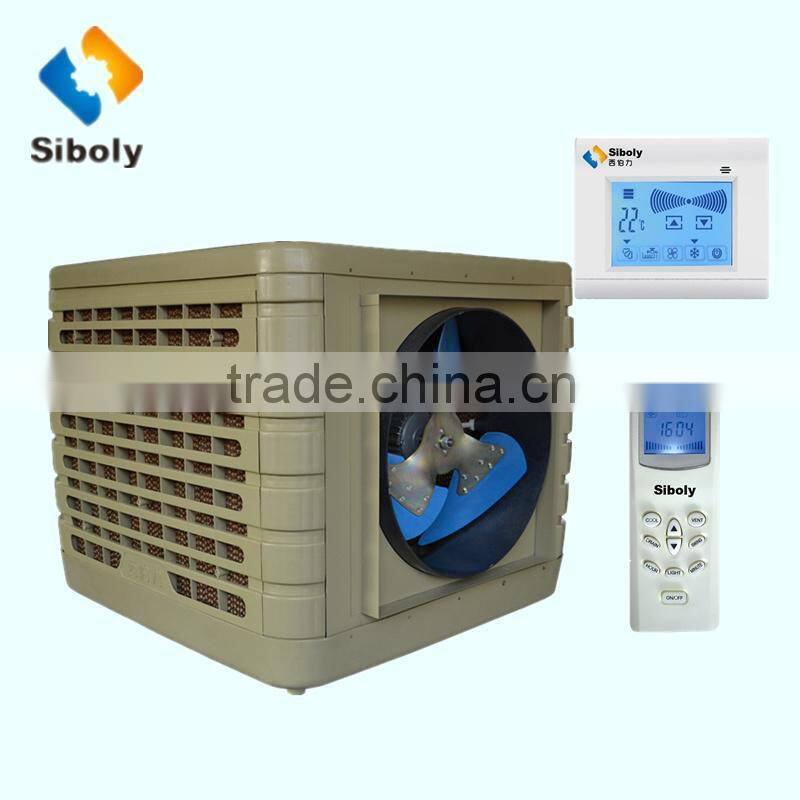

2015 New! ducting cooler window/ roof/ wall mounted air cooler
Through air exhausting by fan,producing negative pressure in the cooler,and at the same time water pump transports water to the water distributor,the surface of wet curtain is full of water.Moreover,for the special angle of wet curtain,water flows directly to the side of air inlet,absorbing a lot of quantity of heat in the air when the hot air is through the wet curtain full of water,reducing the air temperature through wet curtain,and filtering the air,making the wind blowing cool,humid and fresh.The water not evaporated falls back to the sole plate,forming water route cycle.
Type |
XZ31-18X-2 |
XZ31-18S-2 |
Airflow(m3/h) |
18000 |
18000 |
External Dimension (mm) |
1100*1100*920 |
1100*1100*950 |
Outlet Dimension(mm) |
670*670 |
670*670 |
Net Weight(kg) |
73 |
73 |
Power Supply(v/hz) |
380/50 |
380/50 |
Power Consumption |
1.1kw |
1.1kw |
Water Capacity(L) |
40 |
40 |
Water Consumption |
15-20 |
15-20 |
Effective Area(m2) |
80-120 |
80-120 |
Controler |
touch screen control and luxury remote control | touch screen control and luxury remote control |
Auto Fan Type |
axial |
axial |
Noise |
≤70 |
≤70 |
Speed |
1speed |
1 Speed |
Evaporation Efficiency |
85% |
85% |
Outlet |
Down |
Up |
Casing |
Standard |
Standard |

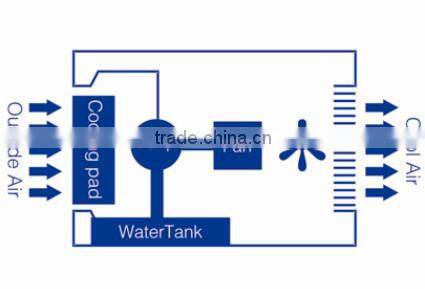

The 3-step air cooling process is very simple and no less effective than morden refrigerated air conditioning technologies.
Step-1:
An air moving system pulls fresh outside air and drives it through the moist cooling pad.
Step-2:
The water in the pads evaporates, bringing down the temperature of the air passing through the cooing pads.
Step-3:
Then blows the cool 100% fresh air into the room.
(1)How about the warranty of the air coolers?
1-2 year warranty for the whole machine.
(2)What are the differences between air coolers and air conditions?
| Parameters | Air cooler | Air Conditoner |
| Capital Cost | Low | High |
| Recurring cost | 90% lower than AC | Very high |
| Indoor Air Quality | 100% Fresh Filtered Cool Air | Stale Dry Air Re-circulated |
| Refrigerants | Water | Polluting Refregerants |
| Maintenance | Simple & Cost Effective | Complex & Expensive |
| Portability | Yes | No |
| Usage | Outdoor & Indoor | Indoor Only |
| Emission | Eco-friendly | Environmentally Harmful CFC |
| Carbon Emissions | Nil | Very high |
If interst, pls feel free to contact me, Thanks
