New Arrival Energy Saving Evaporative Air Cooler Without Water/Industrial Air Conditioner

Name: New Arrival Energy Saving Evaporative Air Cooler Without Water/Industrial Air Conditioner
Brand: Siboly
Availability: InStock

FOB Price

US$ 480 - 600 / Set

5 Sets(Min. Order)

Port Fuzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Evaporative Air Cooler
Place of Origin	Fujian, China	Brand Name	Siboly
Model Number	XZ10-20S-1	Operating Voltage	230 VAC
Mounting	Wall / Window Mount	Certification	CE
After-sales Service Provided	No overseas service provided

Product Description

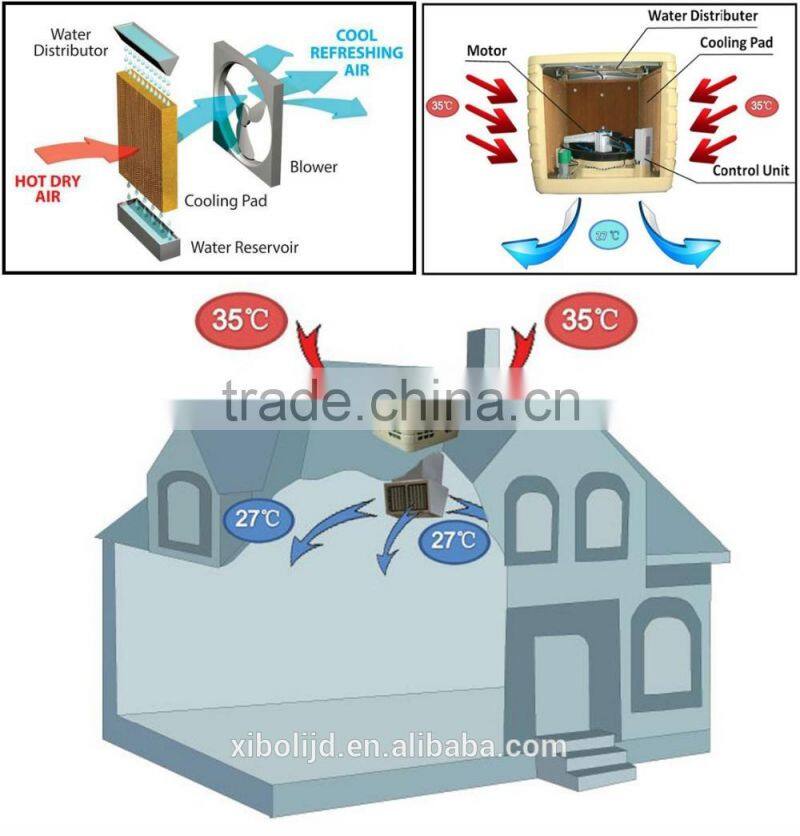

Siboly Evaporative Air Cooler Principle

Siboly evaporative air cooler is a device that cools air through the evaporation of water. Evaporative cooling differs from typical air conditioning systems which use vapor-compression or absorption refrigeration cycles. Evaporative cooling works by employing water's large enthalpy of vaporization. The temperature of dry air can be dropped significantly through the phase transition of liquid water to water vapor (evaporation), which can cool air using much less energy than refrigeration. In extremely dry climates, evaporative cooling of air has the added benefit of conditioning the air with more moisture for the comfort of building occupants.

Compare with other Cooling or Ventilation Devices

Type	Evaporative Cooler	Traditional AC	Centrifugal Fan	Ceiling Fan
Capacity	20000 CMH	400 BTU/hr	40 CMH	1400 mm.dia
Power (kw)	1.5	54	7.5	0.075
Effective Area (Sqm)	1000	1000	1000	1000
Air Change per hour	30	0	30	0
Units Required	6	2	3	83
Total Consumption (kw)	9	108	22.5	6.2
Electricity Cost Per Year (kwh) (10 hrs, 365 days)	32850	394200	82125	22721
Cost Ratio	8.33 %	100 %	20.83 %	5.76 %

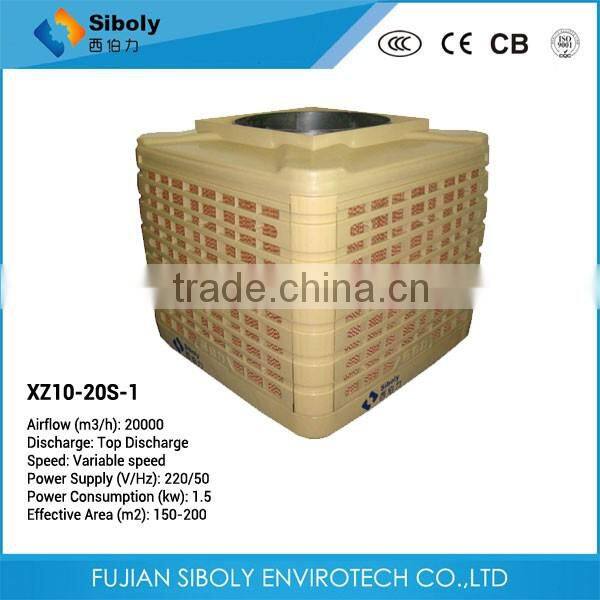

SPECIFICATIONS FOR XZ10-20S-1
Airflow (m³/h)	20000
Air Pressure (Pa)	235
Fan Type	Axial
Speed	Variable speed
Noise (dB)	≤ 68
Effective Area (m²)	150-200
Evaporation Effiency (%)	85
Water Capacity (L)	40
Power Supply (V/Hz)	220/50
Power Consumption (kw)	1.5
Controller	LCD Touch Screen and Remote Controller
Net Weight (kg)	78
Dimension (mm)	1100×1100×1030

Main Features

1) Cools an area up to 200m²;

2) Energy saving design, operation costs is about 10% of traditional Air conditioner;
3) Large airflow, 20000 CMH with variable speed;
4) High quality cabinet using PP with UV protection;
5) LCD Touch Screen and Remote Controller;
6) Top / Down discharge models available;

7) Easy installation and maintenance;
8) OEM acceptable.

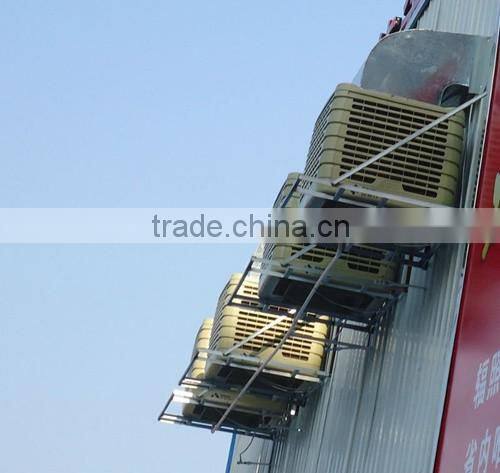

Detailed Images

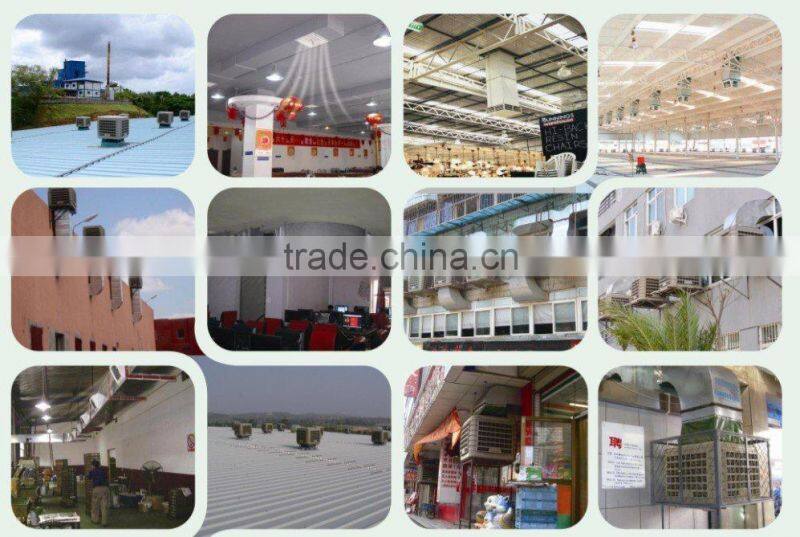

Success Cases

Packing & Delivery

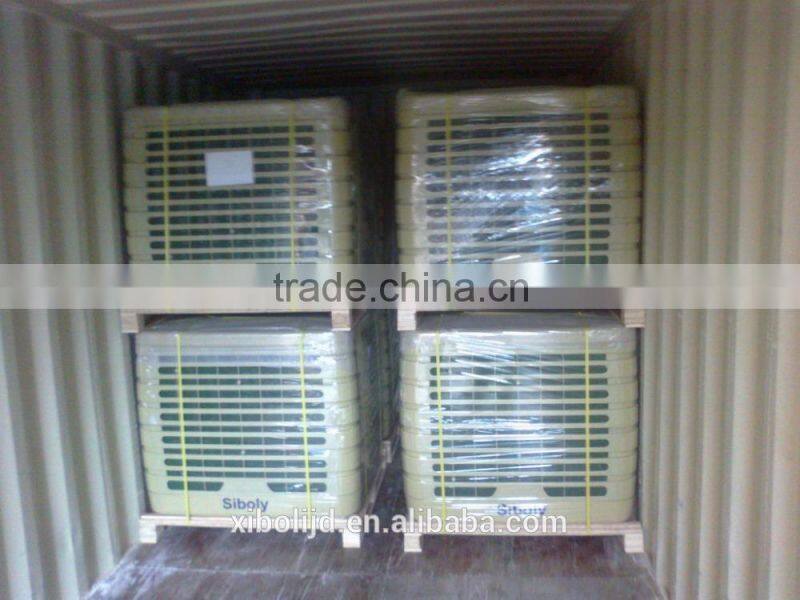

Complete Unit Packing

20GP: 20 units
40HQ: 44 units

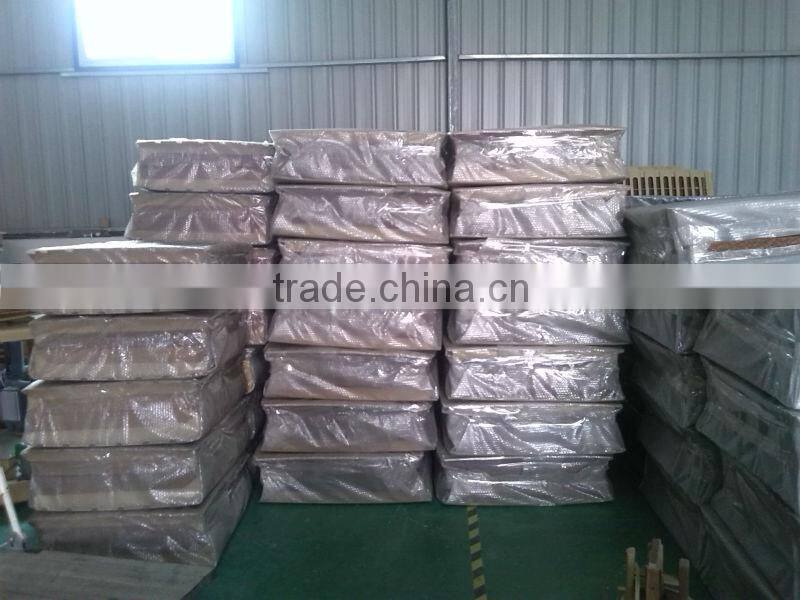

SKD Packing

20GP: 33 units

40HQ: 67 units

Delivery

Within 10 working days after receiving of deposit or LC at sight.

Exhibitions

Certifications

Contact

Faith Zhong

TEL: +86-591-23533555
Skype: evaporative-cooler
Mail: sales07(at)
