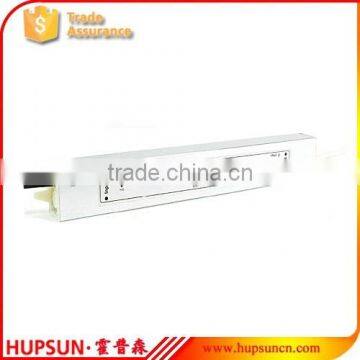

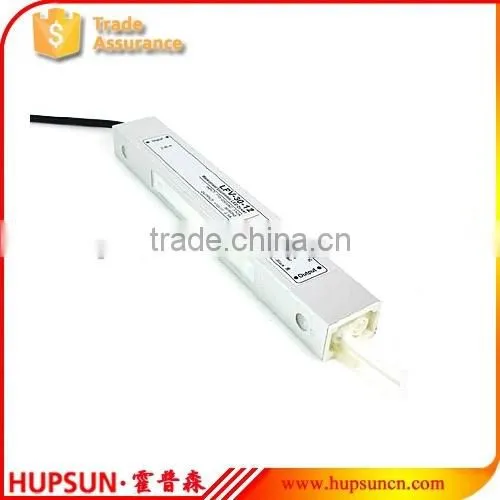

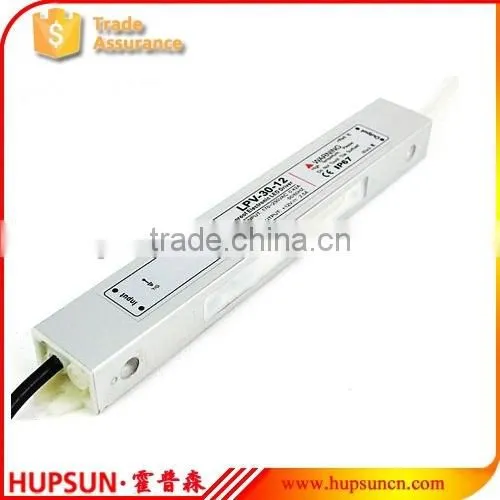

High quality LPV-30 fonte 30w 220v ac to dc 12v 15v 24v led driver IP67 SMPS waterproof LED power supply source
OEM welcome
Low price and high reliability
105Celsius degree output capacitor
Universal AC input
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With short-circuit and overload protection
Compact size,light weight
100% full-load burn-in test
Install with EMI filter,minimum wave
Model&Specification |
LPV-30-12 |
LPV-30-15 |
LPV-30-24 |
DC Output voltage |
12V |
15V |
24V |
Rated output current |
2.5A |
2A |
1.25A |
Output current range |
0~2.5A |
0~2A |
0~1.25A |
Error |
+-5% |
+-5% |
+-5% |
Wave and noise(Note:3) |
100mVp-p |
100mVp-p |
150mVp-p |
DC output power |
30W |
30W |
30W |
Efficiency |
83% |
83% |
83% |
Adjustable range for DC voltage |
+-10% %+- |
+-10% |
+-10% +-5% |
AC input voltage range |
100~250VAC ,47~63Hz,240~370VDC |
||
Input current Input current |
0.42A/230V |
||
AC Inrush current |
Cold-start current 30A/230V |
||
Leakage current |
<0.5mA/240VAC |
||
Overload protection |
115%-135% Type: hiccup mode Reset: auto-recovery |
||
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each axes |
||
High-temperature protection |
≥105centigrade degree hiccup mode,Reset: auto-recovery |
||
Water level |
IP67 |
||
Setup, rise, hold up time |
200ms 100ms 30ms |
||
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||
Isolation resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
||
Working temperature and humidity |
-10centigrade degree~+60centigrade degree,20%~90%RH |
||
Overall dimension |
222*30*20mm |
||
Weight |
0.28Kgs |
||
Note |
1. The parameter under the testing condition : 230vAC input ,rated load,25centigrade degree70% RH. Temperature. |
||
