RTT7101H Top Selling Low Price Auto Relay, Universal Auto Relay 12V 30A Quality Choice
US$ 0.32 - 0.58
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Voltage:
Other, 12v, 24v
Rated Current:
40A
OE NO.:
1912
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Type Auto Relay 1Z 5PIN 12V SPDT Auto Relay 50AUS$ 0.32 - 0.58MOQ: 500 Pieces -
RTT7101E 1A 1B 1C 1U Contact Form Non Water-proof 12V 24V Auto Relay 30AUS$ 0.32 - 0.58MOQ: 500 Pieces
-
40A 5PIN SPDT 1Z Auto Timer Relays 12VUS$ 0.32 - 0.58MOQ: 500 Pieces
-
General Auto Parts 12 Volt Auto RelaysUS$ 0.32 - 0.58MOQ: 500 Pieces
-
Relay Manufacturer 12v Universal Relay,toyota Relay, Honda Auto Relay, VW Auto RelayUS$ 0.32 - 0.58MOQ: 500 Pieces
Voltage
Other, 12v, 24v
Rated Current
40A
OE NO.
1912
Car Make
General motorcycle types
Place of Origin
Zhejiang, China
Brand Name
HUPSUN
Model Number
JD1912
Warranty
1 Years
RTT7101H top selling low price auto relay, universal auto relay 12V 30A
Feature:
40A switching capability

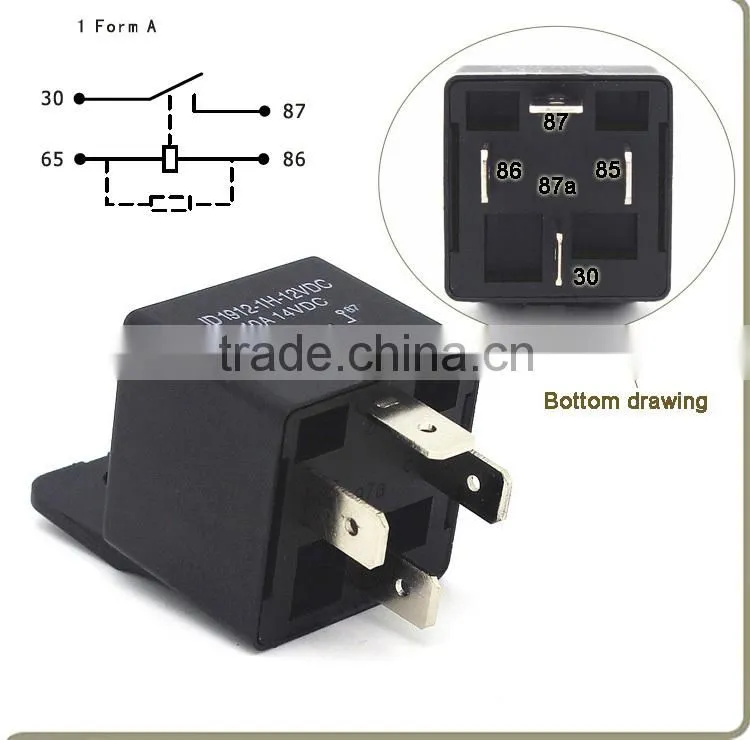

1Form A & 1 Form C contact arrangement
Coil voltage: 12VDC, 24VDC
Various mounting terminals available
Plastic sealed and dust protected types available
Product Description
| Contact arrangement | 1A , 1C |
| Contact resistance | 100mΩ (1A 24VDC) |
| Contact material | AgCdO, AgSnO |
| Contact rating(Res.load) | 40A 14VDC NO 40A 14VDC/NC 30A 14VDC |
| Max. switching power | 560W |
| Max. switching voltage | 30VDC |
| Max. switching current | 40A |
| Mechanical endurance | 1*107OPS |
| Electrical endurance | 1*105OPS |
| Insulation resistance | 100mΩ (500VDC) |
| Dielectric strength between coil&contacts | 750VAC 1min |
| Dielectric strength between open contacts | 500VAC 1min |
| Operate time(at nomi.volt) | 10ms max. |
| Release time(at nomi.volt) | 10ms max. |
| Shock resistance functional | 98m/s2 |
| Shock resistance destructive | 980m/s2 |
| Vibration resistance | 10Hz - 55Hz 1.5mm DA |
| Humidity | 98% RH, 40°c |
| Ambient temperature | -55°c - 85°c |
| Termination | QC, PCB Terminal |
| Unit weight | Water-proof cover: approx 55g, Other: approx 35g |
| Construction | Plastic sealed, Dust protected |
| Rate voltage VDC | Pick-up Voltage VDC | Drop-out Voltage VDC | Coil Resistance *(1±10%)Ω | Parallel resistance *(1±5%)Ω | Equivalent resistance Ω | Power consumption W | |
| Water-proof cover | 12 | 7.2 | 1.2 | 90 | 680 | 79.5 | 1.6 |
| Water-proof cover | 12 | 7.2 | 1.2 | 90 | --- | --- | 1.8 |
| Water-proof cover | 24 | 14.4 | 2.4 | 360 | 2700 | 317.6 | 1.6 |
| Water-proof cover | 24 | 14.4 | 2.4 | 360 | --- | --- | 1.8 |
| Other | 12 | 7.8 | 1.2 | 85 | 680 | --- | 1.7 |
| Other | 12 | 7.8 | 1.2 | 85 | --- | 75.6 | 1.9 |
| Other | 24 | 15.6 | 2.4 | 350 | 2700 | --- | 1.6 |
| Other | 24 | 15.6 | 2.4 |
350 | --- | 309.8 | 1.9 |

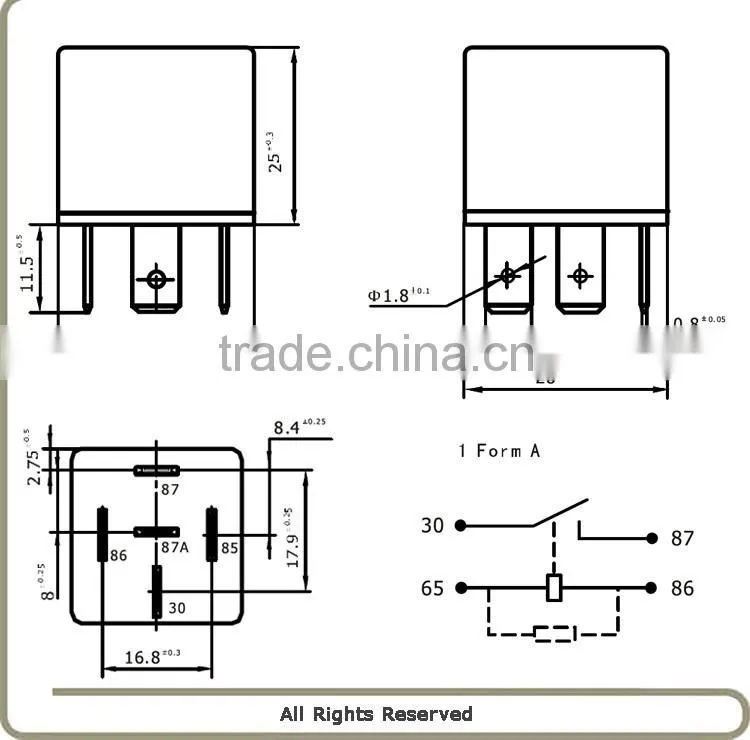

Product Pictures:
