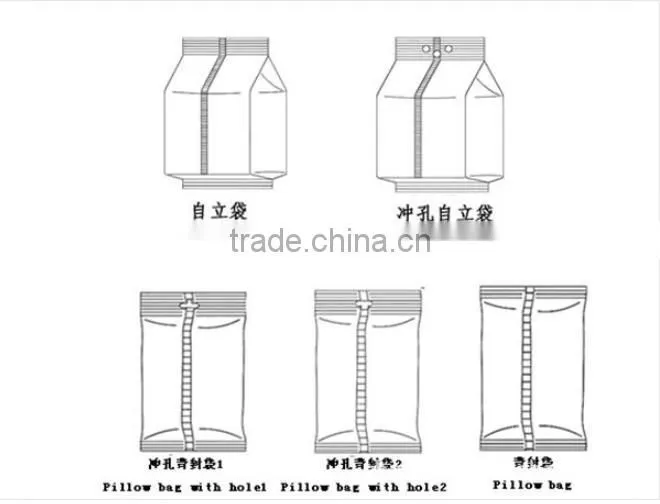

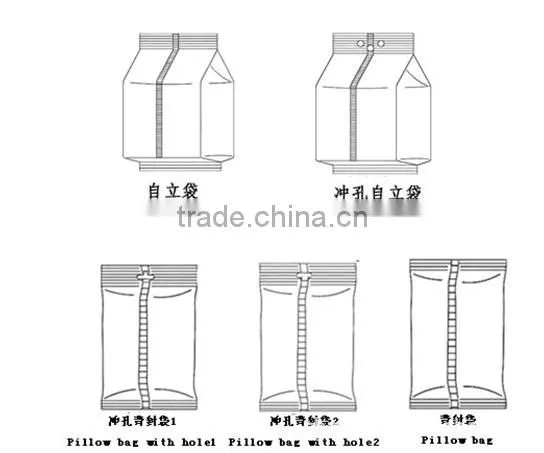

Some packing samples:
1. Scope of application
Suitable for packing various big-size bag with gusset, such as biscuit, pies, chocolate, bread, instant noodles, moon-cake, dug, daily appliances, industrial parts and etc.
2. Features
a. Dual frequency conversion control, bag length can be set and cut in one step, save time and film.
b. Interface features easy and quick setting and operation.
c. Self failure diagnosis, clear failure display.
d. High sensitivity photoelectric eye color tracing numerical input of cutting/sealing position for extra accuracy.
e. Positioned stop function without sticking knife or wasting film.
f .Temperature independent PID control, more suitable for packaging different materials.
g. Simple driving system, reliable working, convenient maintenance.
h. All control realized through software, easy for function adjusting and technical upgrade.
The machine can be equipped with mixed gas, nitrogen, gusset device, pressing bar, brooming and production date system according to clients’ packing requirements.
3. Origin of each components
Touch screen: Siemens/Germany Switch series: Schneider/French
PLC controller: Siemens/Germany Module: Siemens/Germany
Motor: Tongtai/ Kunlun Inverter: Schneider/French
Relay: Omron/Japan Date printer: Dikai/Shanghai
Solid phase: Schneider/French Photo-sensor: SICK/Germany
4. Technical specification
Packing speed | 40-200 bag/min |
Bag size | L(120-280)*W(50-160)*H(3-45)mm |
Max outer diameter | < 300 mm |
Max width of the packing film | 350mm |
Packing film thickness | 0.04-0.07mm |
Machine size | (L)4020*(W)745*(H)1450 |
Total power/voltage | 2.75KW/220VAC |
Gross weight | 900KG |
Remarks | optional air filling device |

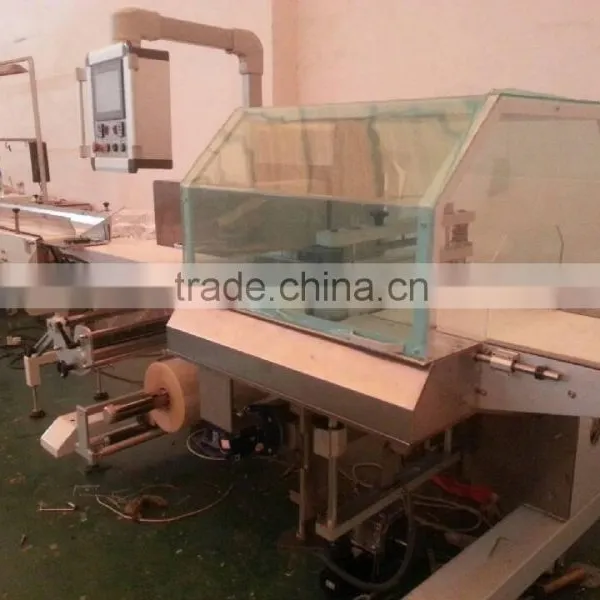

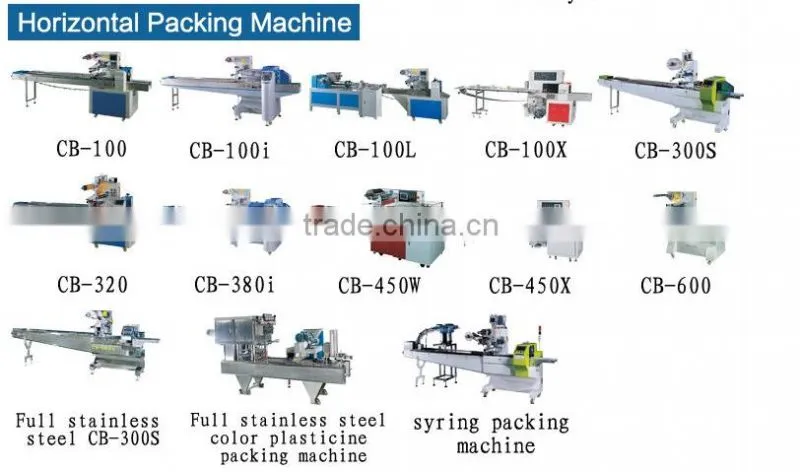

Some similare packing machines;

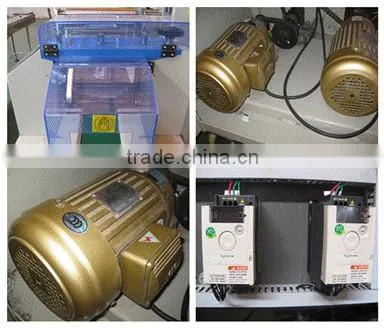

Some spare parts of our machine:
Some certification:
Our Customer and us:

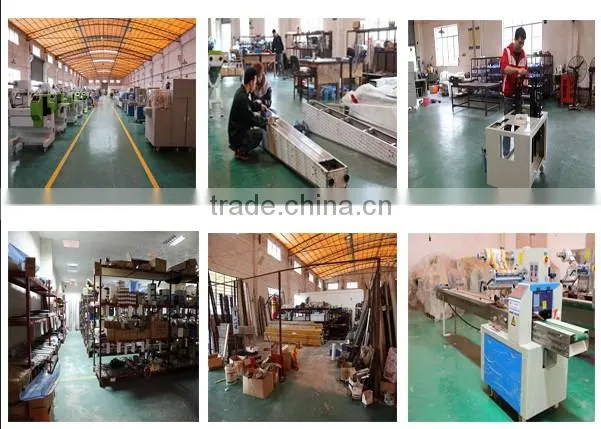

Our Factory:
Our office:

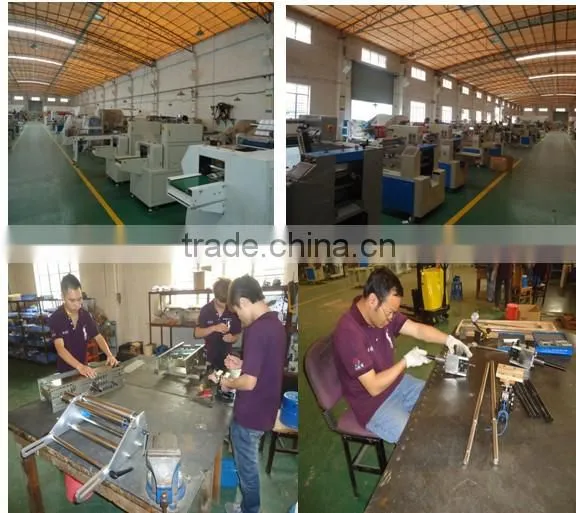

Our workshop:
Wooden case:
Our packing bag:
