Wholesale Durable Top Quality 60w Led Power Supply Manufacturer, Electric Recliner Power Supply

Model&Specification

S-60-5

S-60-12

S-60-15

S-60-24

DC Output voltage

5V

12V

15V

24V

Output voltage range(Note:2)

±2%

±1%

±1%

±1%

Rated output current

12A

5A

4A

2.5A

Output current range

0~12A

0~5A

0~4A

0~2.5A

Wave and noise(Note:3)

100mVp-p

75mVp-p

75mVp-p

75mVp-p

Inlet stability(Note:4)

±0.5%

±0.5%

±0.5%

±0.5%

Load stability(Note:5)

±1%

±0.5%

±0.5%

±0.5%

DC output power

60W

60W

60W

60W

Efficiency

73%

78%

78%

82%

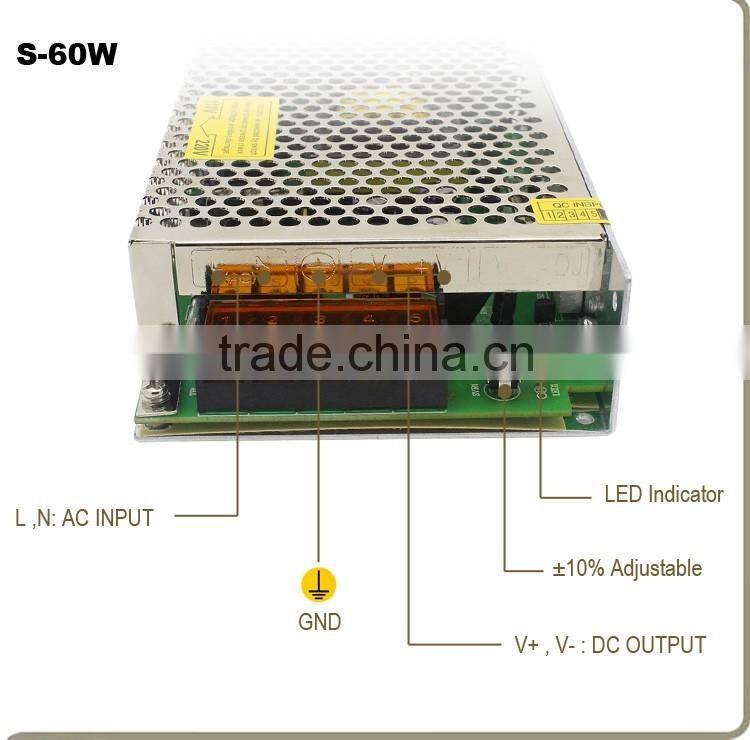

Adjustable range for DC voltage

+10,-5%

±10%

±10%

±10%

AC input voltage range

85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC

Input current

2A/115V 1A/230V

AC Inrush current

Cold-start current 30A/115V 60A/230V

Leakage current

<3.5mA/240VAC

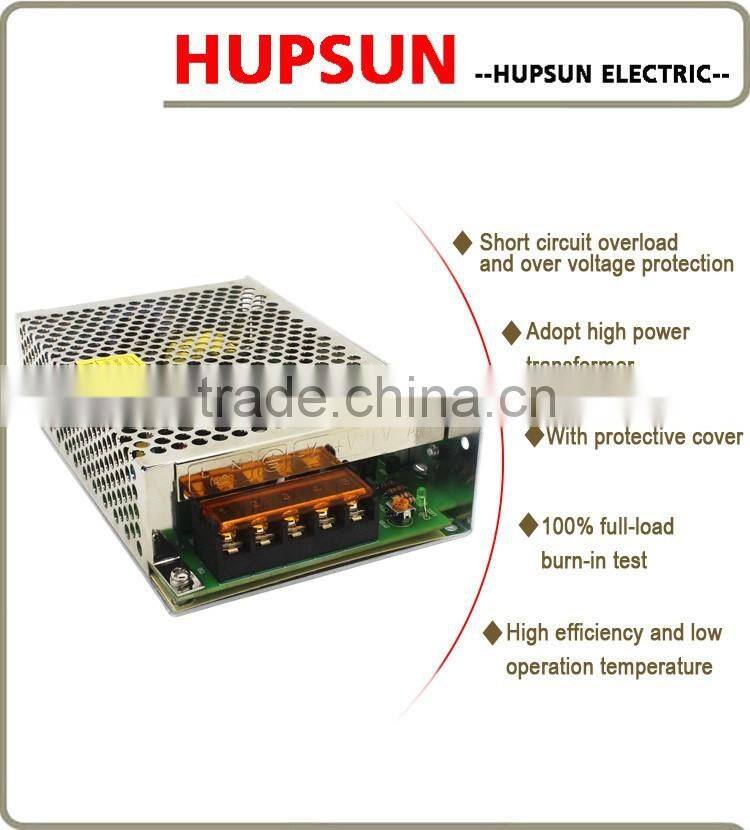

Overload protection

105%-150% Type: pulsing hiccup shutdown Reset: auto recovery

Temperature coefficient

±0.03%/°C(0~50°C)

Setup, rise, hold up time

800ms, 50ms, 10ms/150V 300ms,50ms,80ms/230v

Vibration

10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Working temperature and humidity

-10°C~+60°C(Refer to output load derating curve),20%~90%RH

Store temperature and humidity

-20°C~+85°C,10%~95%RH

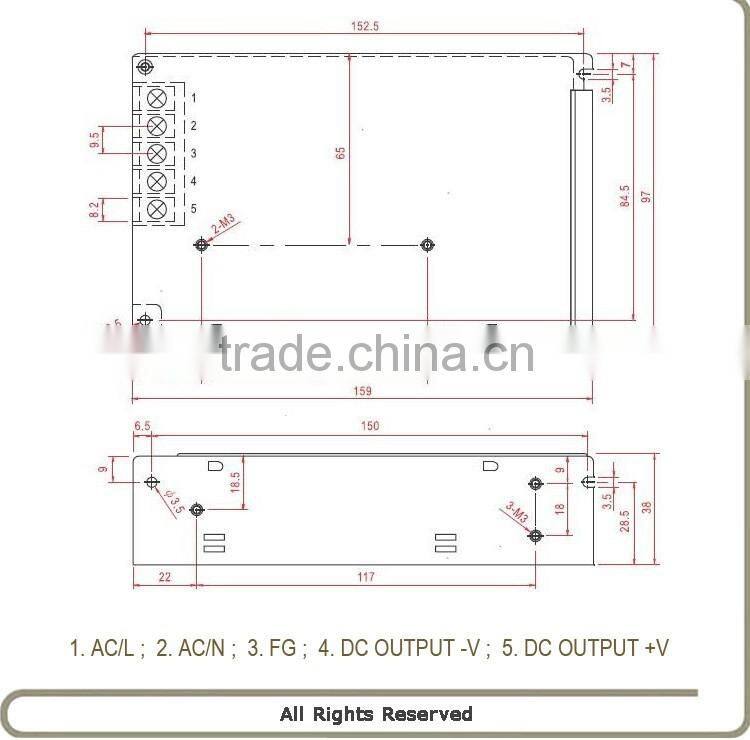

Overall dimension

159*97*38mm (L*W*H)

Weight

0.55kgS

Safety standards

UL 1012 TUV EN6050(IEC,ul1950)Approved

EMC standards

CISPR22(EN55022),IEC801-2,3,4 IEC555-2Verification

Note

1. The parameter under the testing condition : 230vAC input ,rated load,25°C70% RH. Temperature.

2. Tolerance the setting tolerance, circuit stability and load stability.(Note:5).

3. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.

4. Inlet voltage stability test : the lowest voltage will be up to the highest voltage when the circuit overload.

5. Load stability test: The load is from 0% to 100%.
