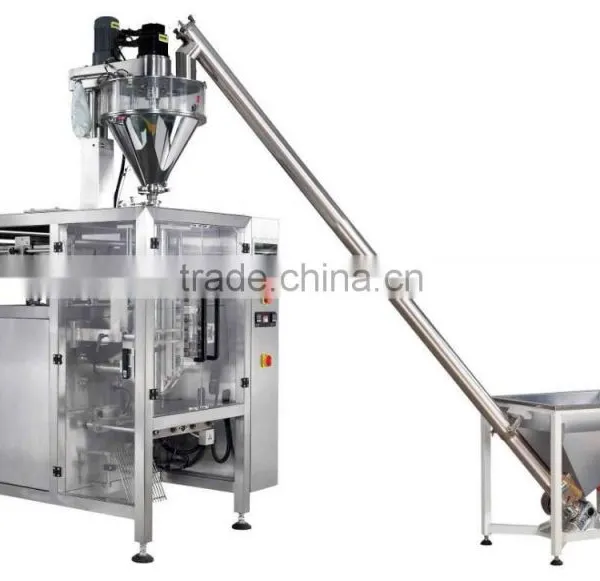

Vertical Automatic Powder Packing Machine For Icing Sugar
- Free consultation service before, during, and after sales;
- Free project planning and design services;
- Free debugging of equipment until everything is functional;
- Free management of equipments' long distance shipping;
- Free training of equipment maintenance and operating personally;
- Free new production techniques and formulas;
- Provide 1 year complete warrantee and lifetime maintenance service

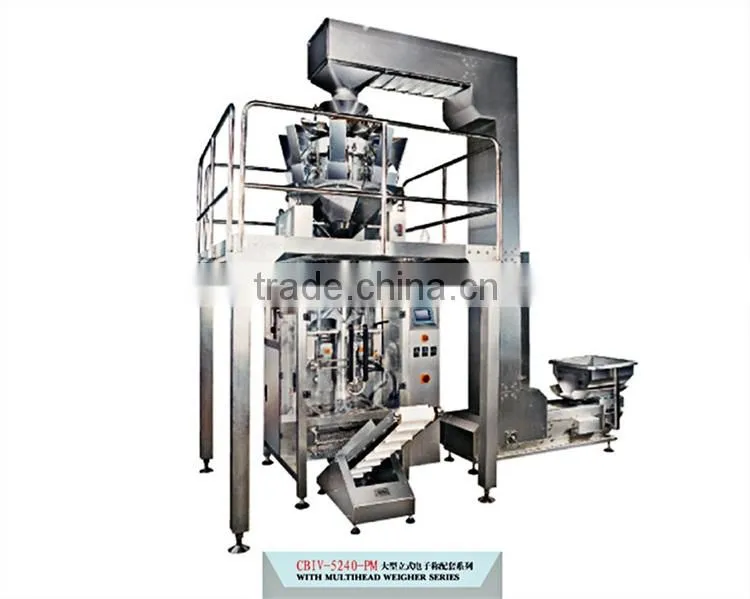

10 Heads 14 Heads Automatic Weighing Cashew Nut Packing Machine
Scope of application:
Suitable for many kinds of measuring equipments,and package different kinds of products ; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed and sugar etc.
which shape is roll, slice and granule.

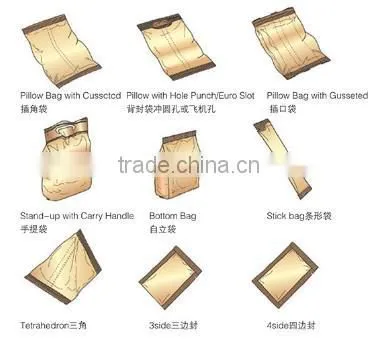

bags style:
Function Description:
- English and Chinese screen display, operation is simple.
- PLC computer system, function is more stable, no need to stop machine for adjusting parameters.
- It can store 10 parameters, simple to change variety.
- Servo motor drawing film, position accurately.
- Temperature independent control system, precision get to ±1℃.
- Horizontal, vertical temperature control, suitable for various of mix film, PE film, packing material, etc.
- Packing type diversification, pillow sealing, standing type, bags-connected, punching etc.
- Bag-making, sealing, packing, print date in one operation.
- Work circumstance quiet, low noise.

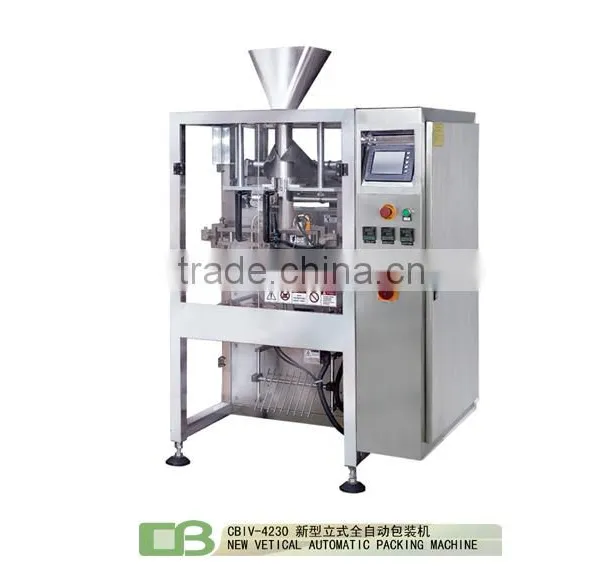

Technical Specifications:
| Model | CBP1-4230 | CBP1-5240 | CBP1-6833 | CBP1-8260 |
| Bag size ( L × W ) | (60-300) × (60-200)mm | (60-300) × (60-200)mm | (60-250) × (60-400)mm | (60-400) × (60-600)mm |
| Max width of roll film | 420mm | 520mm | 680mm | 820mm |
| Packing speed | 5-60bag/min | 5-50bag/min | 5-50bag/min | 5-45bag/min |
| Measuring range | 150-1200ml | 3000ml Max | 6000ml Max | 8000ml Max |
| Packing Material | OPP/CPP OPP/PE PET/PE PE | |||
| Air pressure | 0.65Mpa | |||
| Gas consumption | 0.3m3/min | |||
| Power voltage | 220VAC/50HZ | |||
| Power | 2.2KW | 2.5KW | 3.5KW | 4KW |
| Dimension | (L)1080mm ×(W)1300mm ×(H)1400mm | / | / | / |
| Net weight of machine | 540kg | 650kg | 720kg | 800kg |
Optional device :
Item |
Specification |
Qty(set) |
Main machine |
SS-4230PM |
1 |
10-head weigher |
10 heads |
1 |
elevator |
Z-shape |
1 |
Working platform |
|
1 |
forming |
With the machine |
1 |
Date printer |
Regular |
1 |
conveyor |
130mm |
1 |
Rotary table |
|
1 |

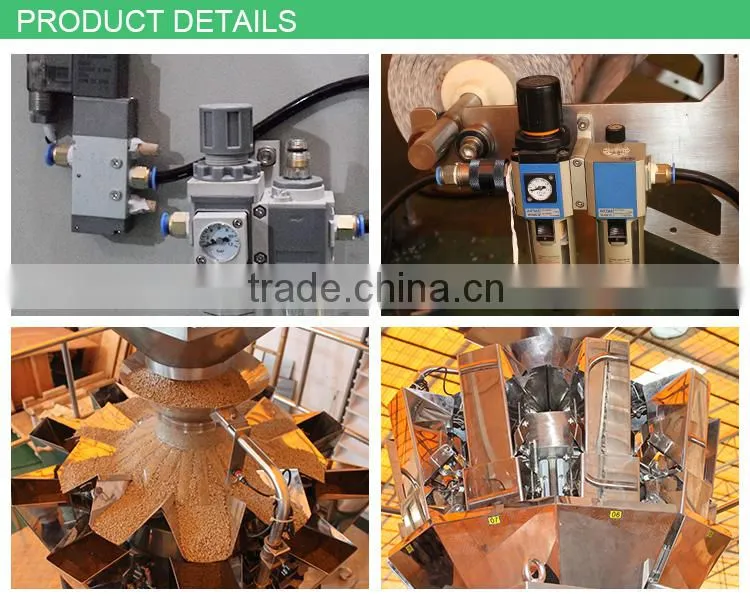

Multihead weigher:
Technical characteristics:
1.High precision data-type weighing sensor realizes precise weighing.
2.IP65 grade water-proof and dust-proof design. It’s clear with all stainless steel parts. Full sealed design prevents accumulation of material.
3.It can fine the opening and closing speed of hopper door according to the feather of items to be weighted, and prevent crushing and blocking of material.
4.With powerful digital automatic counting function.
Technical parameters:
Name |
10-head New-version |
Model |
BO-2/10-2.5 |
Hopper size |
2.5L |
Weighing range |
10-1500g |
Weighing accuracy |
±0.1-1.5g |
Weighing speed |
Max.80bpm |
Structure |
Carbon steel /Stainless steel |
Controller |
10.4” Touch screen |

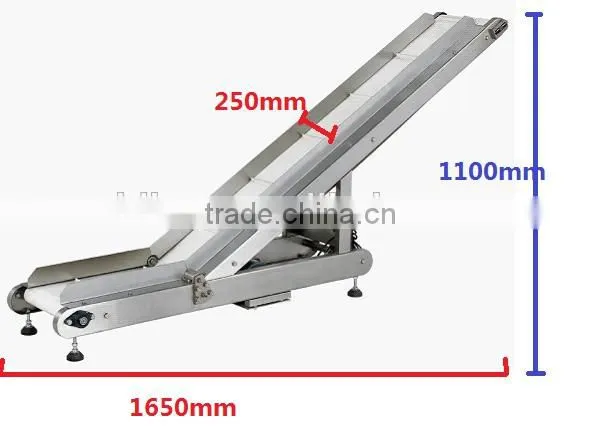

Finished product conveyor
Component list | ||
No. |
Name |
General equipment |
1 |
PLC touch screen |
Siemens /Germany |
2 |
PLC |
Siemens /Germany |
3 |
Servo motor |
Delta / Taiwan |
4 |
Control temperature |
Yudian/Xiamen |
5 |
Color code photoelectricity |
Autonics/Korea |
6 |
Cylinder |
Airtac/Taiwan |
7 |
Electromagnetic valve |
Airtac/Taiwan |
8 |
FRL combination |
Airtac/Taiwan |
9 |
Throttle |
Airtac/Taiwan |
10 |
Mid- relay |
Omron/Japan |
11 |
Solid state relay |
YangMing/ Taiwan |
12 |
Proximity switch |
YangMing/ Taiwan |
13 |
Button switch |
Schneider/France |
14 |
Power switch |
Schneider/France |
15 |
Residual Current Device switch |
Schneider/France |
16 |
Switch power(3.6A) |
Schneider/France |

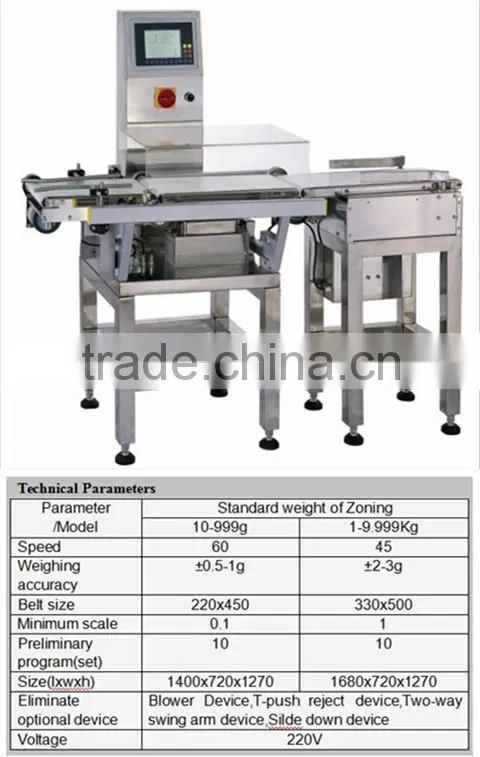

Check weigher:
Applications
Apply Range: Used to detect the weight of product whether match with the target weight, meanwhile auto-selecting device picks out the unqualified products.

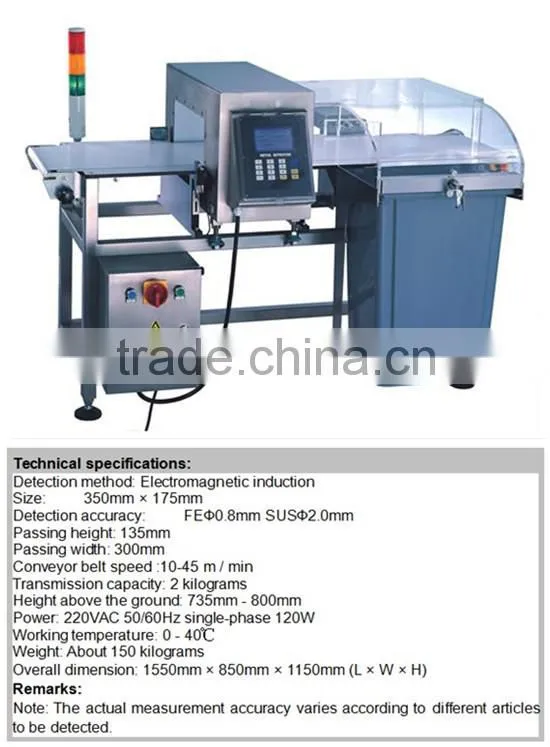

Conveyor belt type metal detector
AC-RCB-A-III:

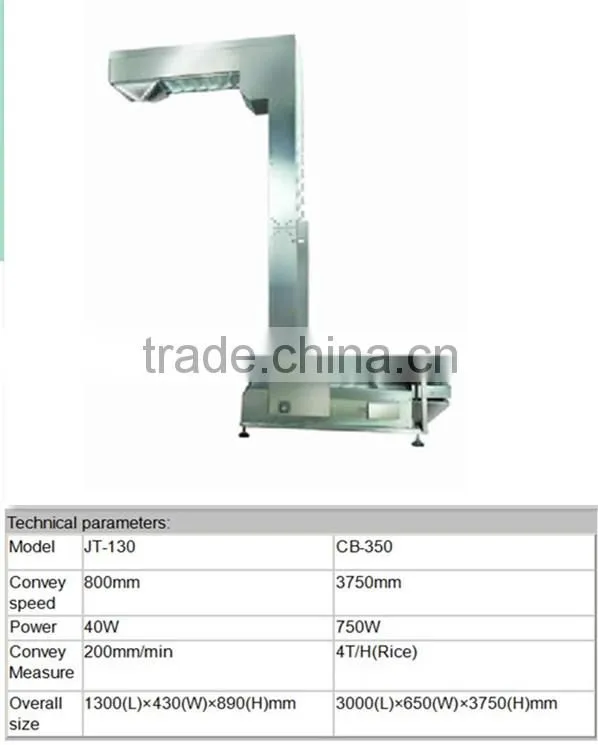

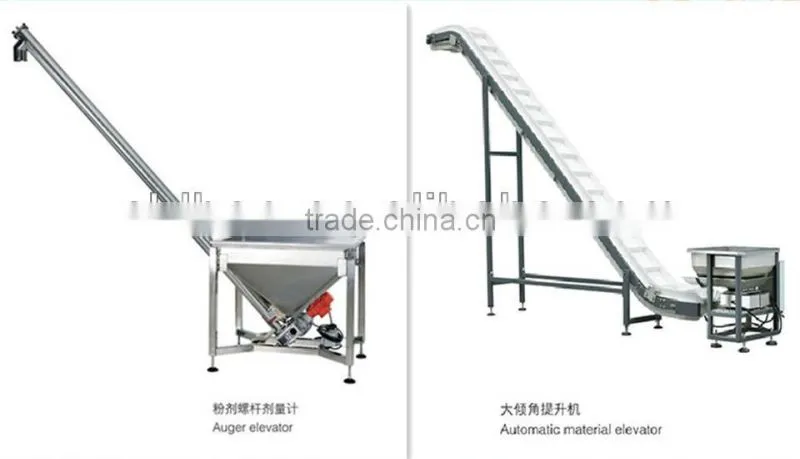

Z-shaped automatic material elevator:

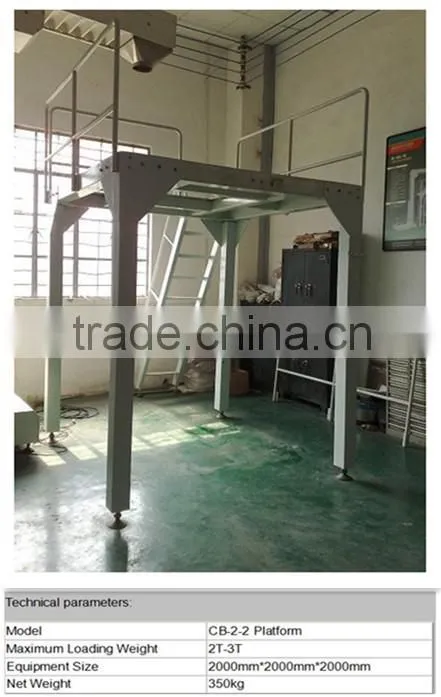

Platform:

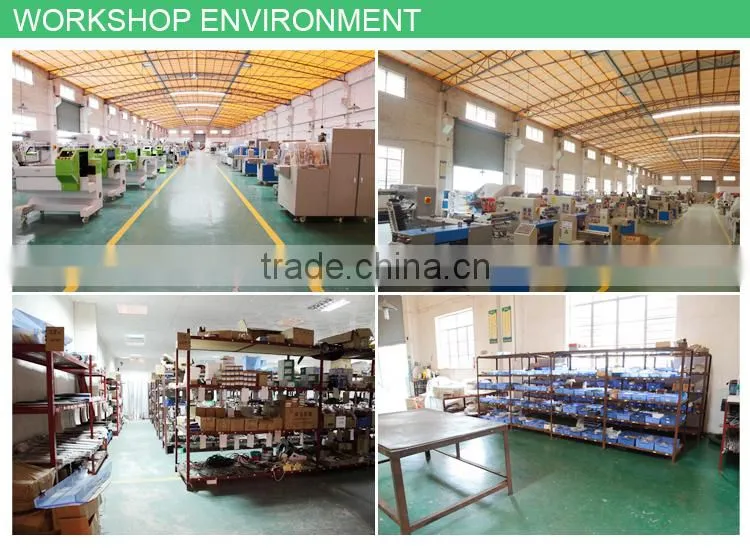

CHUANGLIBAO has been an professional manufacturer of packing machine since 1998. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
Q: Why do you choose our packing machine?
A: Our machine with high quality and good service, We can solve your packing issue as soon as quickly if you have any questions, we also can send our engineer to you there if u need.
Q: What is the delivery time and how many days will come to destination port?
A: 20 working days after receiving deposit, the delivery time to destination port depends on your destination port.
Q: What’s advantage of your company and your packing machine?
A :Well trained and Experienced after-sales team and agents all over the world, guarantee the good maintenance and service during the use of machines.
