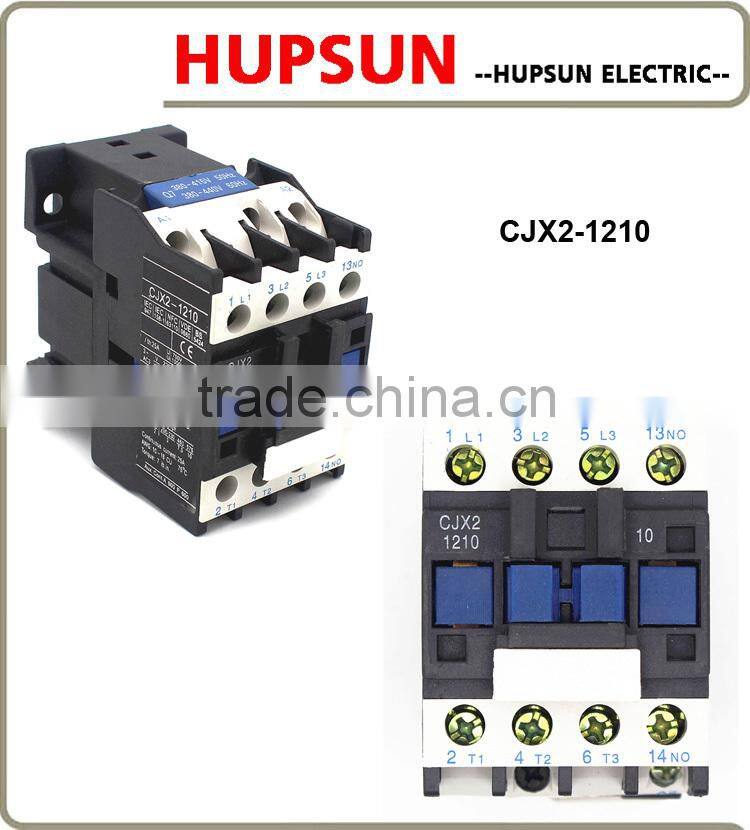

CJX2-1210 12A 3P NO NC AC Contactor

CJX2-1210 12A 3P NO NC AC Contactor thumbnail-1
CJX2-1210 12A 3P NO NC AC Contactor thumbnail-2
CJX2-1210 12A 3P NO NC AC Contactor thumbnail-3
CJX2-1210 12A 3P NO NC AC Contactor thumbnail-4
CJX2-1210 12A 3P NO NC AC Contactor thumbnail-5
CJX2-1210 12A 3P NO NC AC Contactor thumbnail-6
CJX2-1210 12A 3P NO NC AC Contactor photo-1
CJX2-1210 12A 3P NO NC AC Contactor photo-2
CJX2-1210 12A 3P NO NC AC Contactor photo-3
CJX2-1210 12A 3P NO NC AC Contactor photo-4

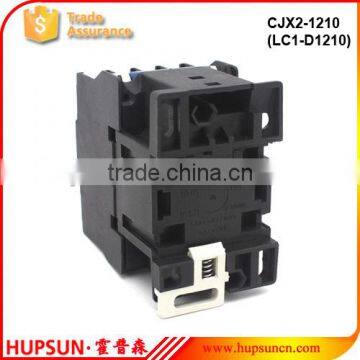

CJX2-1210 12A 3P NO NC AC Contactor photo-5

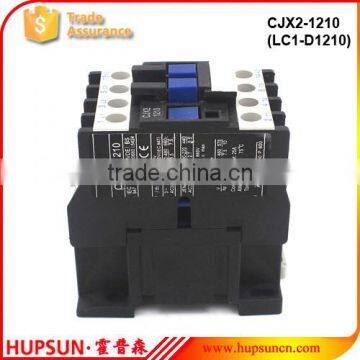

CJX2-1210 12A 3P NO NC AC Contactor photo-6
US$ 3.00 - 3.00 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HUPSUN
Model Number:
CJX2-1210
Contact Supplier Request Quote Chat Now
Yueqing Hupsun Import And Export Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HUPSUN
Model Number CJX2-1210
Electricity Type AC
Number of Pole 3
Phase 2
Main Circuit Rating Voltage Other, AC220V/380V
Main Circuit Rating Current Other, 12A

CJX2-1210 12A 3P NO NC AC contactor









APPLICATION

-------------------------------------------------------------------------------------------------------------------------------------------



CJX2(LC1) series AC contactor (simplified as contactor in the following) is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 95A, for making and breaking and frequent starting, controlling the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc. It is conbined into the delay contactor, mechanical interlocking contactor, star-delta starter, with the thermal relay, it is combined into the electromagnetic starter.

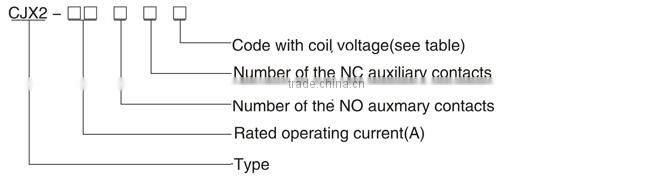

 TYPE AND MEANING

-------------------------------------------------------------------------------------------------------------------------------------------



CJX2-1210 12A 3P NO NC AC contactor



Coil Voltage (V) 24 36 48 110 127 220 230 240 380 415 440 480 600 660
50Hz B5 C5 E5 F5 G5 M5 P5 U5 Q5 N5 R5 T5 S5 Y5
60Hz B6 C6 E6 F6 G6 M7 P6 U6 Q6 N6 R6 T6 S6 Y6
50/60Hz B7 C7 E7 F7 G7 M7 P7 U7 Q7 N7 R7 T7 S7 Y7




Product Description

SPECIFICATION

-------------------------------------------------------------------------------------------------------------------------------------------



Type CJX2-09 CJX2-12 CJX2-18 CJX2-25 CJX2-32 CJX2-40 CJX2-50 CJX2-63 CJX2-80 CJX2-95
Rated insulation voltage (V) 660 660 660 660 660 660 660 660 660 660
Conventional thermal current (A) 20 25 32 40 50 60 75 80 110 125
Rated operational current 9 12 16 25 30 40 50 63 80 95
Controlled power (KW) 220V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
Controlled power (KW) 380V 4 5.5 7.5 11 15 18.5 22 30 37 45
Controlled power (KW) 415V 4 5.5 9 11 15 22 25 37 45 45
Controlled power (KW) 440V 4 5.5 9 11 15 22 30 37 45 45
Controlled power (KW) 660V 5.5 7.5 10 15 18.5 30 33 37 45 45
Note The installation of the relays can use two screws and also use the 35mm installation rail The installation of the relays can use three screws and also use the 75mm or 35mm installation rail

Note: 3P: three NO main contacts; NC: one NO auxiliary contacts; NC: one NC auxiliary contacts.





SPECIFICATION OF COIL

-------------------------------------------------------------------------------------------------------------------------------------------



Type CJX2-09 CJX2-12 CJX2-18 CJX2-25 CJX2-32 CJX2-40 CJX2-50 CJX2-63 CJX2-80 CJX2-95
Closing voltage 50/60Hz(V) (0.85 ~1.1)Us
Releasing voltage 50/60Hz(V) (0.2~0.75)Us
Coil Power      50Hz  Closing   70 70  110  110  110  200  200  200  200  200
Closed  8 8  11  11  11  20  20  20  20  20
  60Hz Closing  80 80  115  115  115  200 200  200  200  200
Closed  8  8 11  11  11  20  20  20  20  20
   Consumption  1.8~2.7  1.8~2.7  3~4 3~4  3~4  6~10  6~10  6~10  6~10  6~10

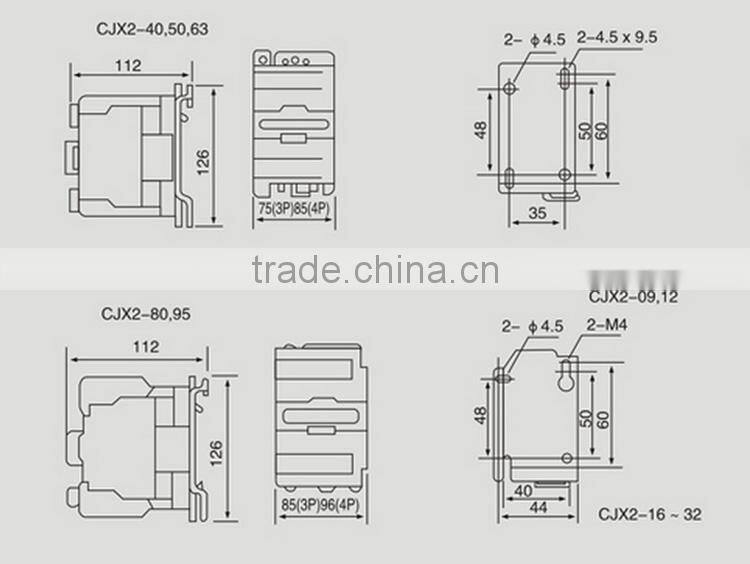

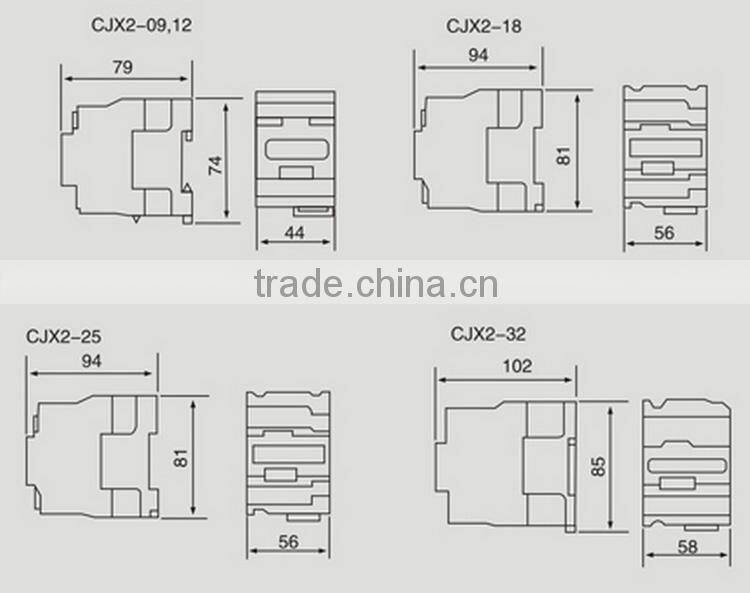

OUTLINE & MOUNTING SIZE

-------------------------------------------------------------------------------------------------------------------------------------------



Outline size

CJX2-1210 12A 3P NO NC AC contactor

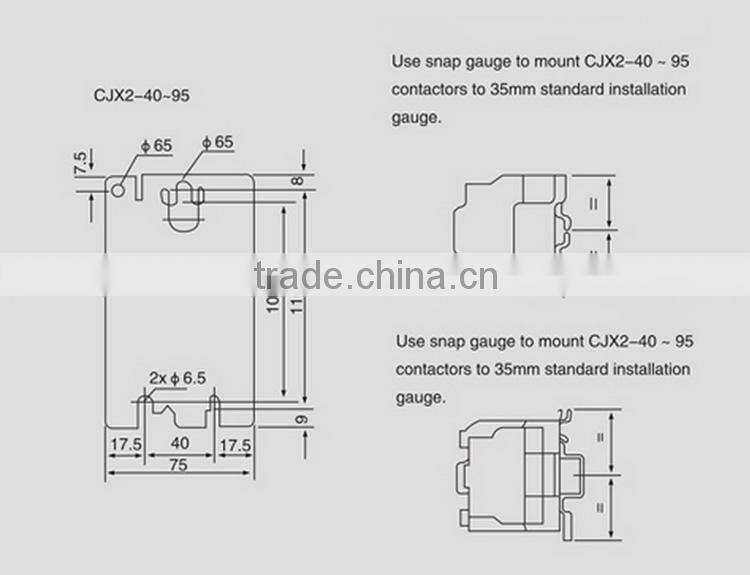

Mounting size

CJX2-1210 12A 3P NO NC AC contactorCJX2-1210 12A 3P NO NC AC contactor



  CJX2-1210 12A 3P NO NC AC contactor

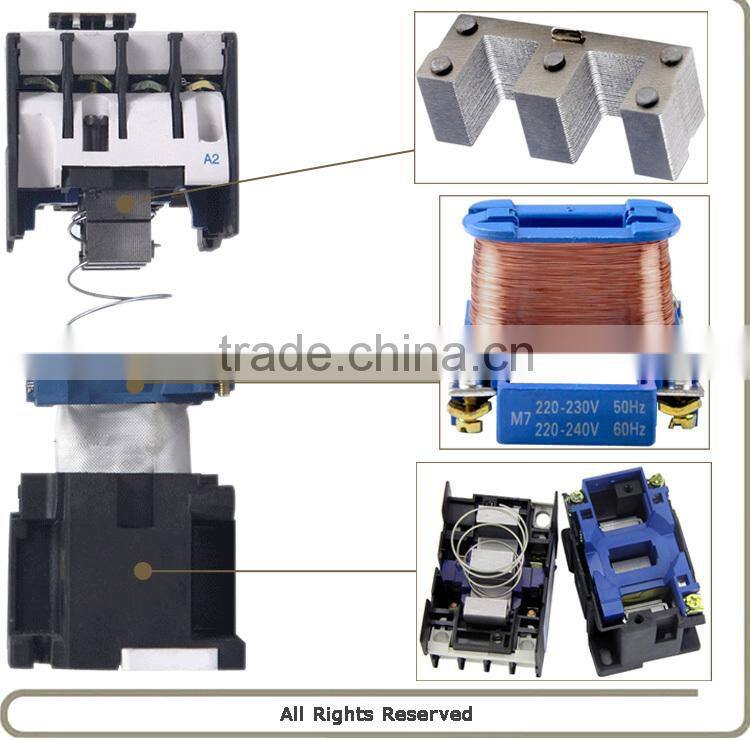

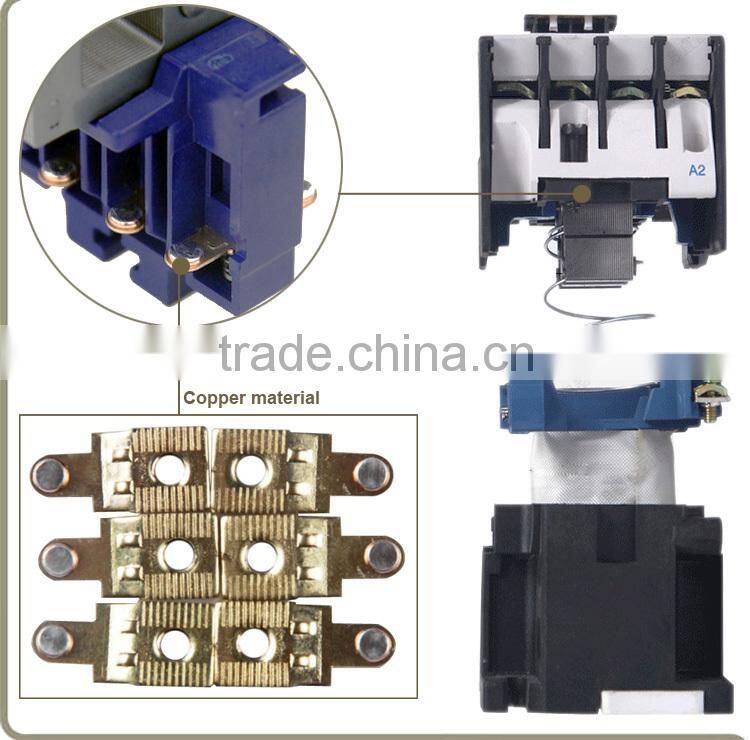

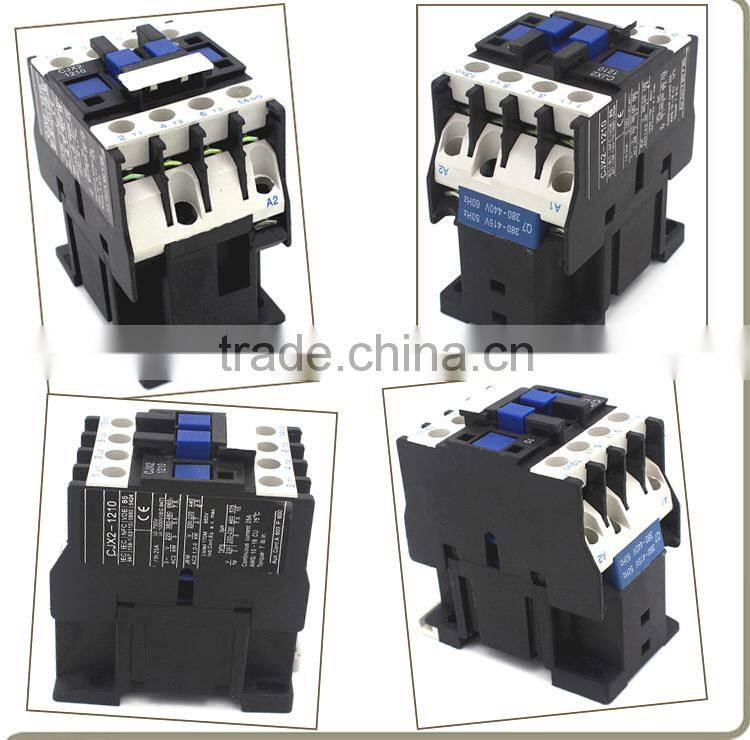

Detailed Images

 CJX2-1210 12A 3P NO NC AC contactorCJX2-1210 12A 3P NO NC AC contactorCJX2-1210 12A 3P NO NC AC contactorCJX2-1210 12A 3P NO NC AC contactor CJX2-1210 12A 3P NO NC AC contactor







Our Services

CJX2-1210 12A 3P NO NC AC contactorCJX2-1210 12A 3P NO NC AC contactor





  CJX2-1210 12A 3P NO NC AC contactor

Company Information

 CJX2-1210 12A 3P NO NC AC contactor



CJX2-1210 12A 3P NO NC AC contactor





Certifications

 CJX2-1210 12A 3P NO NC AC contactor



Packaging & Shipping

CJX2-1210 12A 3P NO NC AC contactorCJX2-1210 12A 3P NO NC AC contactor



CJX2-1210 12A 3P NO NC AC contactor
