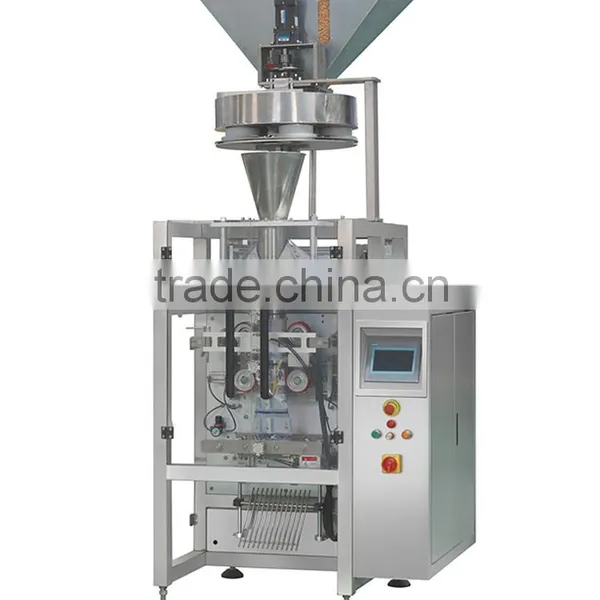

China Best selling multi-function CE approved machine price for small business
Suit for the quantitative weighing of Popcorn, dry pasta, Meatball, Macaroni, hamburgers, oats, washing powder, puffed food, French Fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, hardware and medicine such particle, platy, strip and irregular shape.
2.Functional Specification
- Import PLC computer control system, human-machine screen, easy touch screen operation.
- With imported servo film transporting system and mark sensor, accurate positioning, perfect packing.
- Perfect automatic alarm function, to minimize the loss.
- Combine with metering device, it can finish the process of metering, feeding, filling, bag making, printing.
- Bag type: can make it with pillow bag and vertical bag according to customer needs.
| Model | CBP1-4230 | CBP1-5240 | CBP1-6833 | CBP1-8260 |
| Bag size ( L × W ) | (60-300) × (60-200)mm | (60-300) × (60-200)mm | (60-250) × (60-400)mm | (60-400) × (60-600)mm |
| Max width of roll film | 420mm | 520mm | 680mm | 820mm |
| Packing speed | 5-60bag/min | 5-50bag/min | 5-50bag/min | 5-45bag/min |
| Measuring range | 150-1200ml | 3000ml Max | 6000ml Max | 8000ml Max |
| Packing Material | OPP/CPP OPP/PE PET/PE PE | |||
| Air pressure | 0.65Mpa | |||
| Gas consumption | 0.3m3/min | |||
| Power voltage | 220VAC/50HZ | |||
| Power | 2.2KW | 2.5KW | 3.5KW | 4KW |
| Dimension | (L)1080mm ×(W)1300mm ×(H)1400mm | / | / | / |
| Net weight of machine | 540kg | 650kg | 720kg | 800kg |
3.
I.Electronic combination says automatic packaging principle diagram:
1. Put hopper
2. The shock
3. Automatic vertical packaging machine
4. Bull electronic combination says
5. Finished product conveyor
4.Components
No. |
Name |
Brand / Origin |
1 |
PLC touch screen |
Siemens / Germany |
2 |
PLC |
Siemens / Germany |
3 |
Servo motor |
Siemens / Germany |
4 |
Control temperature |
Yudian / Xiamen |
5 |
Color code photoelectricity |
Autonics / Korea |
6 |
Cylinder |
Airtac / Taiwan |
7 |
Electromagnetic valve |
Airtac / Taiwan |
8 |
FRL combination |
Airtac / Taiwan |
9 |
Throttle |
Airtac / Taiwan |
10 |
Mid-relay |
Omron / Japan |
11 |
Solid state relay |
YangMing / Taiwan |
12 |
Proximity switch |
YangMing / Taiwan |
13 |
Button switch |
Schneider / France |
14 |
Power switch |
Schneider / France |
15 |
Residual Current Device switch |
Schneider / France |
16 |
Switch power(3.6A) |
Schneider / France |
5.Spare part and origin
Aguer elevator
Finished product conveyor
4-head hopper
CUP FILLER SYSTEM
QTY: 5 cups
Counting theory: volumetric meter according to density of material
6.Excellent services for free:
- Consultation service before, during, and after sales;
- Project planning and design services;
- Debugging of equipment until everything is functional;
- Management of equipments' long distance shipping;
- Training of equipment maintenance and operating personally;
- New production techniques and formulas;
- Provide 1 year complete warrantee and lifetime maintenance service.
- Spare part list
| No. | Spare part | QTY | |
| 1 | kit | 1 | 400mm x 200mm x 200mm |
| 2 | belt | 2 | For driving the film |
| 3 | Horizontal heater | 4 | For temperature control |
| 4 | Vertical heater | 4 | For temperature control |
| 5 | Socket head wrench | 1 | For driving screw |
| 6 | Cross screwdriver | 1 | For driving screw |
| 7 | Straight screwdriver | 1 | For driving screw |
| 8 | Monkey spanner | 1 | For driving screw |
| 9 | Spanner | 1 | For driving screw |
| 10 | knife | 1 | For cutting |
| 11 | thermocouple | 1 | For temperature control |
| 12 | Printer keypad | 1 | For printing |
| 13 | Printer heater | 1 | For temperature control |
| 14 | Color ribbon for printer | NY800 BLACK | For printing |
| 25mm-100m | |||
| 15 | Manual for sensor | 1 | For operating manual |
| 16 | brush | 1 | For cleaning |
CHUANGLIBAO has been an professional manufacturer of packing machine since 2003. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
Q1:What is your company specialized in?
A1:Foshan CHUANGLIBAO PACKING MACHINE Co.,Ltd. is built in 2003,it's a professional manufacturer
of Pillow packing machine and Vertical packing machine over 10 years in Foshan,China.About 40 min from factory to Guangzhou airport.
Q2:Have you ever exported your packing machine to other countries?
A2:Yes.We have exported the machines to many other countries,like America,Austrilia,Malaysia,Mexico,
Spain,Croatia,Greece,Thailand,Vietnam,South Africa,India,Indonedia,Saudi Arabia,Jordan,Ymen,Morocco,
Turkey,South Africa,Iran,Russia ,Serbia etc.
Q3:What info you need before confirming the machine?
A3:Your product picture,
your product size(length,width,height,weight etc.),
packing type(Back seal / quad seal / 3-side seal etc),
your product samples(for testing).
Q4:We never operate this kinds of machine,how can I learn it?
A4:You can bring your technician to learn the operation in our company.There are some training lessons
about the machine operation. If you don't have the time to come us,we will send you the video and manual
for your reference.
Q5:If the machine is breakdown with unexpected problems ,what should we do?
A5:At first,you can take off the power and check the machine carefully,then restart it.
Second,operate it step by step according to the machine manual.
Third,if the problem cannot be solved by yourself,you can reflect the situation to us and we will help you
to solve it asap.If needed,our technician can service overseas.
