1-5kg rice packing machine price

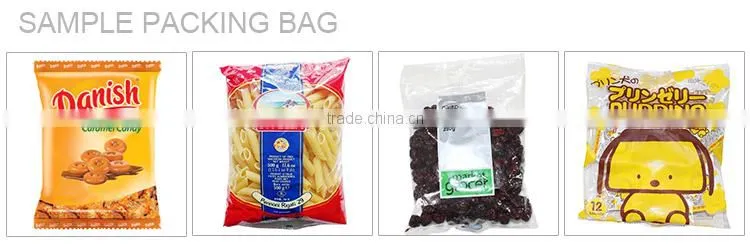

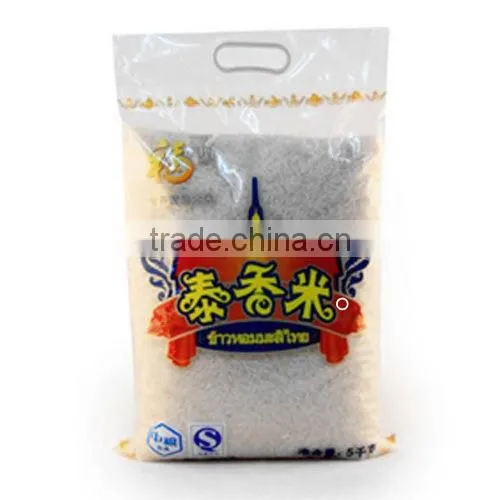

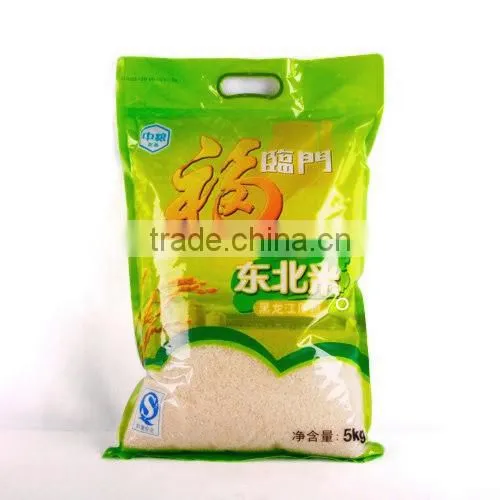

1.Application & sample bags:
Suitable for many kinds of measuring equipments,and package different kinds of products ;
such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed,rice and sugar etc.
which shape is roll, slice and granule.
2.Function Description:
- Adopted to color touch screen and high accuracy output PLC control, bag making, measuring, filling, sealing, date printing, product output in one operation.
- The control of pneumatic and power is independent, noise is low, and working is stable.
- Adopted to vacuum drawing film, less pulling resistance, bag is formed in better appearance.
- Double servo control, high accuracy position with specification size.
- Adopted to external film releasing mechanism, simple and easy to install the packaging film.
- Adjustment of bag deviation just needed to be played on the touch screen, easy to operate.
- Close down machine framework, defending powder into inside of the machine.
3.Technical Specifications:
| Model | CBP1-4230 | CBP1-5240 | CBP1-6848 | CBP1-8260 |
| Bag size ( L × W ) | (60-300) × (60-200)mm | (60-300) × (60-200)mm | (60-250) × (60-400)mm | (60-400) × (60-600)mm |
| Max width of roll film | 420mm | 520mm | 680mm | 820mm |
| Packing speed | 5-60bag/min | 5-50bag/min | 5-50bag/min | 5-45bag/min |
| Measuring range | 150-1200ml | 3000ml Max | 6000ml Max | 8000ml Max |
| Packing Material | OPP/CPP OPP/PE PET/PE PE | |||
| Air pressure | 0.65Mpa | |||
| Gas consumption | 0.3m3/min | |||
| Power voltage | 220VAC/50HZ | |||
| Power | 2.2KW | 2.5KW | 3.5KW | 4KW |
| Dimension | (L)1080mm ×(W)1300mm ×(H)1400mm | / | / | / |
| Net weight of machine | 540kg | 650kg | 720kg | 800kg |
4.Electronic combination says automatic packaging principle diagram:
1. Put hopper
2. The shock
3. Automatic vertical packaging machine
4. Bull electronic combination says
5. Finished product conveyor
The equipment production process: turn on the power will temperature setting and constant temperature setting
packaging machine parameters (bag making size and packaging weight) and the artificial feeding reservoir
expect hopper vibration to improve transportation measures-material hoist conveying material combination and start electronic measurement and said to print production
date, bag making, filling and sealing materials, packaging and inflatable cut off-packing products output process;
(this equipment configuration for the double luck film agency: tension membrane resistance small, the film speed, etc.) ;
5.Component list
No. |
Name |
Brand / Origin |
1 |
PLC touch screen |
Siemens / Germany |
2 |
PLC |
Siemens / Germany |
3 |
Servo motor |
Siemens / Germany |
4 |
Control temperature |
Yudian / Xiamen |
5 |
Color code photoelectricity |
Autonics / Korea |
6 |
Cylinder |
Airtac / Taiwan |
7 |
Electromagnetic valve |
Airtac / Taiwan |
8 |
FRL combination |
Airtac / Taiwan |
9 |
Throttle |
Airtac / Taiwan |
10 |
Mid-relay |
Omron / Japan |
11 |
Solid state relay |
YangMing / Taiwan |
12 |
Proximity switch |
YangMing / Taiwan |
13 |
Button switch |
Schneider / France |
14 |
Power switch |
Schneider / France |
15 |
Residual Current Device switch |
Schneider / France |
16 |
Switch power(3.6A) |
Schneider / France |
6.Teching video link
for CBP1-6848PM /watch?v=0HaLPx_TnDo
7.Excellent services for free:
- Consultation service before, during, and after sales;
- Project planning and design services;
- Debugging of equipment until everything is functional;
- Management of equipments' long distance shipping;
- Training of equipment maintenance and operating personally;
- New production techniques and formulas;
- Provide 1 year complete warrantee and lifetime maintenance service.
- Spare part list
| No. | Spare part | QTY | |
| 1 | kit | 1 | 400mm x 200mm x 200mm |
| 2 | belt | 2 | For driving the film |
| 3 | Horizontal heater | 4 | For temperature control |
| 4 | Vertical heater | 4 | For temperature control |
| 5 | Socket head wrench | 1 | For driving screw |
| 6 | Cross screwdriver | 1 | For driving screw |
| 7 | Straight screwdriver | 1 | For driving screw |
| 8 | Monkey spanner | 1 | For driving screw |
| 9 | Spanner | 1 | For driving screw |
| 10 | knife | 1 | For cutting |
| 11 | thermocouple | 1 | For temperature control |
| 12 | Printer keypad | 1 | For printing |
| 13 | Printer heater | 1 | For temperature control |
| 14 | Color ribbon for printer | NY800 BLACK | For printing |
| 25mm-100m | |||
| 15 | Manual for sensor | 1 | For operating manual |
| 16 | brush | 1 | For cleaning |
Payment items: 30% T/T as deposit and 70% T/T balance before the shipment.Machine checking is available before the shipment.
Delivery time:For standard pillow packing machine as CB-100 / 100I / 320 / 380I / 300S etc,10-15 working days;for standard big vertical packing machine,25~35 working days.
CHUANGLIBAO has been an professional manufacturer of packing machine since 2003. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
Q1:What is your company specialized in?
A1:Foshan CHUANGLIBAO PACKING MACHINE Co.,Ltd. is built in 2003,it's a professional manufacturer
of Pillow packing machine and Vertical packing machine over 10 years in Foshan,China.About 40 min from factory to Guangzhou airport.
Q2:Have you ever exported your packing machine to other countries?
A2:Yes.We have exported the machines to many other countries,like America,Austrilia,Malaysia,Mexico,
Spain,Croatia,Greece,Thailand,Vietnam,South Africa,India,Indonedia,Saudi Arabia,Jordan,Ymen,Morocco,
Turkey,South Africa,Iran,Russia ,Serbia etc.
Q3:What info you need before confirming the machine?
A3:Your product picture,
your product size(length,width,height,weight etc.),
packing type(Back seal / quad seal / 3-side seal etc),
your product samples(for testing).
Q4:We never operate this kinds of machine,how can I learn it?
A4:You can bring your technician to learn the operation in our company.There are some training lessons
about the machine operation. If you don't have the time to come us,we will send you the video and manual
for your reference.
Q5:If the machine is breakdown with unexpected problems ,what should we do?
A5:At first,you can take off the power and check the machine carefully,then restart it.
Second,operate it step by step according to the machine manual.
Third,if the problem cannot be solved by yourself,you can reflect the situation to us and we will help you
to solve it asap.If needed,our technician can service overseas.
