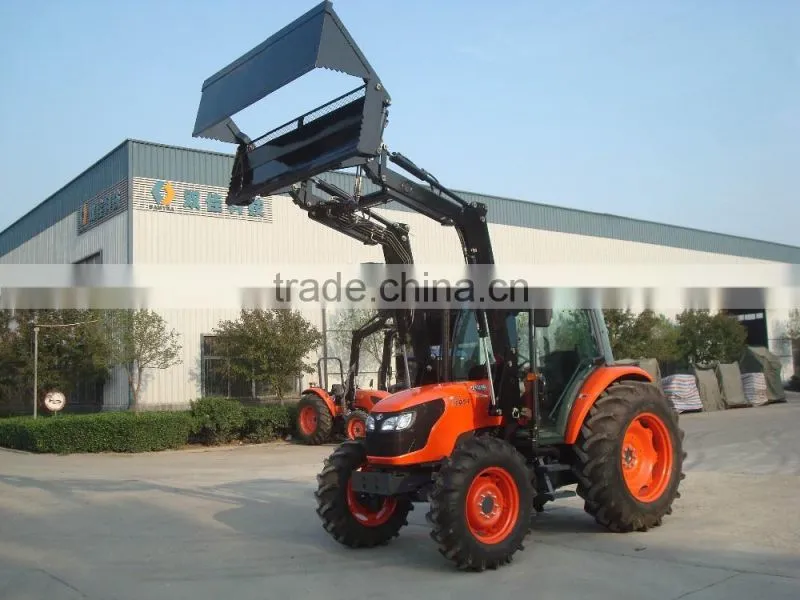

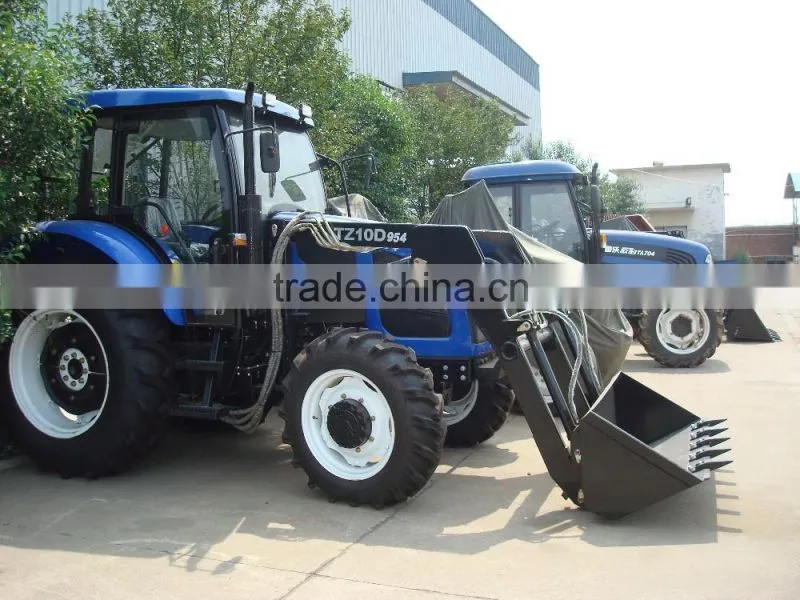

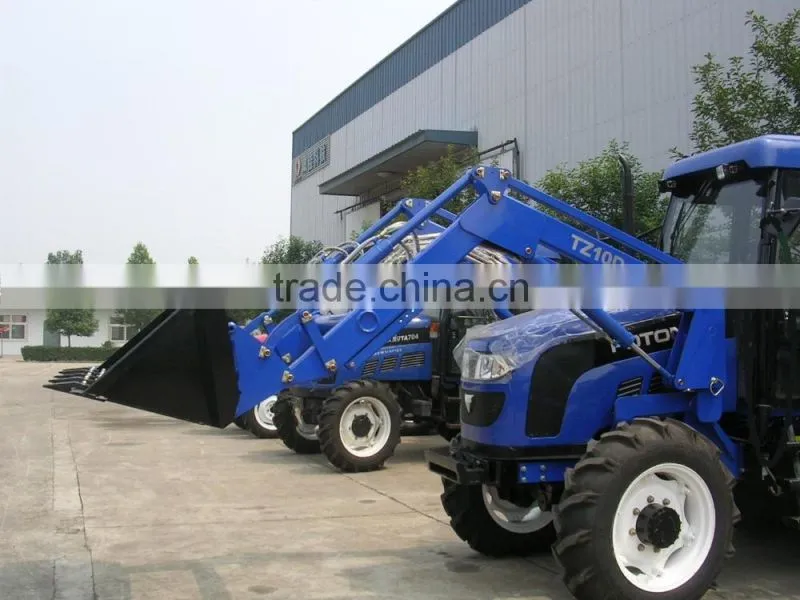

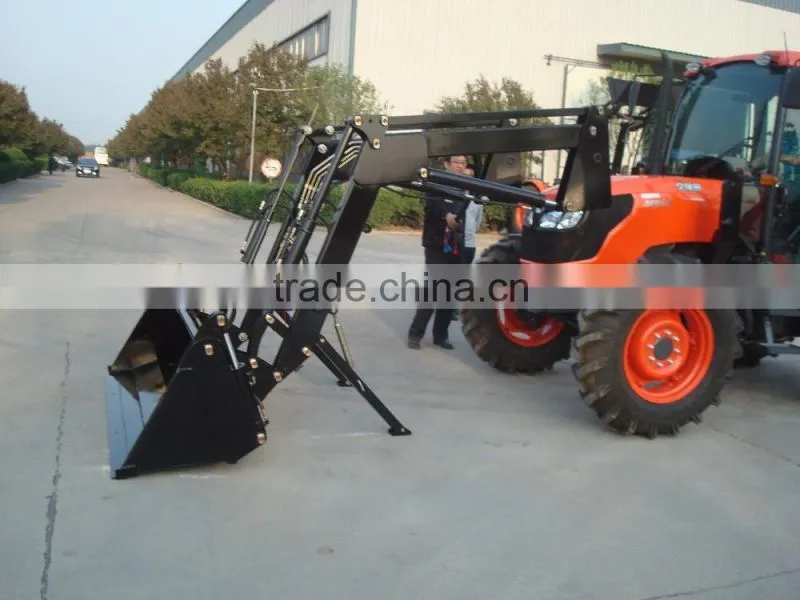

Manufacturer farm front end loader for Newholland/ Kubota/John Deer tractors
Are there possible to get wold-class front end loaders in China?
Yes, Shandong SUNCO possesses excellent design team, advanced manufacturing technics and rich experience in production practice. SUNCO equipments will bring you unexpected benefits in reliability&durability, practicability&efficiency, safety&comfort.

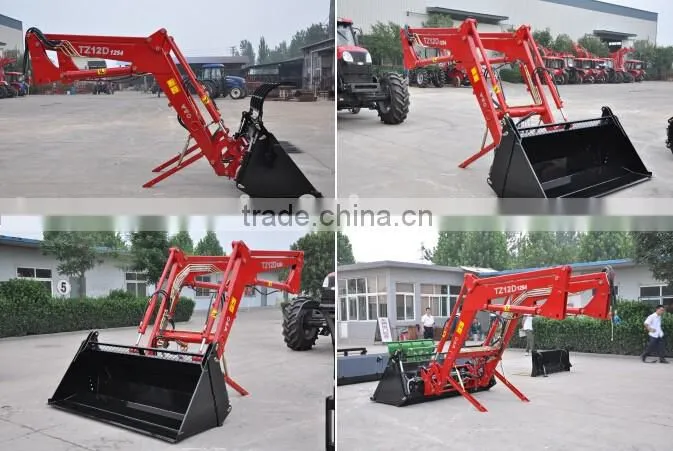

Loader Model |
|
TZ02D |
TZ03D |
TZ04D |
TZ06D |
TZ08D |
TZ10D |
TZ12D |
TZ16D |
Matching Tractor |
hp |
15-25 |
20-40 |
30-55 |
45-60 |
55-75 |
70-100 |
90-140 |
140-180 |
Max.Lift Height |
mm |
2350 |
2550 |
2740 |
3010 |
3400 |
3710 |
3970 |
4260 |
Dumpling Height |
mm |
1730 |
1840 |
2100 |
2370 |
2480 |
2720 |
3000 |
3200 |
Overloading height |
mm |
2170 |
2370 |
2560 |
2830 |
3220 |
3490 |
3770 |
4000 |
Dumpling Distance |
mm |
370 |
500 |
600 |
640 |
690 |
740 |
900 |
900 |
Ground clearance at Arm Prvot Pin |
mm |
1120 |
1200 |
1360 |
1500 |
1630 |
1780 |
1930 |
1930 |
Max.Tip in Angle |
x° |
48 |
48 |
48 |
48 |
54 |
54 |
54 |
54 |
Tip out Angle |
x° |
52 |
58 |
58 |
58 |
58 |
58 |
58 |
58 |
Crowd angle at lowered lift arm |
x° |
140 |
135 |
135 |
135 |
135 |
145 |
145 |
145 |
Digging depth |
mm |
90 |
100 |
100 |
120 |
140 |
180 |
200 |
200 |
Lifting Force at Implement Pivot Pin |
kg |
1821/ 1184 |
2224/ 1474 |
2144/ 1321 |
2150/ 1286 |
1997/ 1187 |
2308/ 1452 |
2403/ 1690 |
2620/ 1850 |
Standard bucket |
|
02DP125 |
04DP125 |
04DP140 |
06DP150 |
08DP160 |
08DP170 |
12DP200 |
16DP2400 |
Bucket width |
mm |
1250 |
1250 |
1400 |
1500 |
1600 |
1700 |
2000 |
2400 |
Bucket capacity |
m³ |
0.16 |
0.18 |
0.21 |
0.35 |
0.40 |
0.44 |
0.7 |
1.6 |
Rated lifting capacity |
kg |
200 |
300 |
400 |
600 |
800 |
1000 |
1200 |
1600 |

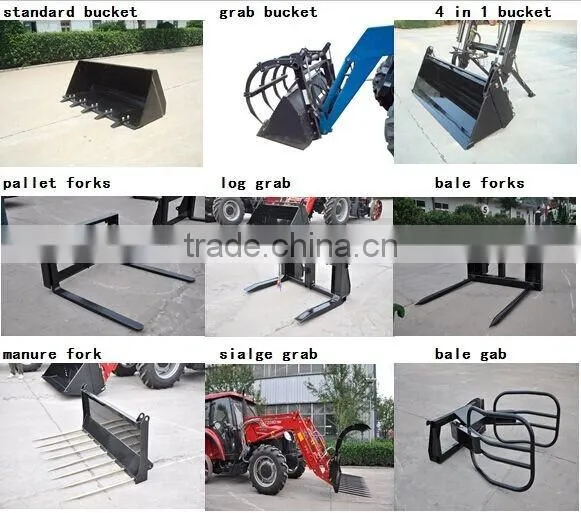

All implements can be provided:

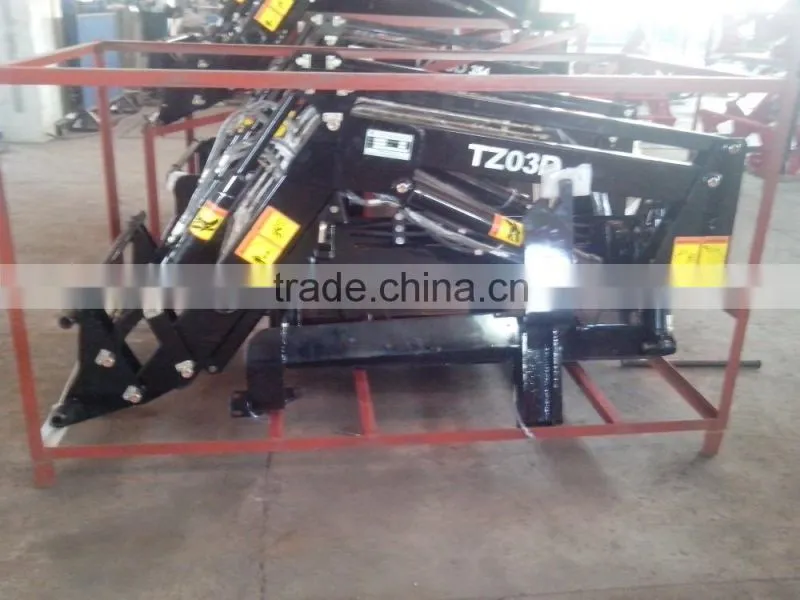

Steel frame package for free.
After service and Guaranty of our factory:
1.1years quality guaranty, the machine with main parts (excluding the consumables) shall be
changed free of charge when if any problem during the warranty period.
2. 12 hours on line service each day, free technical support.
3. Machine has been adjusted before delivery.
4. Provide technical services to the door
(We have professional engineers to offer machine installation commissioning and maintenance)
Please feel free to conact with me if you have any request :))
