Specifications
1.Costomized design2.Simple Operation
3.Stable and reliable working
4.Superior performance
5.Convenient maintance.

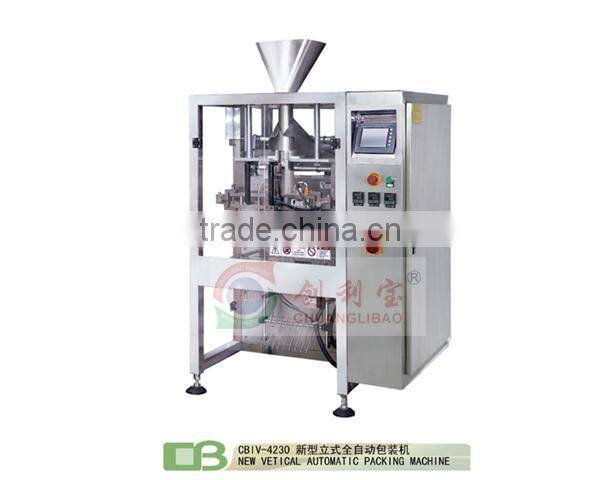

sugar powder pack machinery with 3-side seal and 4-side sealCB-4230
Technical specifications:
Model |
CB-4230 |
Bag size |
L (60-300) ×W (60-200) mm |
Packing speed |
5-60 bags/min |
Measuring range |
150-1200 ml |
Max width of film roll |
≤420 mm |
Air consumption |
0.65 mpa |
Gas consumption |
0.3 m3/min |
Power requirement |
220 V, 50 HZ, 2.2 KW |
Machine size |
L 1080 * W 1300 * H 1400 mm |
Machine weight |
540KG |
Scope of application:
Suit for the quantitative weighing of Popcorn, dry pasta, Meatball, Macaroni, hamburgers, oats, washing powder, puffed food, French Fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, hardware and medicine such particle, platy, strip and irregular shape,peanut,coffee,small biscuit,granule,puffy food,corn,rice etc..
Function Description:
- Adopted to color touch screen and high accuracy output PLC control, bag making, measuring, filling, sealing, date printing, product output in one operation.
- The control of pneumatic and power is independent, noise is low, and working is stable.
- Adopted to vacuum drawing film, less pulling resistance, bag is formed in better appearance.
- Double servo control, high accuracy position with specification size.
- Adopted to external film releasing mechanism, simple and easy to install the packaging film.
- Adjustment of bag deviation just needed to be played on the touch screen, easy to operate.
- Close down machine framework, defending powder into inside of the machine.
Spare part and origin:
Spare parts list | |||
No. |
SPECIFICATION |
unit |
terms |
1 |
horizontal seal heater inductor |
2pcs |
Free of charge |
2 |
vertical seal heater inductor |
1pcs |
|
3 |
Cutter |
1pcs |
|
4 |
thermocouple |
1pcs |
|
5 |
move film belt |
2pcs |
|
6 |
Proximity switch |
1pcs |
|
Component list: | |||
No. |
Name |
General equipment |
|
1 |
PLC touch screen |
Siemens /Germany |
|
2 |
PLC |
Siemens /Germany |
|
3 |
Servo motor |
Delta / Taiwan |
|
4 |
Control temperature |
Yudian/Xiamen |
|
5 |
Colour code photoelectricity |
Autonics/Korea |
|
6 |
Cylinder |
Airtac/Taiwan |
|
7 |
Electromagnetic valve |
Airtac/Taiwan |
|
8 |
FRL combination |
Airtac/Taiwan |
|
9 |
Throttle |
Airtac/Taiwan |
|
10 |
Mid- relay |
Omron/Japan |
|
11 |
Solid state relay |
YangMing/ Taiwan |
|
12 |
Proximity switch |
YangMing/ Taiwan |
|
13 |
Button switch |
Schneider/France |
|
14 |
Power switch |
Schneider/France |
|
15 |
Residual Current Device switch |
Schneider/France |
|
16 |
Switch power(3.6A) |
Schneider/France |
|
| FAQ: |
|---|
Q1.What is your company specialized in?
A1:Foshan CHUANGLIBAO PACKING MACHINE Co.,Ltd. is built in 2004 ,it's a professional manufacturer of Pillow packing machine and Vertical packing machine over 10years.
Q2:Have you ever exported your packing machine to other countries?
A2:Yes.We have exported the machines to many other countries,like America,Austrilia,Malaysia,Mexico,Croatia,Greece,Thailand,Vietnam,India,Indonedia,Saudi Arabia,Jordan,Morocco,Turkey,South Africa,Iran,Russia ,Serbia etc.
Q3:How to cooperate with you?
A3:We recommad the suitable packing machine for you per your detailed requiement and you can come us for the machine checking.Before the order,company inspection is available.
Q4:We never operate this kinds of machine,how can I learn it?
A4:You can bring your technician to learn the operation in our company.There are some training lessons about the machine operation.If you don't have the time to come us,we will send you the video and manual for your reference.
Q5:If the machine is breakdown with unexpected problems ,what should we do?
A5:At first,you can take off the power and check the machine carefully,then restart it. Second,operate it step by step according to the machine manual.Third,if the problem cannot be solved by yourself,you can reflect the situation to us and we will help you to solve it asap.If needed,our technician can service overseas.
Q6:How can we contact you?
A6:Company name:Foshan Chuanglibao Packing Machine Co.,Ltd.
Attn:Grace guo The exported Department Manager
Tel:0086-18925966626
Fax:086-757-81801949
Skyp:grace.guo06
Focus on the customers' demand! Trust us and we will prove that you are right!
