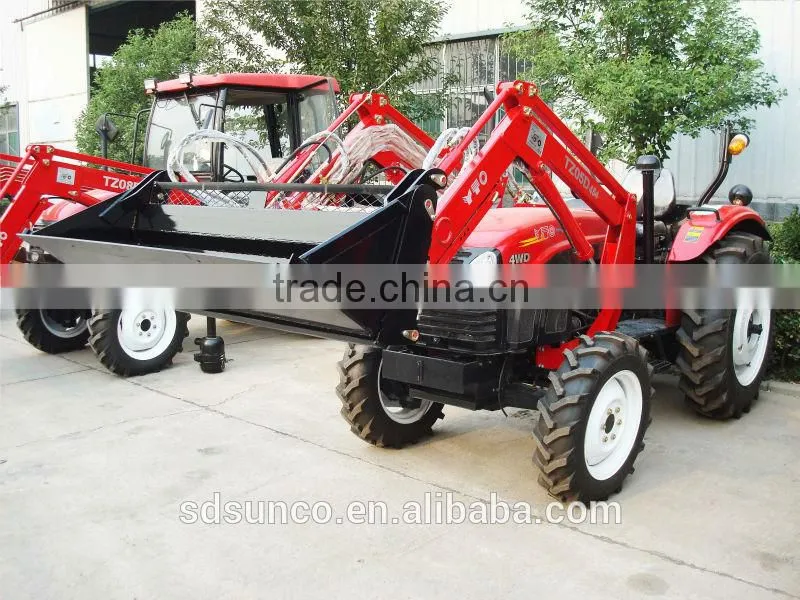

Help CenterShandong Manufacturer ! 4 in 1 Bucket Front Loader TZ10D for Foton 824 Tractor,80 -100 hp Foton Tractors
Related Products
-
Famous Manufacturer!Front End Loader With 4 in 1 Bucket for Foton 824 Tractors,Front Loader for John Deere,Dongfeng , YTO Quality ChoiceUS$ 2,100 - 5,886MOQ: 1 Set -
Top Manufacturer ! 4 in 1 Bucket TZ10D for Foton 824 Tractor,80 -100 hp Foton TractorsUS$ 2,100 - 5,886MOQ: 1 Set
-
Kubota Tractor, M965 Model With Front Loader and Backhoe,Tractor With Front Dozer Blade ,snow Removing MachineUS$ 10,600 - 21,300MOQ: 1 Set
-
40 hp 4WD Tractor John Deere 4320 With Backhoe Loader,front Loader TZ04D and Backhoe LW-7US$ 4,500 - 8,900MOQ: 1 Piece
-
Front Loader and Backhoe for 55hp 4WD Tractors John Deere 554US$ 4,500 - 8,900MOQ: 1 Piece
Front End Loader for Farm/Garden Tractor
Description:

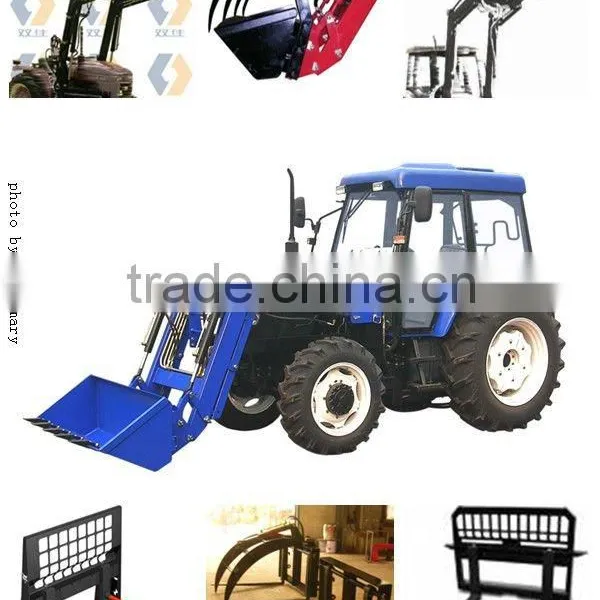

TZ Series Front End Loader for tractor is used in shoveling, stacking or short-distance transporting of loose material like mud, sand and stone, garbage etc. Different work devices are optional, such as combined buckets, grating cover bucket, timber grab and bale fork etc, so as to accomplish different kinds of work successfully.
Features:
Compact Structure
Stable Hydraulic System
Easy Operation and High efficiency
Quick mounting and dismounting.
Application:
TZ Series Front End Loader for tractor is widely used in farm, grazing land, construction etc, mainly in shoveling, stacking or short-distance transporting of loose material like mud, sand and stone, garbage
Specifications:
Main Specifications of Front End Loader | |||||
Model |
|
TZ03A/B/C/D |
TZ04A/B/C/D |
TZ05A/B/C/D |
TZ06A/B/C/D |
Matching Tractor |
kw(hp) |
14.7~22.1(20~30) |
22.1~29.4(30~40) |
29.4~36.8(40~50) |
36.8~44.1(50~60) |
Rated Lift Capacity |
kg |
300 |
400 |
500 |
600 |
Max. Dump Height |
mm |
1800 |
2000 |
2100 |
2200 |
Digging Depth |
mm |
100 |
120 |
140 |
140 |
Bucket Capacity |
m3 |
0.18 |
0.3 |
0.35 |
0.4 |
Dump Angle |
(° ) |
42~45 |
42~45 |
42~45 |
42~45 |
Weight |
kg |
470~650 |
500~680 |
530~720 |
660~800 |
Main Specifications of Front End Loader | |||||
Model |
|
TZ08A/B/C/D |
TZ10A/B/C/D |
TZ12A/B |
TZ12C/D |
Matching Tractor |
kw(hp) |
44.1~58.8(60~80) |
58.8~66.2(80~90) |
88.2~102.9(120~140) |
88.2~102.9(120~140) |
Rated Lift Capacity |
kg |
800 |
1000 |
1200 |
1200 |
Max. Dump Height |
mm |
2350 |
2350 |
2500 |
2500 |
Digging Depth |
mm |
180 |
180 |
200 |
200 |
Bucket Capacity |
m3 |
0.48 |
0.6 |
1 |
1 |
Dump Angle |
(° ) |
42~45 |
42~45 |
42~45 |
42~45 |
Weight |
kg |
680~830 |
800~980 |
960~1150 |
960~1150 |
Our Advantages:
1. Strong Technical Support:
More than 80 professional and technical personnels;
Top universities and institutes cooperator;
A subordinate to Shandong Agricultural Machinery Research Institute
2. Top Quality Assurance:
Strict control and selection of materials;
Completely self manufactured and installed;
Advanced equipments and first-class production technology;
Sound management system and solid economic strength
3. Advanced Testing Measures:
Exclusive R&D, testing center;
Capable of undertaking national research projects;
Exclusive professional platform
4. Sound after-sale system, sincere and all-aspect service
5. OEM service is acceptable, every products can be customized
