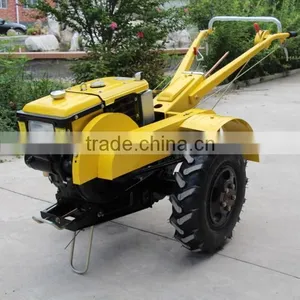

10hp Walking Tractor.agricultural Product

10hp Walking Tractor.agricultural Product thumbnail-1
10hp Walking Tractor.agricultural Product photo-1
US$ 400 - 1,500 MOQ: 20 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
Other, 2WD, 2 WD
Contact Supplier Request Quote Chat Now
Shandong Luwei Agriculture Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel Other, 2WD, 2 WD
Usage Other, Farm Tractor, Manual
Drive Type Gear Drive
Power(W) 8000
Brand Name FENGLI
Model Number FL121
Place of Origin China
After-sales Service Provided Engineers available to service machinery overseas
Certificate Other, ISO9001

Specifications

1. long lifespan. compact structure. small power.
2. gearbox.
3. diesel engine s195.
4. used to farm cultivate, transport.

walking tractor manufacturer.



10hp walking tractor.



Hand crank walking tractor

10hp walking tractor.agricultural product



Electric start walking tractor

10hp walking tractor.agricultural product



Walking tractor with rotary tiller



10hp walking tractor.agricultural product



Walking tractor with the mower



10hp walking tractor.agricultural product

Specification



Overall Dimension (mm)

2120×840×1160

Ground Clearance (mm)

210

Wheelbase(mm)

680~740

Weight (kg)

260

Semi-axis (cm)

340

Weight in use(with oil , water, tools) (kg)

350

Tyre Model

6.00~12

Tyre Pressure

Field Work

100~120(1.0~1.2kgf/c)

Transportation Work

180~200(1.8~2.0kgf/c)

Power Connection

1040

Two B1830 V Belts

Engine

R190H/7.7kw/10.5hp/2300rpm

Gear

1

2

3

4

5

6

Reverse1

Reverse2

Speed(km/h)

1.68

2.61

4.22

6.79

10.57

17.08

1.29

5.22

Traction(N)

1800

1800

1800

1800

1800

1800

_

_




Engine



Pattern

Vertical, One Cylinder, Four Stroke, Diesel powered,

Water-cooled

Model

180,190,1100

Displacement(L)

0.913

Oil Consumption

(g/ km. h)

320

Engine Oil Consumption (g/ km. h)

2.72

Rated Power(kw)

10.3

Rated Speed(rpm)

2000



Machine Parameters

Type

Pull and Drive

Overall Size(mm)

2680*960*1250(without seat)

Wheel Tread(mm)

800

Minimum Ground Clearance(mm)

185

Minimum Turning Radius(m)

0.9

Structural Weight(kg)

360 (with connecting frame), 480(with rotary tiller)

Tyre

6.00-12

Theoretical Speed(km/h)

Forward:1.4,2.5,4.1,5.3,9.4,15.3

Reverse:1.0,3.8

Rated Traction(N)

2400

Gearbox

(3+1)×2

Cooling Type

Evaporation

Rear-Wheel Diameter(mm)

340
