High Quality and Durable Jack Lift Mechanical Jack for Industrial Use

FOB Price

US$ 200 - 500 / Piece

1 Piece(Min. Order)

Port Osaka
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Japan	Brand Name	osaka jacks
Model Number	C-061	Type	Mechanical Jack
Capacity (Load)	1-10T

Product Description

High quality and Durable jack lift mechanical jack for industrial use

Features

A mechanical jack is able to hold its position thanks to an internal screw.
Journal jacks with forging gear apply a great forces and good engagement.
Ratchet handle is designed for engagement both wheel and plunger,which are called "Wedge principle".Journal Jacks have also Good durability & stability.

Application

For jack-up,jack-down(lifting up and down for heavy load).
For positioning adjusting and support heavy load,and structures.
For bridge works.
For shipbuilding works.
For support of heavy load.

How to operate

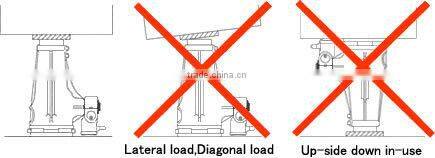

1).Apply loads vertically and overall in the center of gravity of load.

2).Male sure to insert the handle lever into the bottom of ratchet handle.Incomplete insertion of handle lever leads to slipping off during operation.

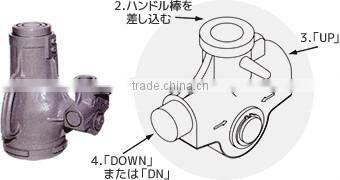

3).Before using the jack for lifting,push the liner of the ratchet handle to "up" position and operate the handle lever up and down.

4).Before using the jack for lowering,push the liner of the ratchet handle ti "down" or "DN" position and operate(carefully) the handle lever up and down. 5).Take care always to stabilize load when jacking up and down.

*The ratchet handle will turn easily when there is no load on the jack.

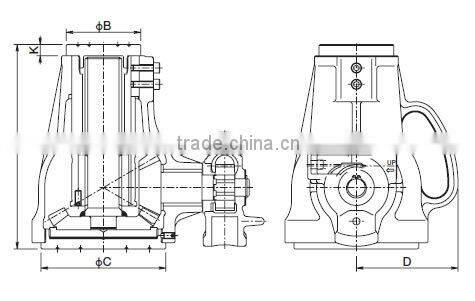

Specigications

Low lift

items		journal jack 15t low lift	journal jack 25t low lift	journal jack 35t low lift	journal jack 50t low lift	journal jack 100t low lift
model		JJ-1513	JJ-2513	JJ-3513	JJ-5013	JJ-10011
capacity	kN(tf)	150/15	250/25	350/35	500/50	1,000/100
stroke	mm	125	125	130	130	105
operating torque	Nm	420	700	1,000	1,400	1,000
colsed height:A	mm	255	255	280	290	310
head diameter:φB	mm	63	77	87	105	127
basic diameter:φC	mm	113	127	147	166	235
Dimension (mm)	E	77	88	103	106.5	-
	F	127	139	161	183	-
	H	9	12	12	14	-
	I	10	11	12	15	-
	J	10	10	15	16	-
	K	15	15	18	18	-
Weight (kg)		12	16	24	31	75
handle bar		φ20×600L	φ25×700L	φ32×700L	φ32×800L	φ32×1500L

Medium lift

items		journal jack 10t medium lift	journal jack 25t medium lift	journal jack 30t medium lift	journal jack 35t medium lift
model		JJ-1015	JJ-2525	JJ-3020	JJ-3525
capacity	kN(tf)	100/10	250/25	300/30	350/35
stroke	mm	150	250	200	250
operating torque	Nm	250	700	850	1,000
colsed height:A	mm	280	395	350	410
head diameter:φB	mm	65	77	95	87
basic diameter:φC	mm	108	127	148	147
Dimension (mm)	E	75.7	88	99	103
	F	120	139	161	161
	H	8	12	12	12
	I	11	11	12	12
	J	10	10	10	15
	K	15	15	15	18
Weight (kg)		12	21	26	32
handle bar		φ32×1500L	φ25×700L	φ25×700L	φ32×700L

High lift

items		journal jack 25t high lift	journal jack 35t high lift	journal jack 50t high lift
model		JJ-2533	JJ-3535	JJ-5035
capacity	kN(tf)	250/25	350/35	500/50
stroke	mm	330	350	350
operating torque	Nm	700	1000	1400
colsed height:A	mm	485	535	555
head diameter:φB	mm	77	87	105
basic diameter:φC	mm	127	147	166
Dimension (mm)	E	88	103	106.5
	F	139	161	183
	H	12	12	14
	I	11	12	15
	J	10	15	16
	K	15	18	18
Weight (kg)		25	37	47
handle bar		φ25×700L	φ32×700L	φ32×800L

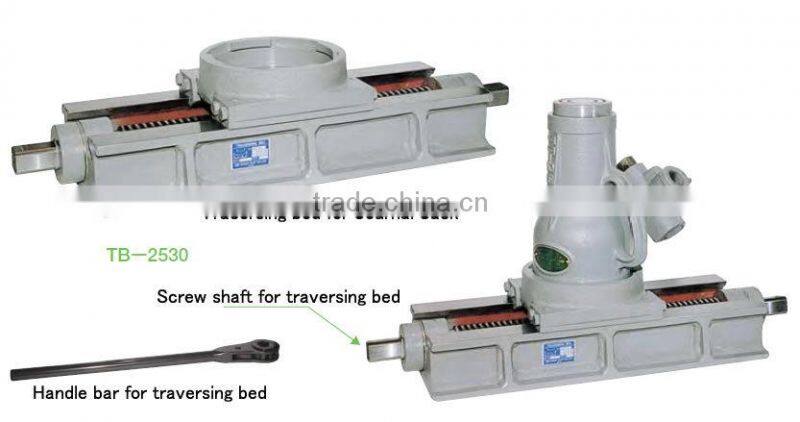

Tracersing beds

Features

Traversing bed is used when jack travel laterally.Without applying load directly,journal jack is constructed to set on traversing bed.Be sure to take to operate falling of load during travelling.
However,Journal jack(JJ-10011),Aluminum Jack(AJ) and JOurnal Jack with toe can not be used.

Specifications

Model		TB-1030	TB-1530	TB-2530	TB-2545	TB-3530	TB-3545	TB-5030	TB-5045
Applicable item		JJ-1015	JJ-1513	JJ-25**	JJ-25**	JJ-30 JJ-35	JJ-30 JJ-35	JJ-50**	JJ-50**
Length of tracerse	mm	300	300	300	450	300	450	300	450
Length of screw shat	mm	565	565	590	741	625	775	653	803
Height up to bottom surface of jack	mm	85	85	90	90	97	97	108	128
Length of Base	mm	465	465	470	620	505	655	530	680
Width of Base	mm	165	165	185	185	200	200	210	220
Closed height	mm	114	114	123	123	131	131	149	220
Weight (kg)		20	20	25	31	33	38	43	66
handle bar		φ24×535L	φ24×535L	φ30×600L	φ30×600L	φ30×600L	φ30×600L	φ30×600L	φ30×600L

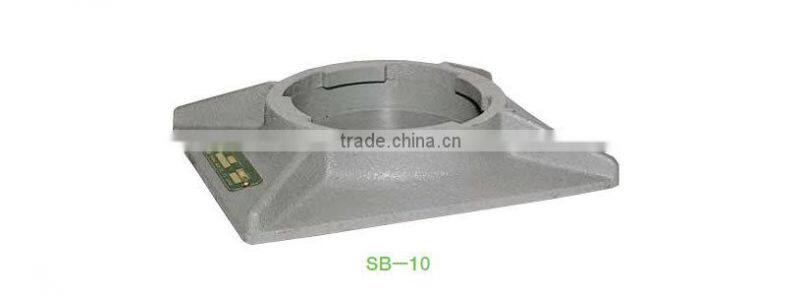

Safety base

Features

In case of unstable area or weak setting base of jacks,safety base is used to stabilize jacks furthermore.
Journal Jacks are made with a structure for setting to the safety base.
Be sure to use safety nut,when base area for jack is set in weak position.
However,Journal Jack(JJ-10011),Aluminum Jack(AJ) and Journal Jack with toe can not used.

Specifications

Model		SB-10	SB-15	SB-25	SB-35	SB-50
Applicable item		JJ-1015	JJ-1513	JJ-25**	JJ-30 JJ-35	JJ-50**
Length	mm	220	240	300	300	400
Width	mm	180	190	200	220	300
Thick of Base	mm	10	12	15	18	19
Height	mm	39.5	41	48	52.5	60.5
Weight (kg)		2.0	5.0	7.5	9.5	20.0

Aluminum Jacks

Features

Light weight Aluminum Jack due to aluminum body.
Aluminum jacks enjoy pad bearings instead of normal bearings.
Light weight,lower height.
Two handle bar can use as one handle bar.

Application

Centering machinery works.
Movement for precision machinery.
Works for construction, higher place job.
Minor movement for heavy machinery.

Specigications

items		aluminum jack 10t	aluminum jack 15t	aluminum jack 25t
model		AJ-1008	AJ-1510	AJ-2510
capacity	kN(tf)	100/10	150/15	250/25
stroke	mm	80	100	100
operating torque	Nm	250	420	700
colsed height:A	mm	175	200	200
head diameter:φB	mm	58	58	73
basic diameter:φC	mm	102	102	122
Dimension (mm)	D	88	103	106.5
Dimension (mm)	K	139	161	183
Weight (kg)		25	37	47
handle bar		φ25×700L	φ32×700L	φ32×800L

Journal Jacks with Toe

Features

Journal Jack with toe is used by inserting toe at lower place.
Jack detached toe can be used as the same as Journal Jack.

Application

Setting for machinery.
Minor adjustment of heavy structure.
Positioning of machine tool.

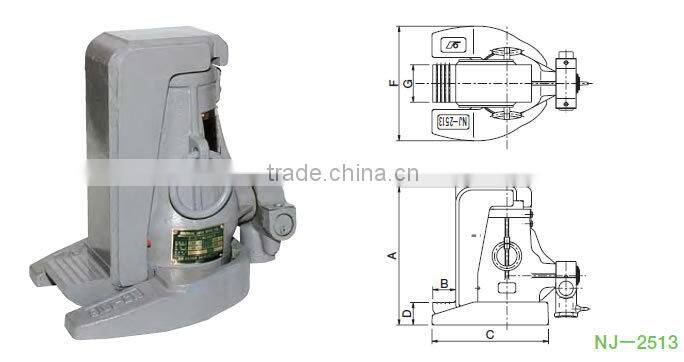

Specigications

Model		NJ-0615	NJ-1013	NJ-1513	NJ-2513
Toe capacity	kN(tf)	60/6	100/10	150/15	250/25
Stroke	mm	150	125	125	130
Operating torque	Nm	210	400	600	960
A	mm	310	290	297	332
B	mm	45	50	50	55
C	mm	208	227	242	280
D	mm	30	40	45	55
E	mm	85	93	101	123
F	mm	195	210	230	275
G	mm	70	75	80	90
Weight approx.	kg	23	29	38	60
Attached handle bar		φ25×600L	φ25×600L	φ25×600L	φ32×700L

Mechanical Pulling Jacks

Application

Pulling heavy loads in shipyard.
A mechanical jack is able to hold its position thanks to an internal screw.

Specigications

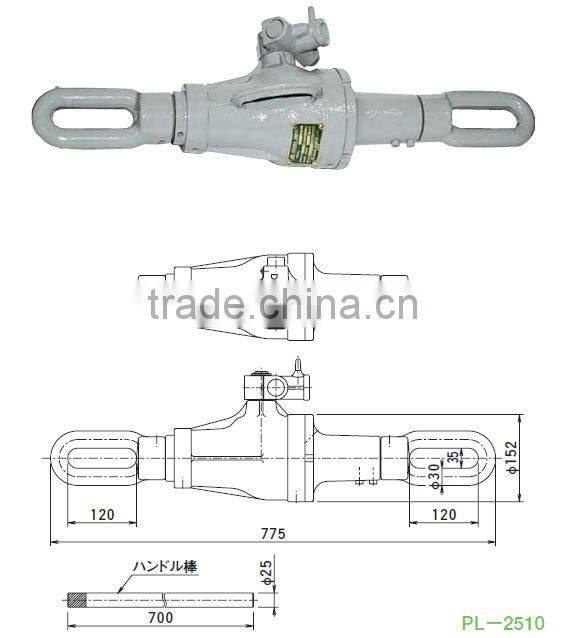

Model		PL-2510
Pulling force	kN(tf)	250/25
Test load	kN(tf)	300/30
Stroke	mm	100
Weight approx.	kg	32
Attached handle bar		φ25×700L

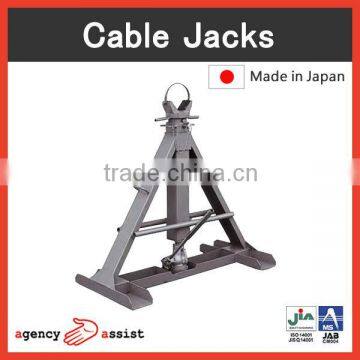

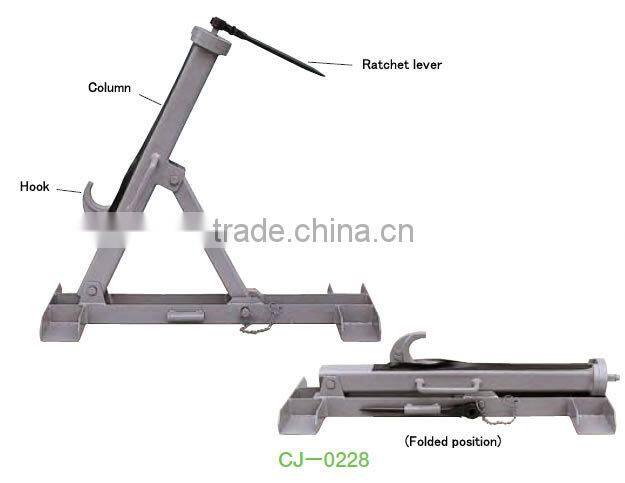

Cable Jacks

Application

Exclusively used for reeling in and out electric cable from cable drums.
Two pieces of jacks can be used as one pair.

Features 2t

Cable jacks are of folding tyoe for easy carrying.
Easy for seting jacks at narrow side.

Features 6t

Two tyoes of jacks of drum diameter from 1100 to 2600 are available.

Features 8t 10t

Using AJ-1510 at driving force position makes jack'soperation easy.
Available for longer width and larger drum diameter.
Main part such as jacks are able to detach easily.

Specigications

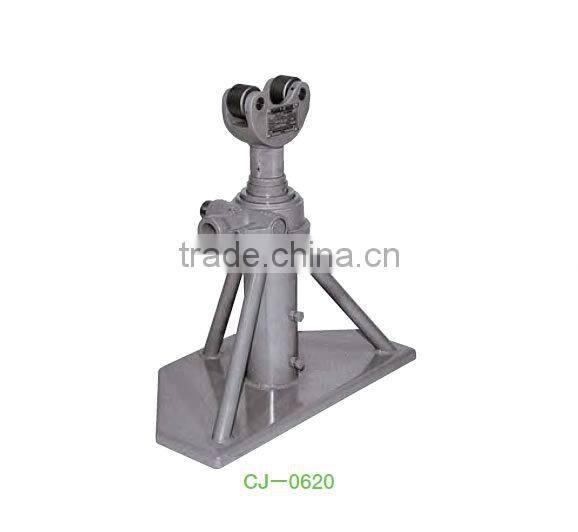

Model		CJ-0228	CJ-0620	CJ-0645	CJ-0808	CJ-1010
Capacity	kN(tf)	20/2	60/6	60/6	80/8	100/10
Stroke	mm	280	200	450	80	100
Overall height	mm	635	-	-	-	-
Closed height	mm	-	530	850	900	1100
Height up to hook	mm	252	-	-	-	-
Balse dimension L*W	mm	680*250	525*300	700*400	900*500	900*500
Weight approx.	kg	14	27	39	75	96
Adjustable extension		-	200	200	400	550
