CE approved!! Small construction front end loader XD920G
I. Features&Benefits
1.The XD920G adopts 4100 diesel engine which offers high power and torque, low fuel consumption, low noise and emission, and high reliability. Different kinds of attachments are provided applicable to different working conditions.
2. XINCHAI (Europe III) engine is for optional.
II.Specifications
Model |
XD920G |
Main specifications | |
Bucket capacity (m3 ) |
0.8 |
Rated load (t) |
1.5 |
Operation Weight (t) |
4.4 |
Lifting time of the arms (s) |
≤6 |
The sum of three items(s) |
≤10 |
Forward gear(km/h) |
I 0-8 II 0-18 |
Reverse gear(km/h) |
I 0-8 II 0-18 |
Max. climbing gradient (°) |
30° |
Dimensions | |
Overall dimension (L×W×H mm) |
5500×1900×2850 |
Wheel base (mm) |
2200 |
Wheel tread(mm) |
1450 |
Max. dumping height(mm) |
2800/3200/3600 |
Dumping reach (mm) |
780 |
Diesel engine | |
Engine model |
YunNei YN33 4100 |
Engine type |
In-line,water-cooling,4-stroke,4 cylinders,direct-injection |
Rated power(kw) |
48 |
Rated speed (r/min) |
2400 |
Total exhaust of cylinder(L) |
3.298 |
Type of starting |
Electric start |
Transmission system | |
Torque converter |
|
Model |
YJ265 |
Type |
Single stage, three elements |
Gearbox |
|
Model |
ZL15 |
Type |
Fixed counter-shaft, power-shift |
Axle and tire |
|
Type of main reducer |
Spiral bevel gear,single stage |
Type of final reducer |
Single stage planetary |
Size of tire |
17.5-16 |
Working device of hydraulic system | |
Model of working pump |
CBG2050 |
Nominal displacement(ml/r) |
50 |
Working system pressure(Mpa) |
17 |
Multi-way directional valve |
ZL15 |
Rated flow(L/min) |
15 |
Steering system | |
Type |
Load-sensing hydraulic steering |
Displacement(ml/r) |
250 |
Max input pressure(Mpa) |
16 |
Brake system | |
Type of traveling brake |
Air over hydraulic brake |
Type of parking brake |
Manual disc brake |

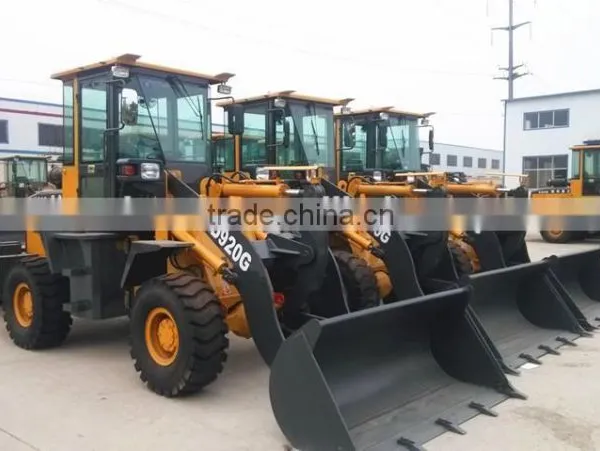

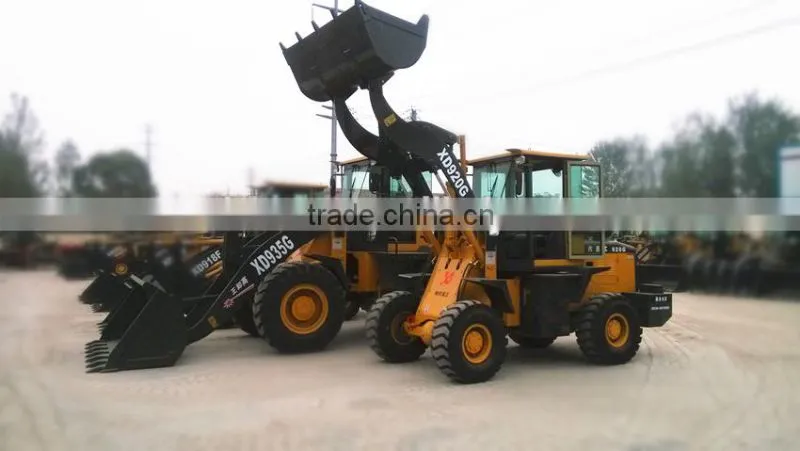

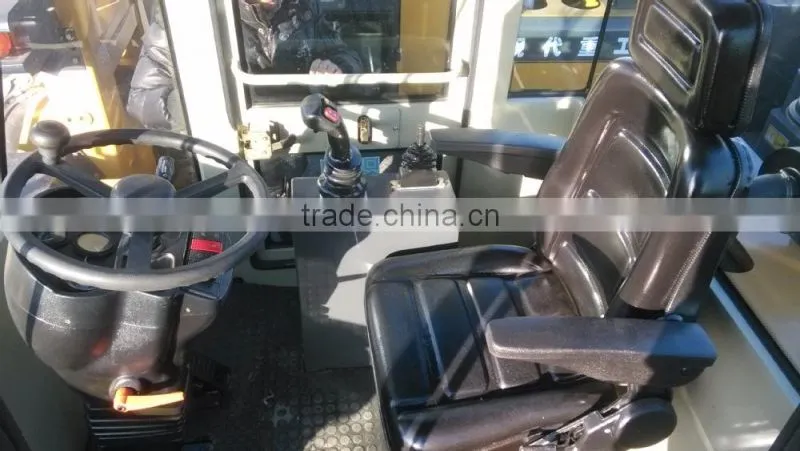

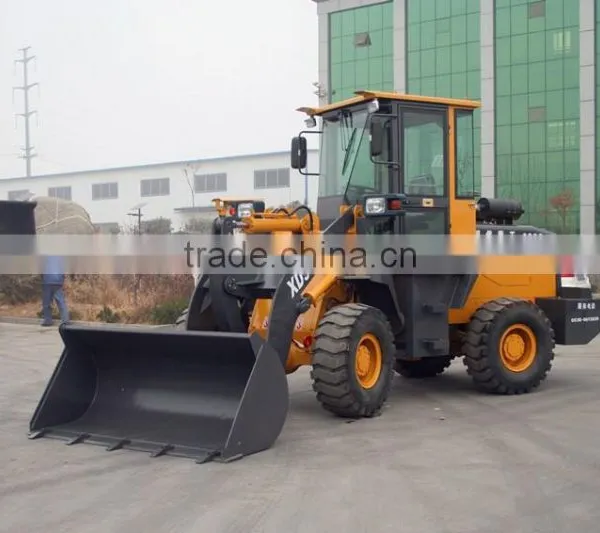

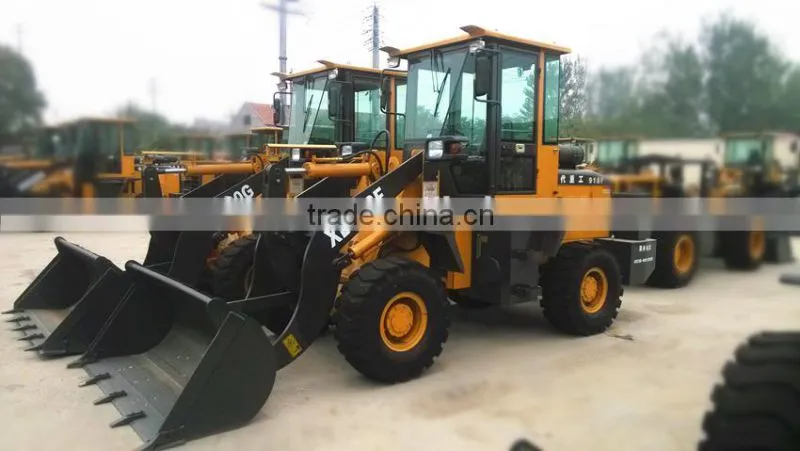

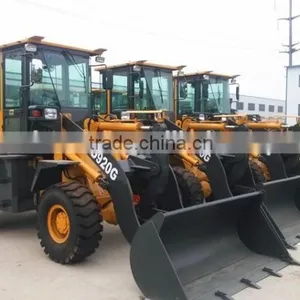

III. Pictures:

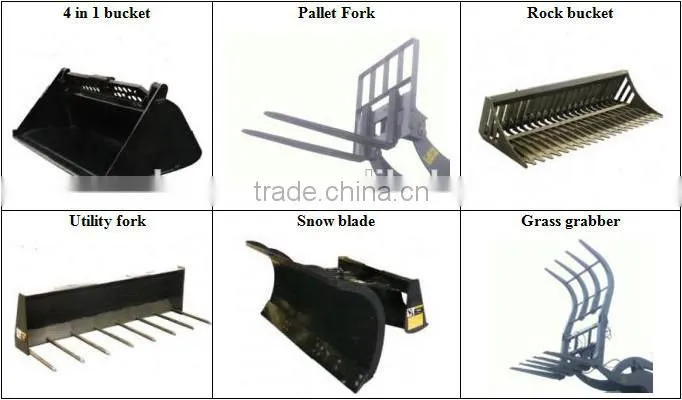

Optional Implements:
Please contact with me if you have any requestment :)
