Tractor towable log trailer with crane/Hydraulic log crane

FOB Price

USD $4,100 - $14,900 / Set

1 Set(Min.Order)

Supply Ability 600 Set / Sets per Month
Port Qingdao

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Other, forestry machinery	Use:	Log loading and transporting
Power Type:	Other, Diesel/ gasoline/ PTO	Place of Origin:	Shandong, China	Brand Name:	SAMTRA
Model Number:	ZM1002, ZM3004, ZM5004, ZM8006	Dimension(LWH):	According to model	Weight:	1010-3200kg
Certification:	CE Certificate	Warranty:	12 Months	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

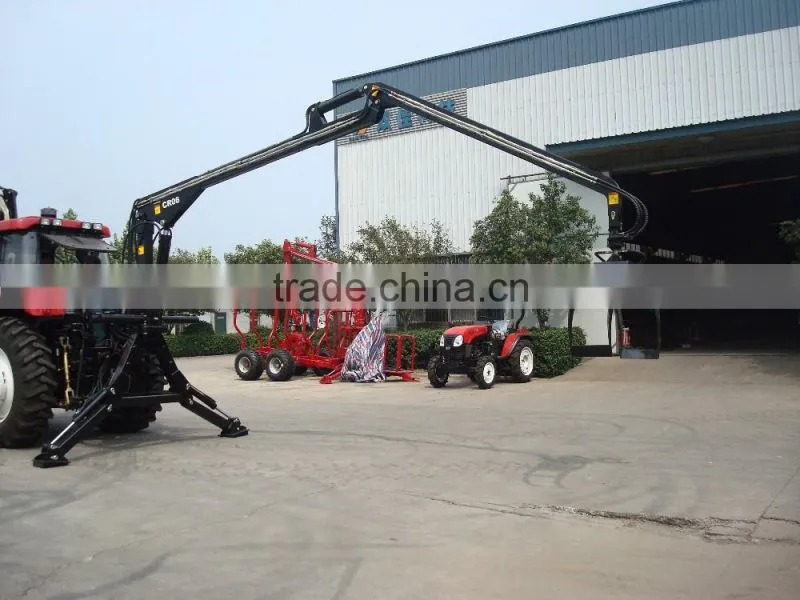

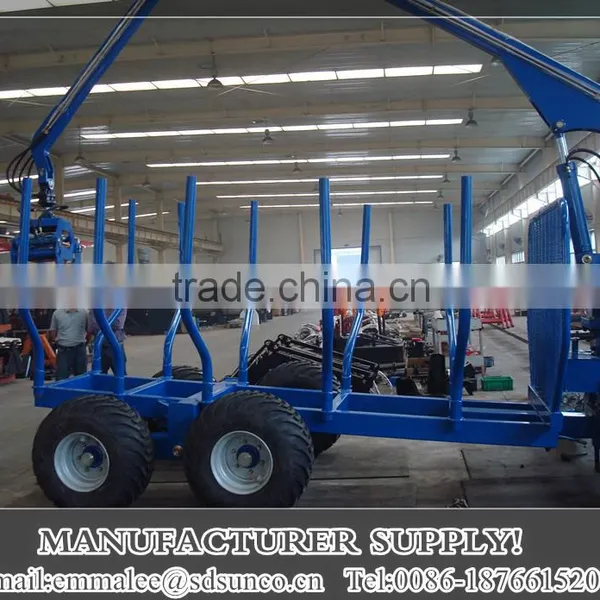

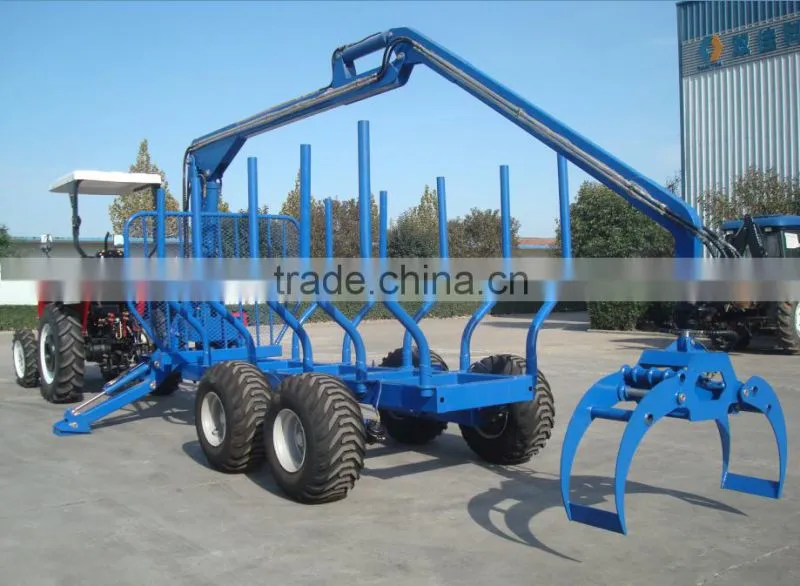

Tractor towable log trailer with crane/Hydraulic log crane

↓↓

Shandong Sunco Agriclutural Machinery Co., Ltd is MANUFACTURER of forestry machinery, main product include log trailer with crane, log splitter, wood chipper, etc.

We total have 6 models log trailer with crane with different loading capacity, such as 1T, 3T, 5T, 8T, 10T, 12T. Please check technical sheet of all models as following:

Model	ZM1002	ZM3004	ZM5004	ZM8006	ZM10006	ZM12006
Matching Power	10-25 hp	20-50 hp	30-60 hp	50-80 hp	70-100 hp	80 -140 hp
Machine Weight (kg)	1010	1790	2040	2750	3000	3200
Trailer Section:
Trailer Model:	TR10	TR30	TR50	TR80	TR100	TR120
N/W of Trailer (kg)	420	690	940	1450	1700	1900
Rated Loading Capacity	1T	3T	5T	8T	10T	12T
Loading Area	0.85 m2	1 m2	1.6 m2	2.2 m2	2.5 m2	2.8 m2
Total Length of Trailer	3.6 m	5.1 m	5.1 m	5.9 m	6.3 m	6.3 m
Trailer Loading Length	2.0 m	3.1 m	3.1 m	3.8 m	4.3 m	4.3 m
Total Width of Trailer	1.4 m	1.6 m	1.8 m	2.2 m	2.3 m	2.5 m
Assistant Hydraulic Steering	No	Standard
Dia.of Traction Hole	33 mm	38 mm
Tire Model	6.00 - 13	7.00 - 16	8.25 - 16	400/60-15.5
Crane Section:
Model	CR02	CR04		CR06
Weight of Crane (kg)	590	1100		1300
Max. Arm Reach	3.5 m	4.3 m		6 m
Lifing Capacity/Arm Reach (kg/m)	400/2, 300/3, 200/3.5	900/2, 760/3, 500/4, 450/4.3		990/2, 760/3, 500/4, 340/5, 240/6
Rotating Angle	370°	400°		400°
Grab Section:
Grab model	TG019	TG024		TG029
Weight of Grab(kg)	90	130		160
Max. Grab Opening Width(mm)	1140	1300		1430
Grabbing Dia. of Logs(mm)	80 - 420	70 - 485		75~530
Power (option):	PTO/ Gasoline Engine/ Diesel Engine

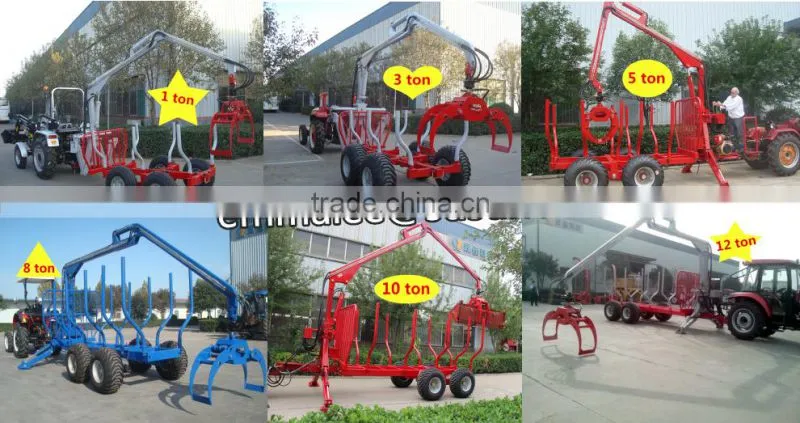

Pictures of all models:

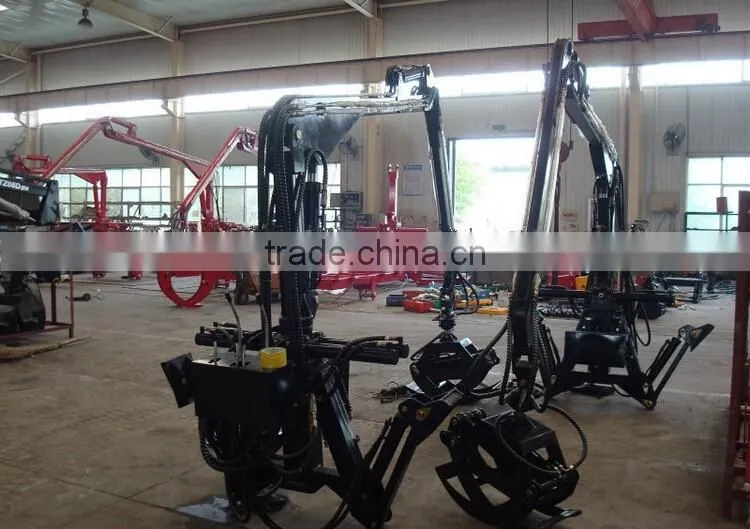

Log crane can be sold seperately.

Q:What is the MOQ?

A:1 SET

Q:What is your advantage?

A: -Complete series available: trailer with crane or separate crane, trailer loading from 1T

to 12Tons

-Material: Q235, Q345 thick steel

-Hydraulic: imported hydraulic system

Q:How can I choose a suitable model?

A: Tell us what's the horsepower of your tractor, we will introduce you suit model and quote for you. If you want to tow by ATV, you can choose 1t or 3t trailer.

Q:Do you have CE certificate?

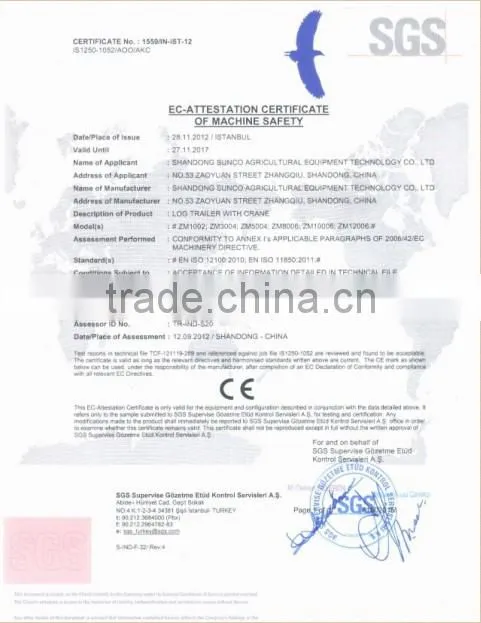

A: Please check our CE as following:

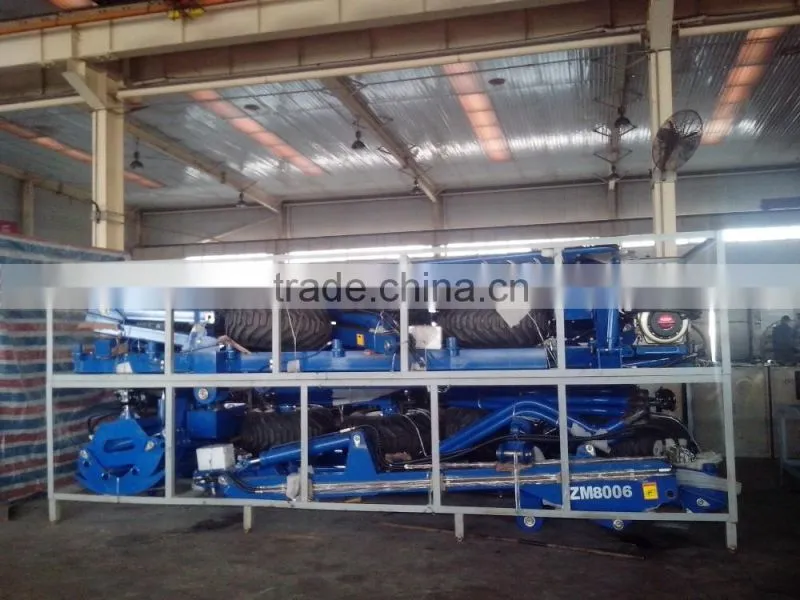

Steel Frame Package:

Please contact with me no hesitate :)
