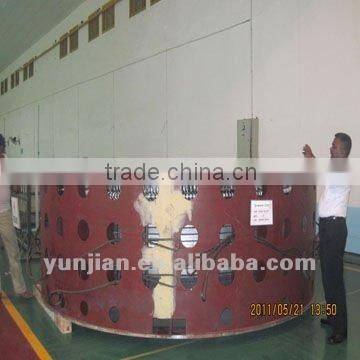

Hydro Synchronous Vertical Generator

Specifications

Generator

The hydro generator is a kind of equipments which is able to transform rotary mechanical energy into electric energy through the main shaft connected with runner of turbine. It has various types: horizontal and vertical according to structural configuration.

Specifications

Good Quality Medium and Small Hydro Power Generator (water turbine generator: 20KW-200MW per unit with 50Hz or 60Hz;

1.Power: 20kw~200Mw
2.Frequency: 50hz or 60hz
3.Output Voltage:400V, 3.3kv, 6.3KV, 10.5kv or 13.8KV
4.Output Type: AC three phase
5.Lifespan: 30~50year

6.Excitation: brushless or SCR(silicon controlled rectifier excitation system,brush, thyristor excitation)


• Good Quality Medium and Small Hydro Power Generator / water turbine generator Unit with range 20kw-200MW per unit;
• Offer all types of generators, turbines, hydropower equipment, complete set of hydropower and other power plants, etc.
• Equipments would be produced according your request
• Engineers for erection and commission at hydropower plant are available!
• There should be some key parameters (such as head, flow discharge and capacity, if need turbine generator too, please supply the frequency and output voltage, if not, give us the rotation speed) in inquiry.
• Note: The company can design and manufacture various types of hydro generator units with 0.42-7m in turbine runner diameter and 20KW-200MW in unit capacity, such as Tubular type, Axial(Kaplan) type, Francis type, Inclined jet(Turgo) type and Impulse(Pelton) type ones, and auxiliary equipments.
