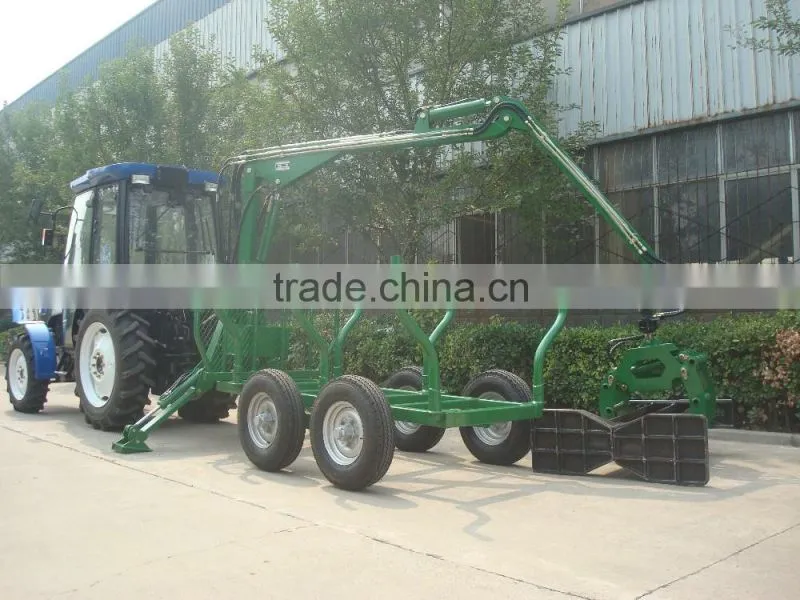

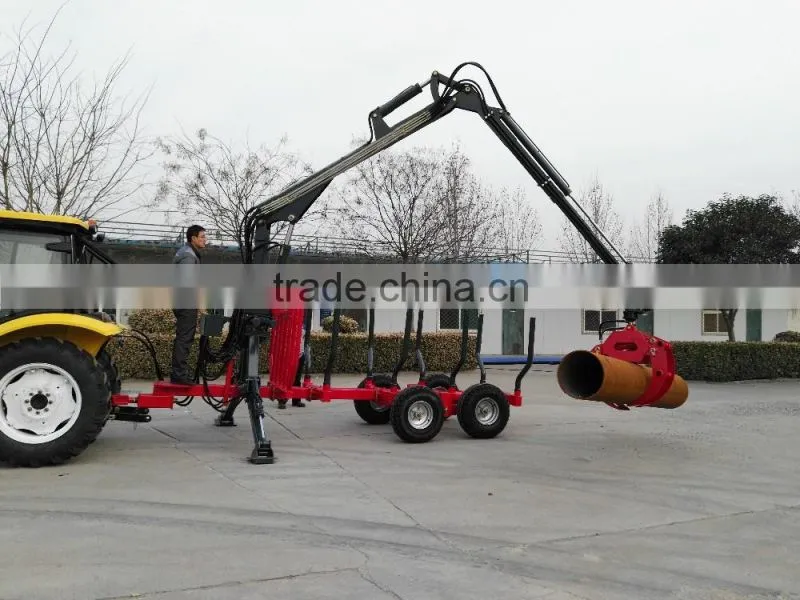

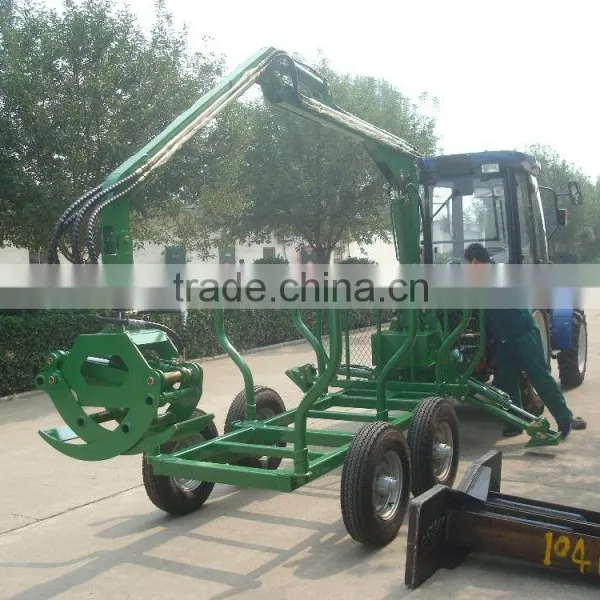

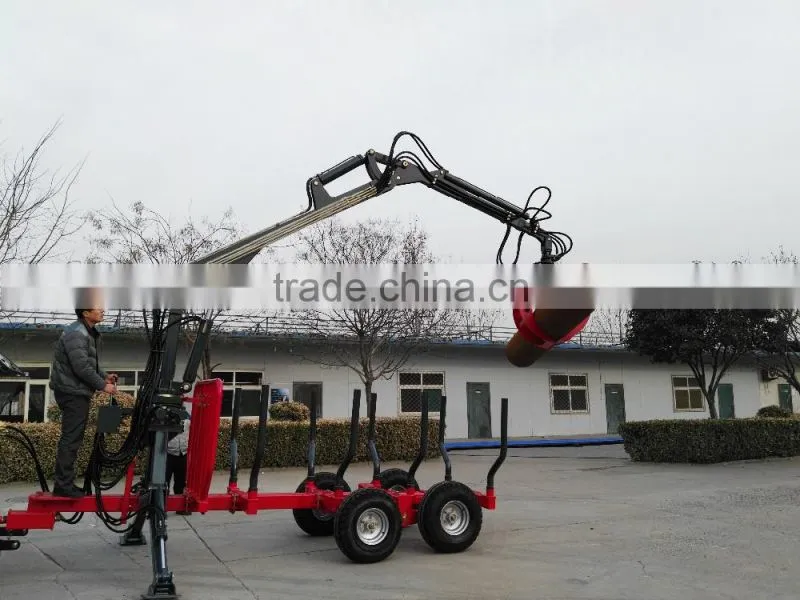

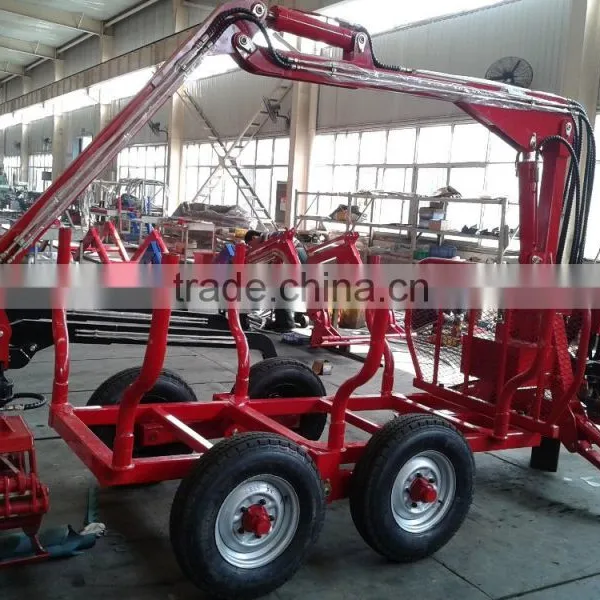

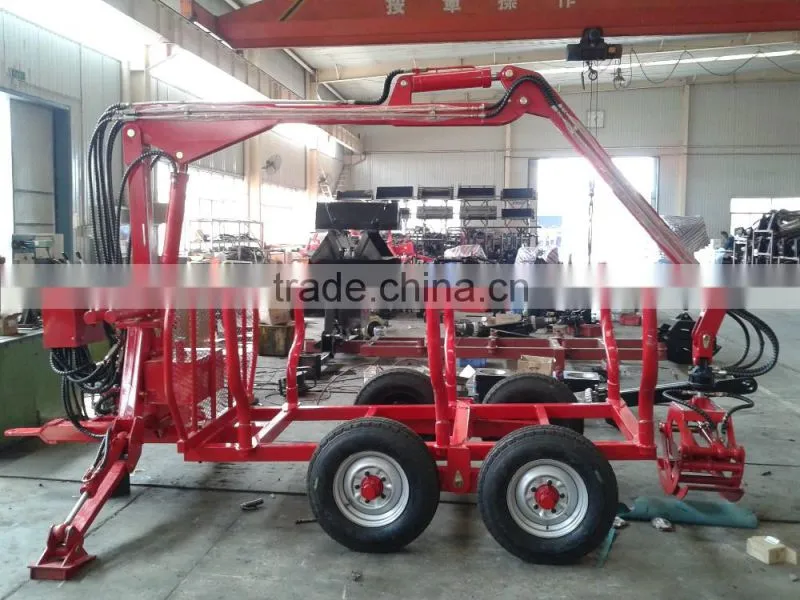

1ton 3ton atv log trailer with crane for forestry working

Log Trailer with Crane

1T

3T

5T

8T

 Specifications

Model

ZM1002

ZM3004

ZM5004

ZM8006

Matching Tractor or ATV

10-20 hp

20-40 hp

50-60 hp

70-80 hp

Net Weight

600kg

1200kg

1500kg

1800kg

Dimension(mm)

2700x2000x700

4200x2200x800

4200x2200x800

5000x2200x800

Load

Model

TR10

TR30

TR50

TR80

Load Capacity

1000kg

3000kg

5000kg

8000kg

Load Area

0.5m2

1m2

1.6m2

2.3m2

Total Length

3.6m

5.1m

5.1m

5.7m

Trailer Loading Length

2.0m

3.1 m

3.1 m

3.7 m

Total Width

1.3

1.5 m

1.8 m

2.2 m

Frame tube dimensions(mm)

80x80x5

120x120x6

120x120x6

160x160x6

Shaft Journals

20 mm

20 mm

33 mm

33 mm

Optional: Brakes System

Without brakes

0B1

0B2

0B3

0B4

Hydraulic brakes in front hubs

2B1

2B2

2B3

2B4

Hydraulic brakes in 4 hubs

4B1

4B2

4B3

4B4

Crane

Model

CR02

CR04

CR04

 CR06

Grappling area

0.18 m2

0.28 m2

0.28 m2

0.28 m2

Grappling Min Diameter

75mm

75mm

75mm

75mm

Reach Max.

3.5m

4.3  m

4.3  m

6  m

Lift capacity,kg/outreach,m

( without Grapple and Rotator)

400/2,
300/3,
200/3.5

1280/2,760/3,
500/4,450/4.3

1280/2,760/3,
500/4,450/4.3

1280/2,760/3,500/4,340/5,240/6

Valve

Multi-Lever

Rotator

SSA10

SSA30

SSA30

SSA50

Recommended pump capacity

18—50 l/min

Slewing Angle

400°

400°

400°

400°

 Optional: Hydraulic Center

A

B

Hydraulic Pump

E310

E316

E320

Engine

6.5hp

8.5hp

12hp-13hp

Net Weight(kg)

600

1200

1500

1800
