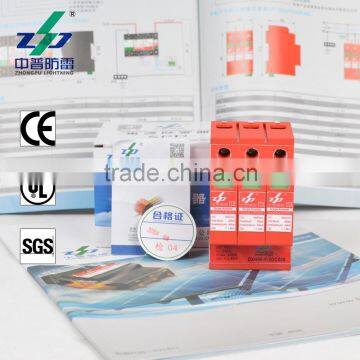

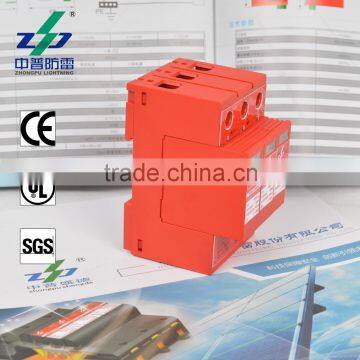

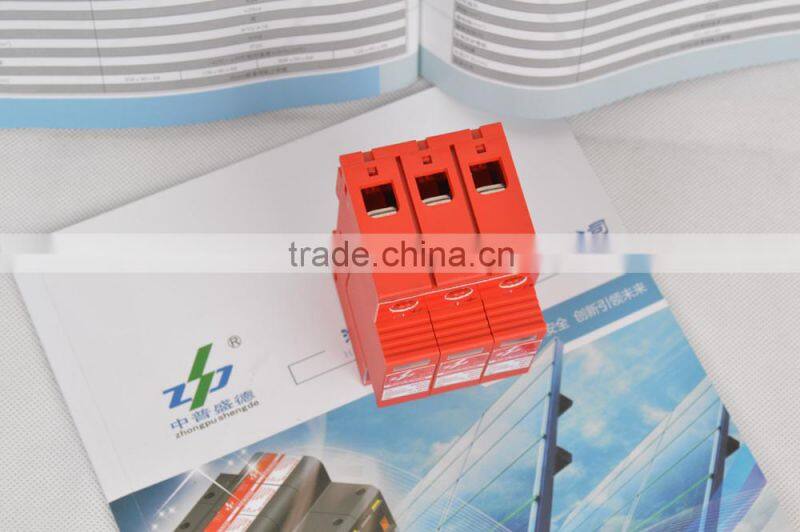

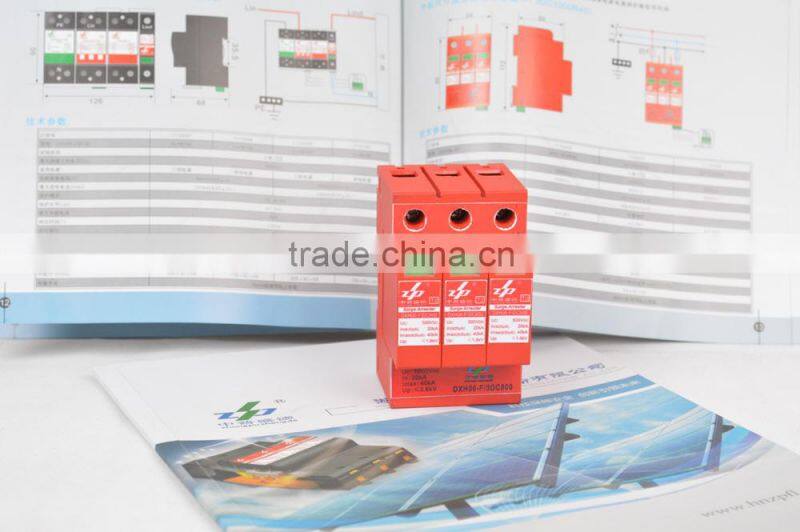

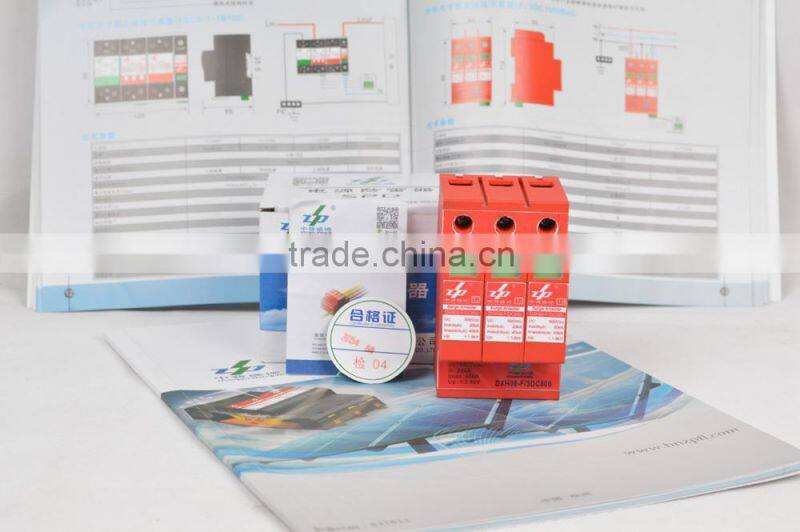

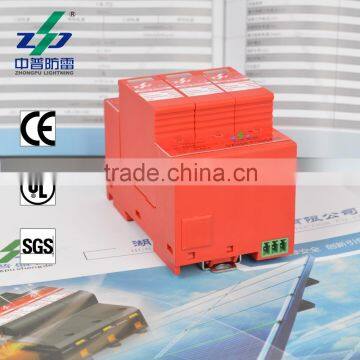

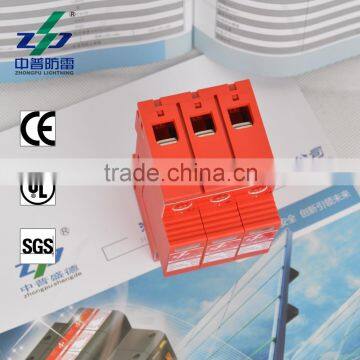

Help CenterUc 1000V Photovoltaic DC Solar Energy Power Surge Protector
Related Products
-
Uc 1300V UL Certification PV Solar Energy Surge ProtectionUS$ 30 - 40MOQ: 1 Set -
Uc 1000V Photovoltaic Solar Energy Surge ProtectionUS$ 30 - 45MOQ: 1 Set
-
Uc 1300V UL Certification PV Solar Energy Lightning ProtectionUS$ 40 - 50MOQ: 1 Set
-
Uc 1300V UL Certification PV Solar Energy Lightning Surge ProtectorUS$ 30 - 40MOQ: 1 Set
-
Uc 1000V Photovoltaic Solar Energy Surge Protection DeviceUS$ 35 - 45MOQ: 1 Set
1. APPLICATION
Designed especially for surge protection of the PV strings; apply to the PV power grid-connection system.
2.TECHNICALS PARAMETERS
Model DXH06-F/ |
3DC1000R40 |
3DC800R40 |
3DC600R40 |
|
Type (IEC 61643-1) |
Class II /Type 2 |
|||
Max. Continuous Operating Voltage(Uc) |
1300VDC |
1000VDC |
800VDC |
|
Nominal Continuous Operating Voltage(Un) |
1000VDC |
800VDC |
600VDC |
|
Nominal Discharge Current Capacity (In) |
20kA(8/20μs) |
|||
Max. Discharge Current Capacity (Imax) |
40kA(8/20μs) |
|||
Protection Mode |
Full Mode Protection |
|||
Protection Level(Up) |
≤4.0kv |
≤3.6kv |
≤3.2kv |
|
Response Time(T) |
<25ns |
|||
Fault Indicator |
Available |
|||
Live Line(mm² ) |
≥6 |
|||
Earth line(mm² ) |
≥10 |
|||
Grounding Resistance(R) |
≤4Ω |
|||
Protection Level of the Shell |
IP20 |
|||
Operating Temperature |
-40℃~+70℃ |
|||

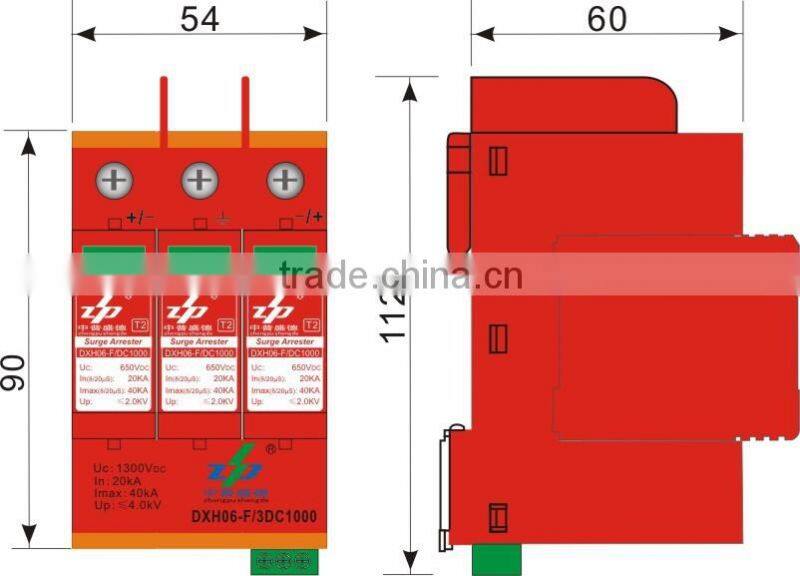

Overall Size(mm) |
54×90×65 |
|||

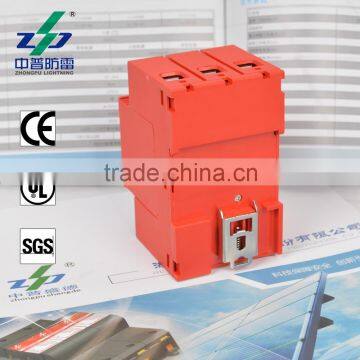

Installation Method |
35 mm DIN-rail |
|||

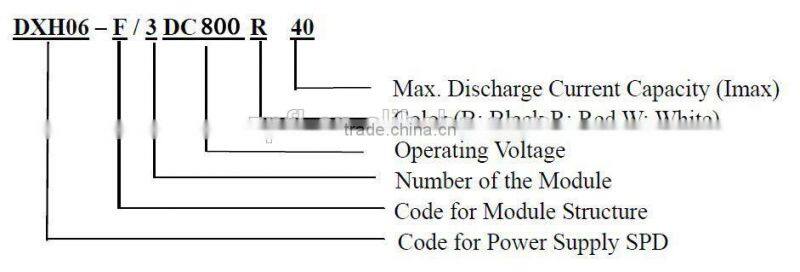

3.NAMING RULES:

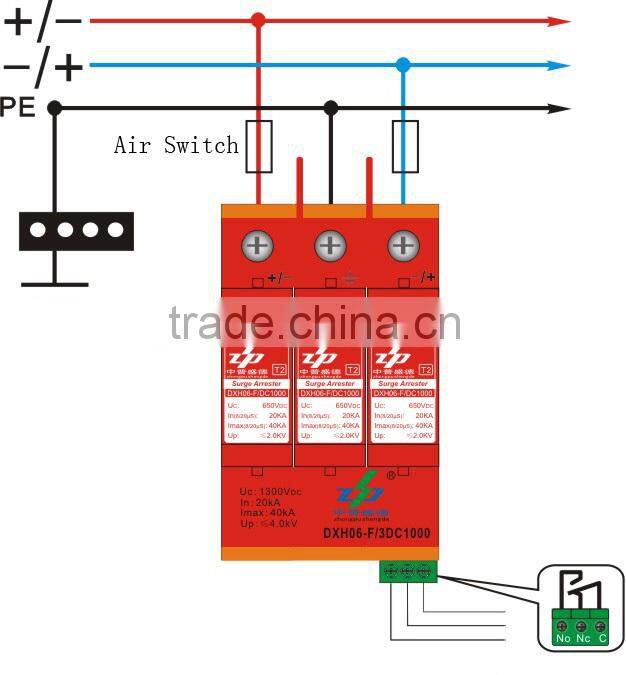

4. WIRING DIAGRAM
5.Main Features:
l Use Y-shaped connection, Full mode protection of the L+-L-/PE;
l Use the temperature control circuit break protection technology,to avoid the accident;
l With the remote alarm contact signal, convenient to remote monitoring of the system;
l The module has normal and fault indication, with fast response speed and low residual voltage.
6.Installation Method and Attentions
1) Wiring as shown in Figure;
2) The connecting lead shall use many strands of copper wires of more than 6mm2, and the earth wire shall use many strands of copper wires of more than 10mm2. The connecting wire shall be as short, straight and coarse as possible. Grounding Resistance should be no less than 4Ω;
3) The front of lightning arrester shall be connected with proper fuse in series or be opened;
4) The power supply must be cut off while conducting the installation. It is prohibited to conduct the operation with the charge. The connecting lead must conform to the requirement;
5) After completing the installation, the lightning protection module shall be inserted tightly and inspected;
6) When there is RED for the fault indicator of the lightning arrester module (warning signal of remote-signaling port), it indicates that the lightning protection module has degraded and shall be replaced;
7) The SPD needn't special maintenance, but only check the connection and indicating state periodically.
7. Certificates:
