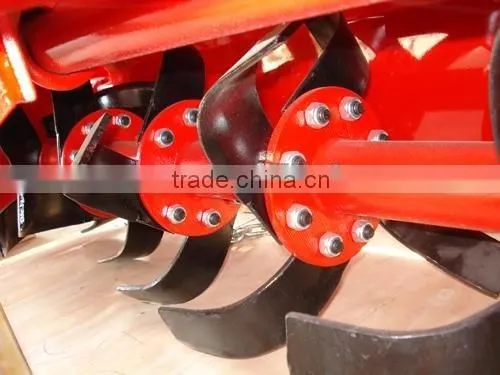

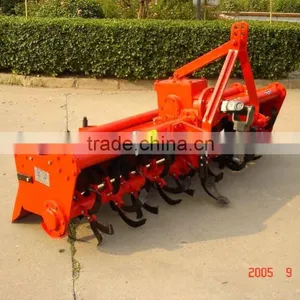

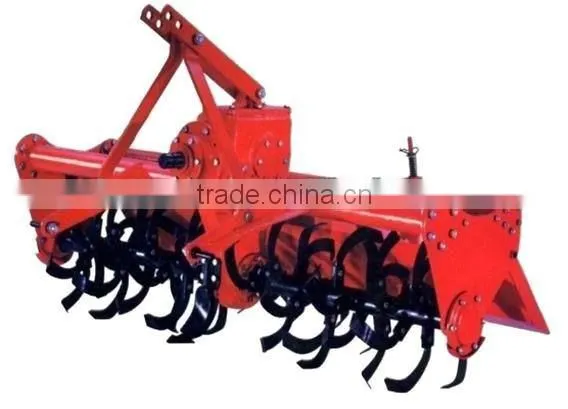

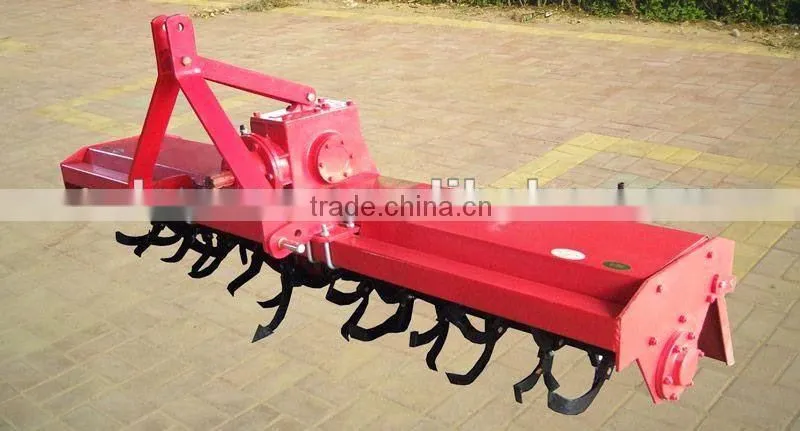

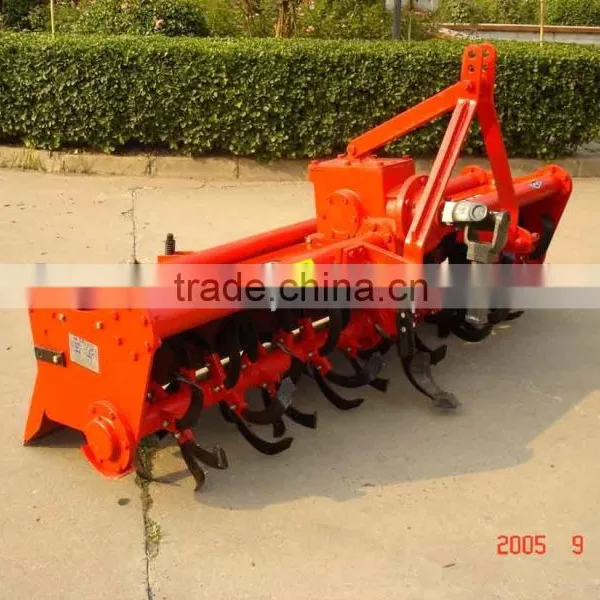

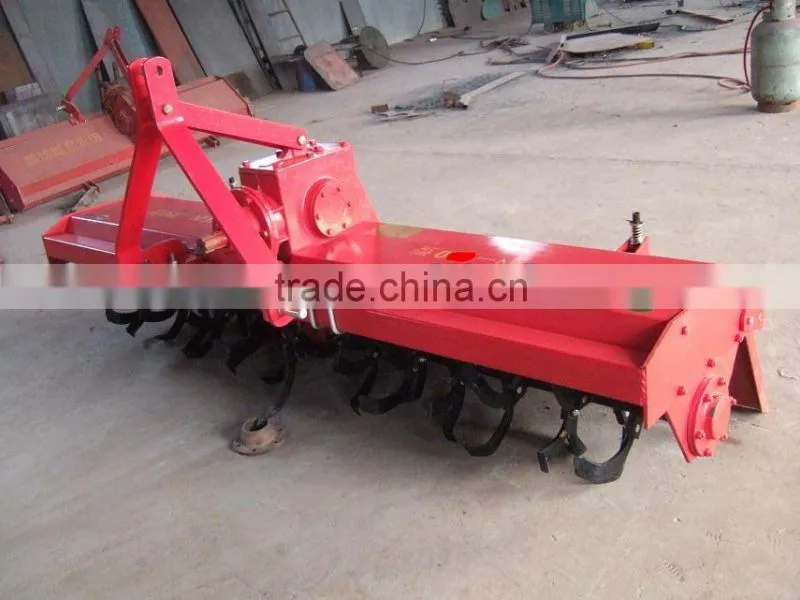

Rotary Tiller (Cultivator) for Tractor
Description:
RT Series Rotary Tiller adopts middle gear transmission system, and is mounted with the tractor of 12-120hp tractor. Tractor’s wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is excellent. So it can be used on dry and paddy field. At the same time, the working time is reduced, the laboring is saved and the cost is lowered.
Features:
1 Compact Structure, CE Certificate
2 Stable Hydraulic System
3 Easy Operation and High efficiency
4 Contact Aaron +86 152 6416 6525 for details
Application:
RT Series Rotary Tiller for tractor is widely used in farm, grazing land, paddy land etc, mainly in tilling or cultivating of dry land or paddy land.
Specifications:
Model |
|
RT-100 |
RT-125 |
RT-140 |
RT-150 |
RT-160 |
RT-180 |
RT-200 |
RT-220 |
RT-250 |
RT-300 |
Matching Power (hp) |
12-15 |
18-20 |
20-25 |
25-30 |
30-40 |
50-55 |
55-75 |
60-80 |
75-80 |
80-120 |
|
Working Width (mm) |
1000 |
1250 |
1400 |
1500 |
1600 |
1800 |
2000 |
2200 |
2500 |
3000 |
|
Working Depth (mm) |
Dry land |
120-160 |
120-180 |
||||||||
Peddy land |
140-160 |
140-200 |
|||||||||
No. of blades |
22 |
26 |
30 |
34 |
38 |
50 |
54 |
58 |
62 |
76 |
|
Type of blade |
IT225 |
IT245 |
|||||||||
Total weight (kg) |
200 |
220 |
230 |
240 |
260 |
415 |
430 |
445 |
460 |
520 |
|
Overall dimensions (mm) |
L |
900 |
900 |
900 |
900 |
900 |
1020 |
1020 |
1020 |
1020 |
1020 |
W |
1050 |
1350 |
1500 |
1600 |
1700 |
1900 |
2100 |
2300 |
2600 |
3100 |
|
H |
950 |
1000 |
1000 |
1000 |
1000 |
1152 |
1152 |
1152 |
1152 |
1152 |
|
Lingkage |
|
3-point linkage |
|||||||||
Our Advantages:
1. Strong Technical Support:
More than 80 professional and technical personnels;
Top universities and institutes cooperator;
A subordinate to Shandong Agricultural Machinery Research Institute
2. Top Quality Assurance:
Strict control and selection of materials;
Completely self manufactured and installed;
Advanced equipments and first-class production technology;
Sound management system and solid economic strength
3. Advanced Testing Measures:
Exclusive R&D, testing center;
Capable of undertaking national research projects;
Exclusive professional platform
4. Sound after-sale system, sincere and all-aspect service
5. OEM service is acceptable, every products can be customized
