2014 Saidy Brand HBT30-10SD electrical powercement pump
Technology:
- use S-valve to switch the direction, for fine stone concrete conveying
- good sealing S-valve, installed with floating wear resistant ring
- High-quality wear resistant alloy components for long service-life
- high delivery pressure for demand of high-rise and long distance projects
- double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
- air cooling system, without dependence of external water supply
- with re-pumping function to smooth construction of better accessibility
- automatic lubrication system for long service-life
- PLC system to ensure best electrical control performance
-
equipped with wired remote controller, easy to operate
Product name: fine aggregate concrete pump light concrete pump electric power concrete pump concrete pump
specification:
Model No./Concrete pump |
HBT30-10SD |
Max. theoretical concrete output(m³/h) |
Low pressure 32 /high pressure 20 |
Max. theoretical concrete pumping pressure(Mpa) |
Low pressure 5.5 /high pressure 10 |
Theoretical vertical conveying height(m) |
130 |
Theoretical level transmission distance(m) |
350 |
Allowing the concrete slump(mm) |
100-230 |
Max. Aggregate particles(mm) |
25/30 |
Hopper volume(m³) |
0.4 |
Filling height(mm) |
1000 |
Concrete cylinder diameter × stroke(mm) |
Φ140×1000 |
Main oil cylinder diameter(mm) |
Φ90 |
Max stroke(mm) |
1000 |
Dynamic brand |
electric motor |
Dynamic model |
3-phase asynchronous motor |
Rated power(kw) |
45 |
Fuel consumption(g/h.kw) |
N/A |
Hydraulic system |
Double circuit opening system |
Brand of main pump |
Kavasaki |
Discharge of main pump(ml) |
112 |
Max. hydraulic system pressure(Mpa) |
25 |
Hydraulic oil tank volume(L) |
150 |
The radiator cooling type |
Air cooling system |
Electric control |
PLC |
Concrete tube conveying diameter(mm) |
Φ76/Φ89 |
Max. towing speed(km/h) |
15 |
Overall dimension(L×W×H)(mm) |
3770×1420×1620 |
Total weight(kg) |
2200kg |
Hydraulic pump type |
Ram pump |
Areas of application:
The Saidy concrete pumps are based on technical pioneer achievements. They keep researching and developing new technology - and have been doing so for many years!They are the national initiative equipment for fine stone concrete conveying and won two national patents.
·Fine stone concrete conveying
·Floor heating construction
·Tunnel and underground construction
·Mortar conveying
·Used as spray pump when Installed with incidental spraying equipment, for concrete, mortar, refractory material and green soil spraying
·HBT40~80 Concrete pumps are applied for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power, mining and national defense.
Detail picture
hydraulic pump
Germany's OMRON electrical component
Position selector valve
Glasses plant
S-shaped pipe valve
Seal ring

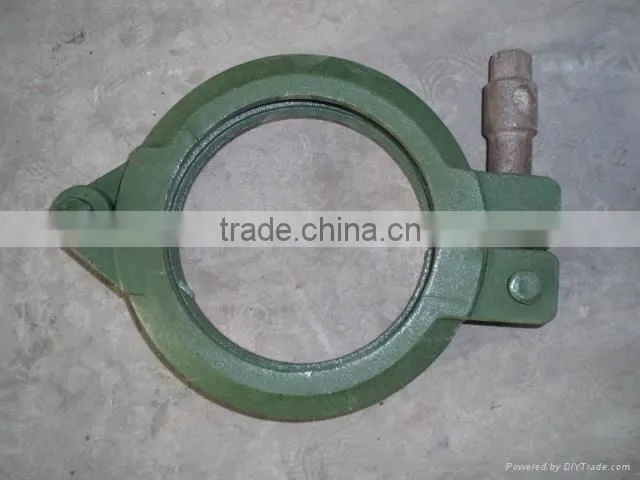

Clamp
Payment terms:
40% by T/T as advance payment with 7days after the contract signed, the balance of 60% paid after buyer’s products inspection in seller’s factory or seller send the finished pictures to buyer and 5 days before shipment.
Delivery Schedule:
Delivery should be within 20 days from the date of receipt of 40% down payment.
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other manmade reasons are excluded.
