1. It is a new type of high molecule engineering nylon pipes, and a patented product developed by our company with independent intellectual property rights;
2. Widely used in long distance, high pressure industrial pipeline conveying of powder, slurry, fluid and gas to solve the engineering problems, i.e. heavy wear, corrosion, scale buildup, high medium temperature, and construction difficulties and other issues;
3. Taking the place of metal pipe, PE pipe, ceramic pipe.

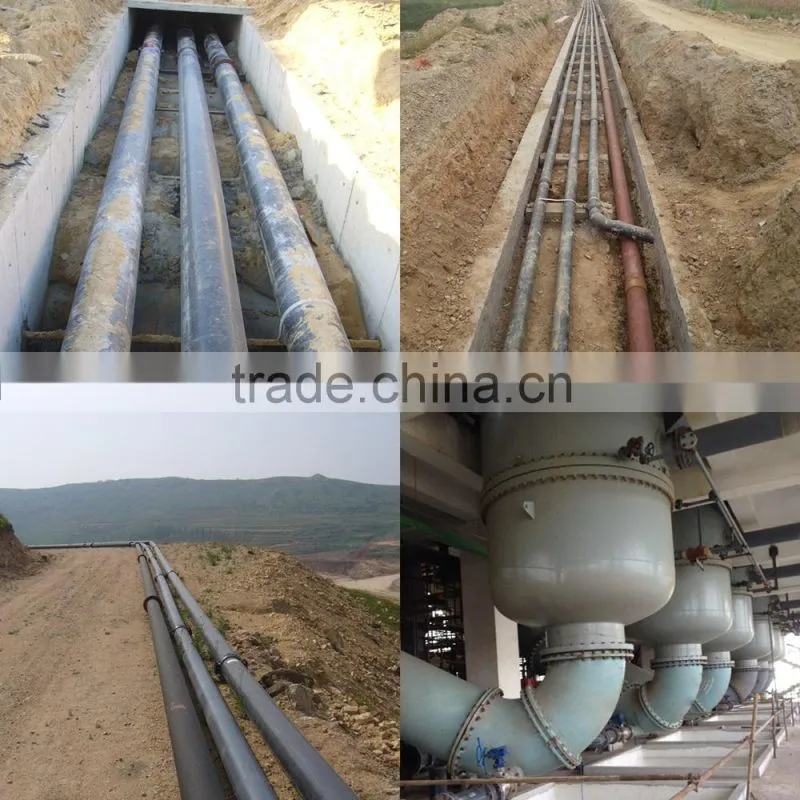

The main application:
1.Tailings transportion
2. Coal-water slurry transportation; gas discharge;etc
3. Pneumatic ash conveying, chemical water transportion
4. Corrosive medium
5.Sea salt transprt, the brine transportation
6. Pulp conveying, Metallurgical slag transport, lead grain conveying, Aluminum powder conveying
7.Industrial wastewater treatment system piping, urban sewage sludge discharge pipe
1. High wear resistance and corrosion preventive
2. Self-lubricating, high shock resistance, Non adhesion
3. High and low temperature resistance
4. resistance to environmental stress cracking resistance
5. It is more economic than steel pipe
Steel frame reinforced nylon pipe | |||||
| Model | OD |
Wall thickness |
Nominal pressure |
Thermal conductivity |
Linear expansion index |
| DN200 | 219mm | 17mm | 3 MPa | 0.233W(m.k) | 6.5*10-5 1/℃ |
| DN250 | 273mm | 25mm | 3 MPa | ||
| DN300 | 325mm | 30mm | 3 MPa | ||
| DN350 | 377mm | 38mm | 2.5 MPa | ||
| DN400 | 426mm | 43mm | 2.5 MPa | ||
| DN450 | 480mm | 46mm | 2.5 MPa | ||
| DN500 | 530mm | 57mm | 1.6 MPa | ||
| DN600 | 630mm | 74mm | 1.2 MPa | ||
| DN700 | 720mm | 98mm | 1 MPa | ||
| DN800 | 820mm | 136mm |
1 MPa |
||
Jinbiao Li
Skype ID :wang.dave3
Mobil:86-15861982776
Customized nylon pipe
