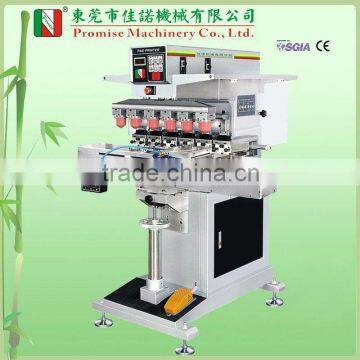

6 Colour Shuttle Ink Tray Pad Printer (Model JN-P6-200S)

Specifications

1. German FESTO cylinder.
2. Japanese SMC solenoid valve.
3. Well-built structure, precise printing.
4. CE approved.

6-Color Inktray Pad Printer with Shuttle JN-P6-200S

6-Color inktray pad printer with shuttle apply to printing a single product with for chromatic registration at one time. The shuttle table can achieve accurate precision chromatic registration. It save more operating procedures to increase work efficiency. Four color pad printing machine can also work as single colour, double colour, three colour, four colour or five color pad printer to enhance efficience of relative colours printing requiements.
It fits for printing a variety of materials: Metal, glass, ceramics, plastics and so on. Articles with small plane area, or irregular arc surface, such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts, etc. Are all can be achieved precision pad printing.

Features:
1. Advanced computerized system control, easy operation.
2. Built-in LED digital counter.
3. Light-weight, strong aluminum cast machine frame structure, surface high-temp paint, beautiful and practical.
4. Oil ink roller assembly and disassembly, and easy to clean.
5. Ink trays, work table, Print pad, printing stroke and printing speed can be adjustable independently for easy color registration and different printing requirements.
6. Automatic balanced squeegee, scraping the oil neat.
7. Quick adjusting X, Y base, accurate color registration.
8. Printing ink can stick two in order to obtain a larger printing ink.
9. Ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning.
10. Pneumatically driven adopt from German FESTO or Japan SMC, can adjust the movement speed of each part.
11. Emergency stop system to ensure the safety of operator.
12. Easy clean ink tray, quick plate change.
13. Hot air dryer device.

Specifications:
Model No.: JN-P6-200S
Operation: Semi-Automatic
Print Color: 6 color
Work station: 1 pc
Cylinder stroke: 200mm
Standard plate size: 100 x 150mm
Maximum printing area: 60 x 110mm
Maximum speed: 400 Pcs/Hr
Maximum printing height: 180mm
Voltage: 110V/220V   60Hz/50Hz
Power: 35W
Air requirements: 6 Bar
Air Consumption: 82 Liter/Min
Machine size: 1120 x 910 x 1450 mm
Machine Weight: 220Kgs
