MC Nylon Rod Nylon Bar Nylon Pa6 Rod
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HongBao | |
| Model Number | Customized |
Product Description

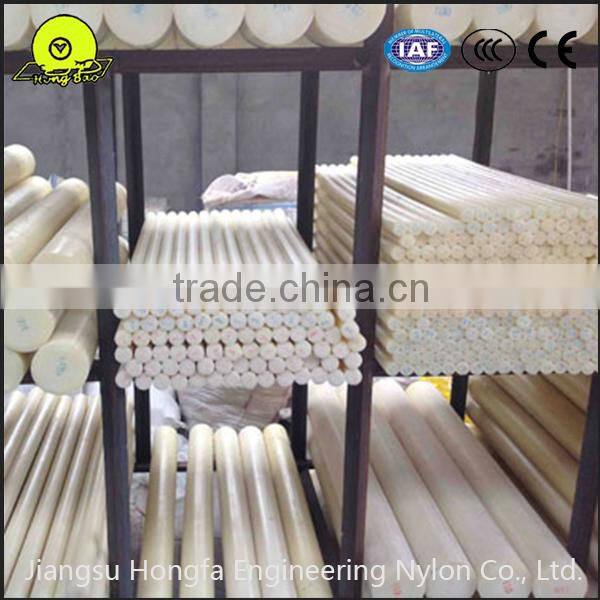

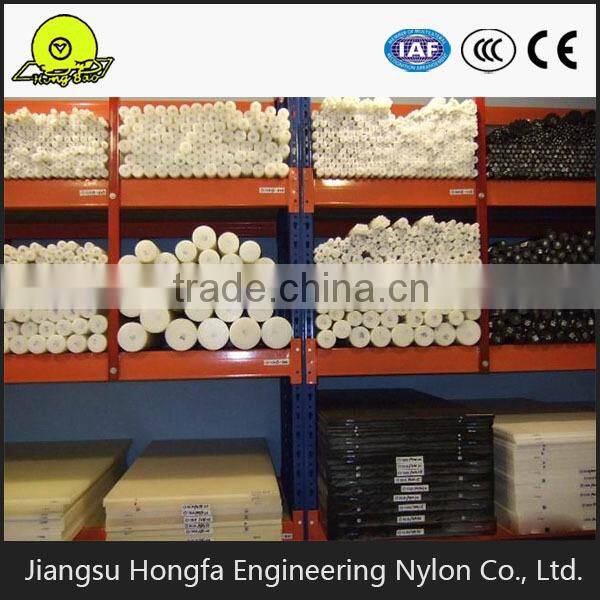

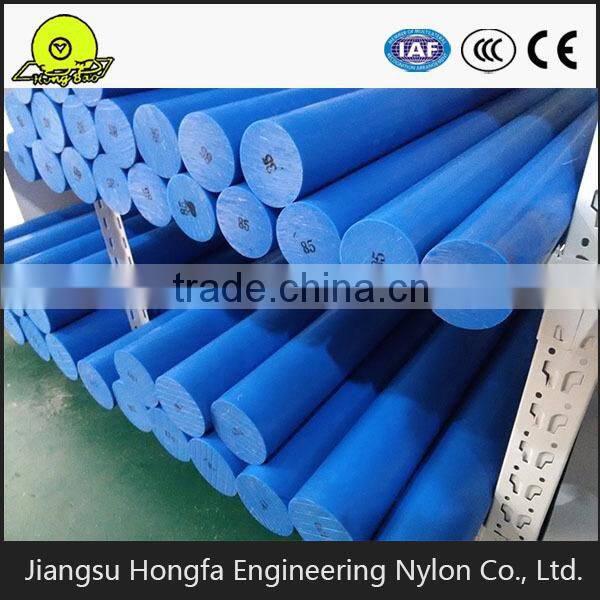

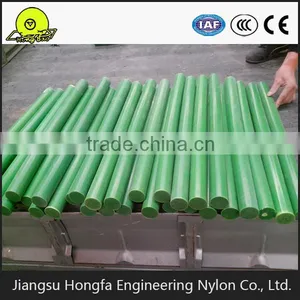

MC nylon rod nylon bar nylon pa6 rod
MC Nylon Rod (PA6) also named Monomer Casting Nylon is a engineering plastic rod which is widely usded in all industrial area . It’s light,high strength,wear-resisting,insulating and so on. So it is mainly used as gears and parts,chemical machinery,electric parts,automobile parts,chemical equipment,etc…
Main Features
| Category | Performance | Units (conditions) | Numerical | ||
| Physical Performance | Density | g/cm3 | 1.14~1.16 | ||
| Water Absorption | % | 0.9 | |||
| Thermal Performance | Martin Heat Resistance | ℃ | 67~74 | ||
| Highest temperature | ℃ | 120 | |||
| Minimum temperature | ℃ | -40 | |||
| Distortion Temperature | ℃ | 120 | |||
| Heat Conductivity Coefficient | w/m .℃ | 0.28~0.29 | |||
| Coefficient of linear expansion | 10-5/℃ | 4~7 | |||
| Combustibility | self-extinguish | ||||
| Mechanical Performance | Tensile Strength | Mpa > | 75 | ||
| Elastic Tensile modulus | 104Mpa | 0.392(40000) | |||
| Compressive Strength | Mpa > | 100 | |||
| Bending strength | Mpa > | 140 | |||
| The impact strength (no gap) | KJ/m2 > | 510 | |||
| Elongation | % | 20 | |||
| Hardness | HPM(*) > | 80~90 | |||
| Fatigue Strength | 107kg/cm2 | 200 | |||
| Friction Coefficient | oil-free lubrication | 0.09~0.3 | |||
30 Years of production experience
Established in 1986, Jiangsu Hongfa specializes in researching, developing and manufacturing different kinds of Special Casting Nylon and composite reinforced nylon.
Various kinds of products
The company can provide steel frame reinforced nylon pipe, MC nylon pipe, nylon gear, nylon bushing, nylon pulley, nylon machine tool shield and etc.
Comprehensive quality management system
The company approved by GB/T 19001-ISO9001.2000, and has the professional QC team which can control the raw material purchase, products production, and after service.
