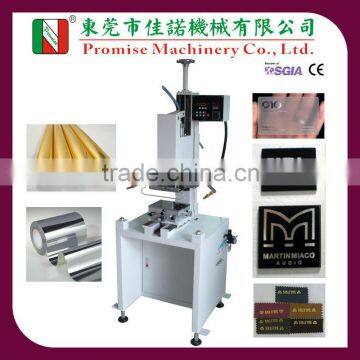

JN-HSA200F Automic Sliding Worktable Flat Hot Foil Stamping Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 120 Set / Sets per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Letterpress
Place of Origin	Guangdong, China	Brand Name	PROMISE
Model Number	JN-HSA200F	Usage	Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer
Automatic Grade	Semi-Automatic	Voltage	220V
Gross Power	1000W	Dimensions(LWH)	720 x 850 x 1650mm
Weight	160	Certification	CE Approved
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1. Stamping Size: 150 x 200 mm
2. Automatic sliding worktable
3. CE approved

Automatic Sliding Worktable Flat Foil Hot Stamping Machine JN-HSA200F

This Hot Stamping Machine is used for flat hot stamping. It is easy operation, with good performance, can be done well in hot stamping. Adopted the pneumatic unit that fit for stamping the flat, sloping workpiece. Apply to different size of workpiece, improve the working efficiency and good stamping quality.
It is widely used in various fields, such as electronics, toys, hardware tools, adornment, cosmetics, artwares, handbags, trappings, etc. To meet different needs.

Features:
1. Microprocessor control.
2. Perfect crankshaft structure design, high pressure and low air consumption.
3. Stamping pressure, temperature and speed are adjustable.
4. Worktable can be adjusted left-right, front-back and rotary, ensures precise stamping and quick operation.
5. Automatic sliding worktable to facilitate substrate loading/unloading.
6. The high level of stamping is adjustable.
7. Automatic foils feeding and collecting.
8. Pneumatic component adopt Japan SMC.

Specifications:

Model	JN-HS180F	JN-HS180FR	JN-HS200F	JN-HSA200F	JN-HSA200FR	JN-HS250F
Stamping Plate Size	100 x 180 mm	100 x 180 mm	150× 200 mm	150× 200 mm	150× 200 mm	200× 250 mm
Worktable Size	127 x 220 mm	108× 108 mm	170× 220 mm	170× 220 mm	170× 220 mm	250× 300 mm
Stamping Head Stroke	25~75 mm	25-75 mm	53 mm	53 mm	53 mm	50 mm
Max Article Height	185 mm	95 mm	285 mm	380 mm	230 mm	235 mm
Temperature Range	RT~300oC	RT~300oC	RT~300oC	RT~300oC	RT~300oC	RT~300oC
Temperature Tolerance	± 1oC	± 1oC	± 1oC	± 1oC	± 1oC	± 1oC
Stamping Pressure	≤ 130 kgf	≤ 130 kgf	≤ 800 kgf	≤ 800 kgf	≤ 800 kgf	≤ 800 kgf
Max Stamping Speed	1200pcs/hr	1000pcs/hr	1300pcs/hr	1400pcs/hr	1200pcs/hr	1200pcs/hr
Air Pressure	4~7 bar	4~7 bar	4~7 bar	4~7 bar	4~7 bar	4~7 bar
Air Consumption	≤ 58 L/min	≤ 58 L/min	≤ 80 L/min	≤ 80 L/min	≤ 80 L/min	≤ 80 L/min
Power Supply	110/220V 60Hz/50Hz	110/220V 60Hz/50Hz	110/220V 60Hz/50Hz	110/220V 60Hz/50Hz	110/220V 60Hz/50Hz	110/220V 60Hz/50Hz
Wattage	1000W	1000W	1000W	1000W	1000W	1000W
