Dake-DT66A Cup Making Machine
- shanghai
You May Like
Product Details
| Use | Food | Material | Plastic | |
| Plastic Type | PP | Type | Cup | |
| Place of Origin | Shanghai, China | Brand Name | Dake machinery | |
| Model Number | Dake-DT66A |
Product Description
Specifications
1,Plastic Thermoforming Machine is a kind of efficient automatic plastic thermoforming technical process.2,wide used
1,Thermoforming machine:
Plastic Thermoforming Machine is a kind of efficient automatic plastic thermoforming technical process.It can
finish producing at one time through feeding,heating ,streching,forming and sidecutting,etc.It can produce
such as PP,PE ,PS,and ABS,etc. This machine has wide used ,This machine is mainly used for producing

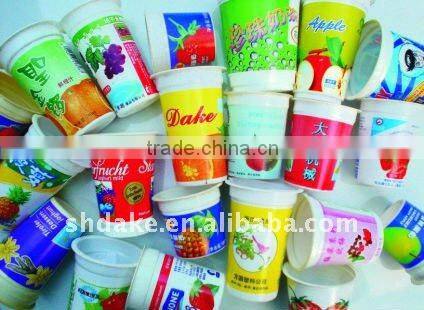

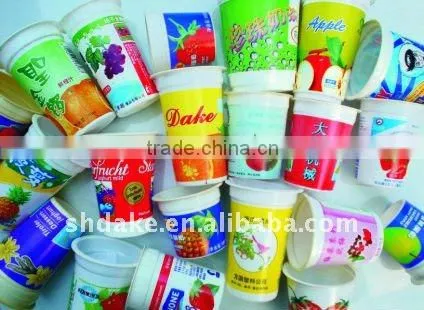

disposable plastic vessels, such as teacup,milkcup,instant noodles bowl and other plastic products,etc..
2,Main technical parameters of equipment:
Model | DT66A |
Sheet width | 300-600mm |
Sheet thickness | 0.3-1.5mm |
Max diameter of sheet rolll | 700mm |
Max forming area | 620*220mm |
Max forming depth | 120mm |
Revolution | 20-35mould/min |
Powrr | 83KW |
Voltage | Three phase 380V/50Hz |
Air consumption | 0.7Mpa*1.6m3/min |
Dimension | 9.5m*1.5m*2.7m |
Weight | 5T |
