Hot selling paper mchine production line cylinder mould
- 1000 Set / Sets per Month
- any you required
- T/T L/C D/P D/A Credit Card PayPal
- Corrugated cardboard production line duplex paper board calendering machine
- Wholesale paper mill used press felt with factory price
- Paper mill machinery part Pneumatic Scraper for paper making
- Flotation waste paper deinking machine
- Waste apper ink removal equipment in a4 paper production line
- Complete paper mill deinking machine for paper recycling
Product Details
Place of Origin: | Henan, China | Brand Name: | Leizhan | Model Number: | pulp processing, Series |
Packaging Details
standered or you required
Product Description

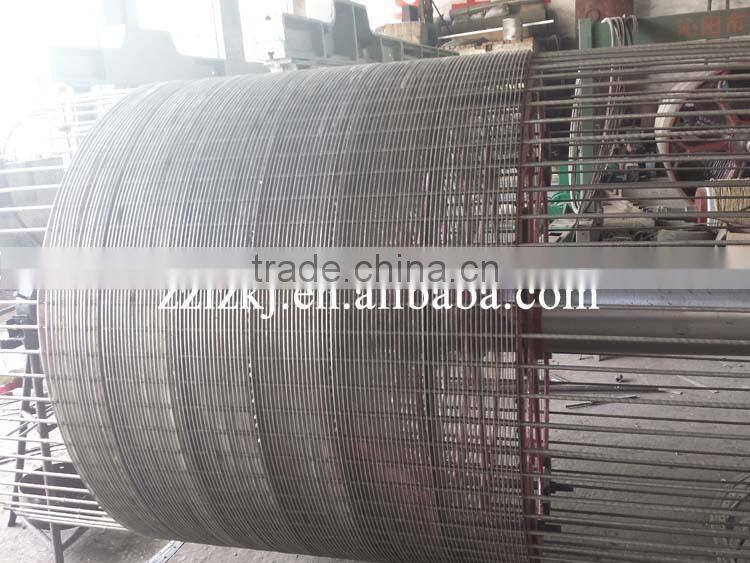

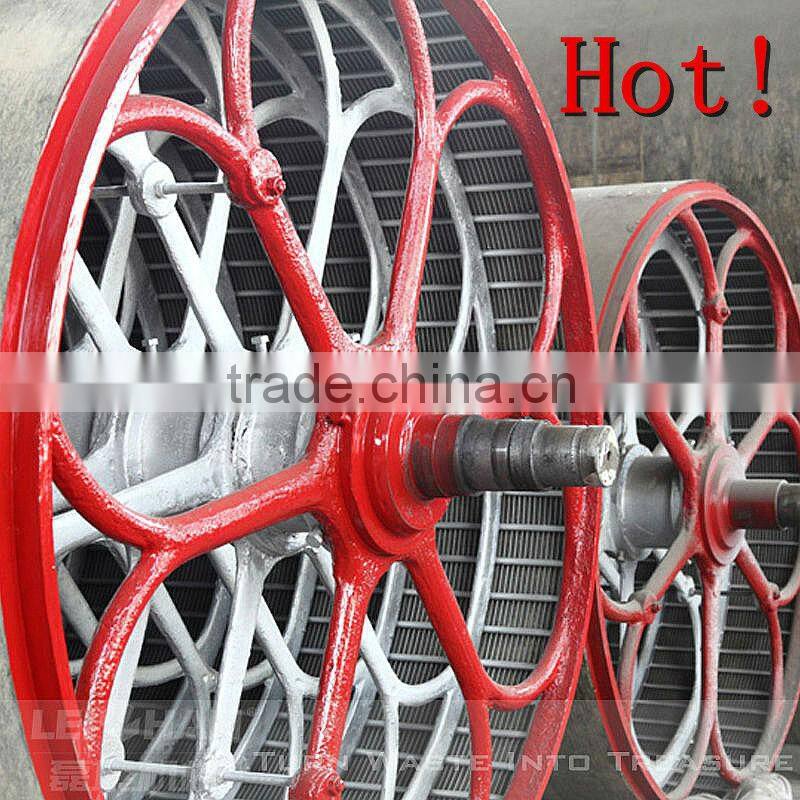

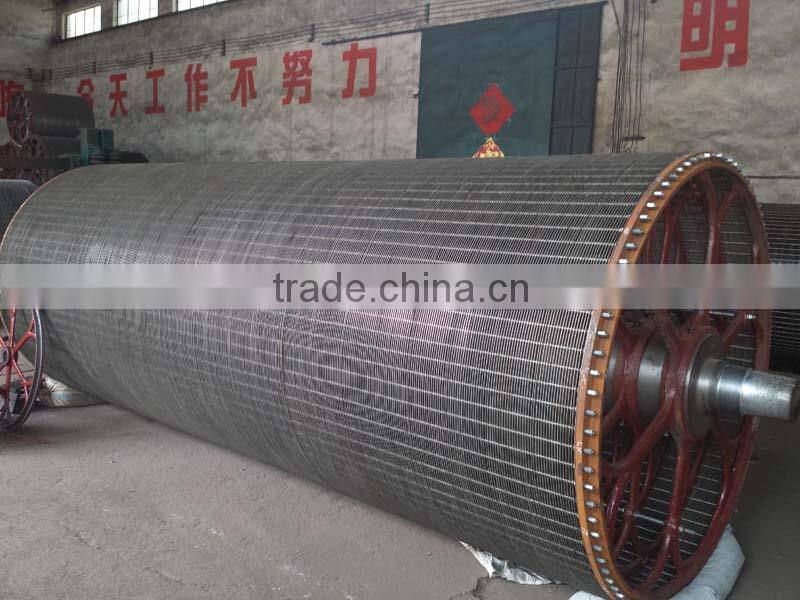

Hot selling paper mchine production line cylinder mould
Cylinder Mould is used in the forming section of paper making machines and thickener, our Cylinder Mould features in high speed, high strength, low power consumption, long life time for wire.
Technical Parameter
Model | 3.5m2, 5m2, 8m2, 10m2, 15m2, 20m2, 25m2, 30m2, 35m2, 40m2, 45m2, 50m2, 60m2 |
Face with | according to the customer's request |
Speed | according to the customer’s request |
Optional supply list | Bearing and related accessories, Wire (Stainless steel or Synthetic high polymer) |
1/Diameter 1500mm
2/Face length 2000mm
3/Diameter of SS stick 12mm
4/Qty of SS stick 80
5/Qty of middle supportchip 14 pcs
6/Thickness of SS strip 15mm
7/Diameter of axis 180mm
8/Bearing model 113624
9/Stainless steel winding scrip δ= 1.5 ×25mm
10/Outer arm of wheel made by cast iron
11/Inner arm of wheel made by cast iron
12/Pull rod Q235A 3sets
13/Axle:it is made byΦ180mm seamless steel pipe. Wall thickness is 14mm. the material of spindle nose is carbon steel., thermal refining.
14/Technical requirement: surface polishing, winding scrip chamfering, knurl treatment, straightness of oversheet≤0.025mm/m, static equilibrium.
17/Dimension:1.6mx1.6mx2.4m
18/weight:1ton per set
Main Character:
Different usage type:paper making cylinder mould,concentrate cylinder mould.
Different structure type:common,air exhause,vacuum.
Different material type:stainless steel
Specification diameter(mm): 1000,1250,1500,1800,2000
Working face range:1000-5000mm
Main character : improve water filter area and speed, increase the capacity.

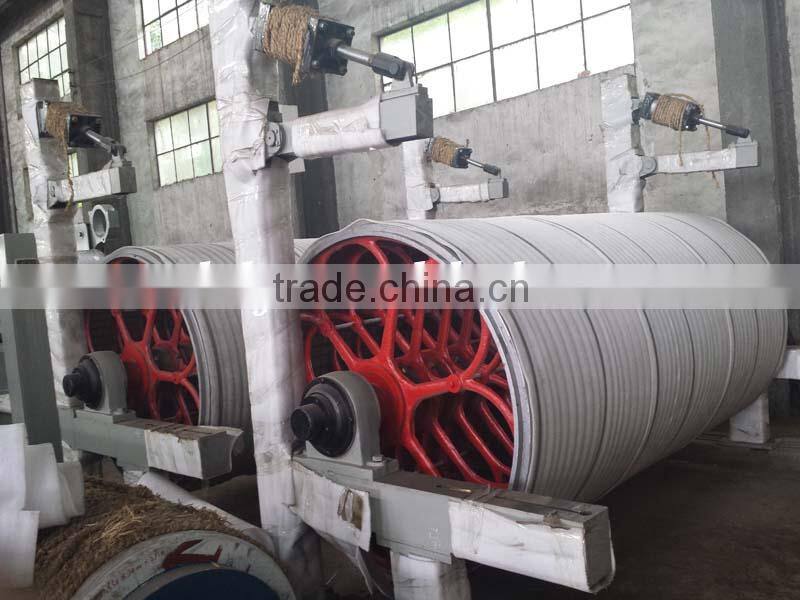

Installation site
Whole Stock Preparation Line In Egypt
Project: Whole set of 150t/d Kraft Liner, Fluting, White board paper, T-paper Stock Preparation Line.
Customer company: Egypt Al- Karma Paper Industries
Address: Sadat city, Egypt.
Time: 2015

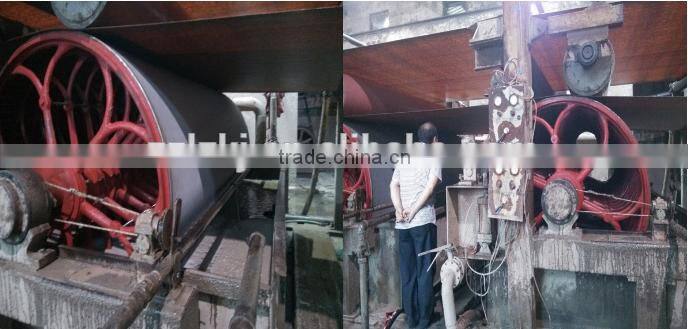

Working Site
Project: 600T/D T-Paper, Fluting&Testliner Paper production line .
Project: Toilet Tissue Roll Making Project Egypt.
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.

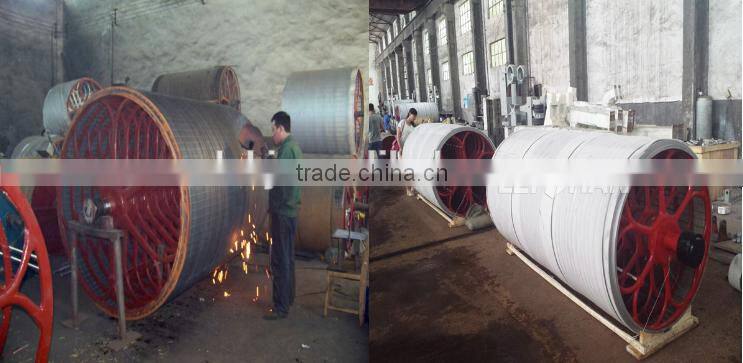

Factory show
Every year, We participate in international exhibition including that in India, Egypt, Shanghai, Beijing, Guangzhou, China etc.
Leizhan focuses on research and development of advanced technology and customer-oriented products as well as building up core competitiveness to makes paper pulp machinery a pioneer of the industry.
We have many patents of pulping equipment,like impurity separator, high and low density cleaner,grapple,pressure screen and so on.
Acceptance standard
- Unless stipulated in the technical documents accordingly, technology acceptance standards of designed main parts are in accordance with relevant state departments issued current relevant standards.
- providing main parts technology acceptance standard of technical design.
Technical service
- During paper machine installation, We cooperate with buyer for technological improvement to reach desired results.
- We explains paper machine performance, structure and operation to buyer related people for free.
Quality guaranteed
- We makes sure paper machine achieve promised performance with correct installation, commissioning, normal operation and maintenance.
- In warranty period, for quality problem, we repair and replace defective parts for free(except quick-wear part).
Welcome to visit us, we are located in Zhengzhou city, Henan province, We will pick you up at air port.
Q: What's your advantages?
A: We have more than 30 years experience in the field of papermaking industry. 20000 square meters workshop with more than 200 staffs including 50 engineers.
Q: What are your company's flagship products?
A: Our pulp equipment is advanced like screening, impurity removal, pulping and refining equipment.
Q: Where is your company's advantage in the industry ?
A: We have 30 years experience, We are leading in terms of pulping equipment,
in addition, we provide a more personalized service.
Company Profile
Zhengzhou Leizhan Technology Paper making machinery Co.,Ltd is a professional manufacturer of pulp and papermaking equipments, which engaged in research and development, manufacture and sale, now has successfully developed the marketable high consitency pressure screen, inflow pressure screen and D type Hydrapulper, and become the leader manufaturer in this area for the domestic market.
This company is located in Zhengzhou City, Henan Provice, covering 40 thousand square meters. It has total assets of 50 million, over 200 employees including 10 senior engineers. This company has been certified for State ISO9001 Quality System Certification and owns 14 patents. Leizhan is designed with low carbon enviromental protaction, pays more attention to the international technical cummunication and cooperation, The main series of the products are waste paper delivery, waste paper bale breaking and screening, waste paper pulping, heavy slag cleaning, screening, deinking, concentration, heat dispersion, pulping, mixing and pulp conveying etc.
Leizhan has processing and testing equipment like CNC cutting machine, sand blasting system, vertical and horizontal CNC lathe, planer milling machine, vertical boring machine, automatic continuous welding machine, CNC bending machine, CNC shearing machine, veneer reeling machine, 1200 tons of press machine, high speed dynamic balance correction machine, assembly test table etc.
By more than 30 year's development, facing the new market condition and competition, we will improve and strengthen our brand strategy continuously, regard quality and service as the foundation of long-run development, by implementing the innovation of technology and management, based on pulper equipment, we strive forward to the international stage actively.
