Specifications
PVC tube printer1.Electronic Control Box
2.6 colors printing Host
3.UV curing system(1+3)KW
automatic PVC tube printer,plastic tube printing machine
PVC tube printer.special printing machine
Voltage 380V AC/50HZ
Power 8.5KW
Air pressure 0.6MP
1 Characteristic:
The machine head,with a power of 4KW,is controlled by frequency control,With forward and reverse jog operation function;UV lights down low-power (1KW),And with the shutter gobo,More secure and reliable;;Open-type color station,alters ink by independent variable speed motors..
2 component parts
1.Automatic loading system and output frame (controled by photo-electricity)
2.delicate index drive of eight location
3.Corona system(1KW)
4 6 colors printing Host
5.UV curing system(1+3)KW
6. Electronic Control Box
3 Main technical parameters
Model |
DAKE-60 |
Total power |
14KW |
Voltage |
3 phase380V/50Hz |
Air consumption |
0.5M3/0.6MP |
size of product |
dia60mm*H240mm |
printing speed |
6000pcs/hr |
color |
4/6 |
Curing |
UV(4KW) |
size |
5m*2.5m*1.8m |
weight |
3000kg |

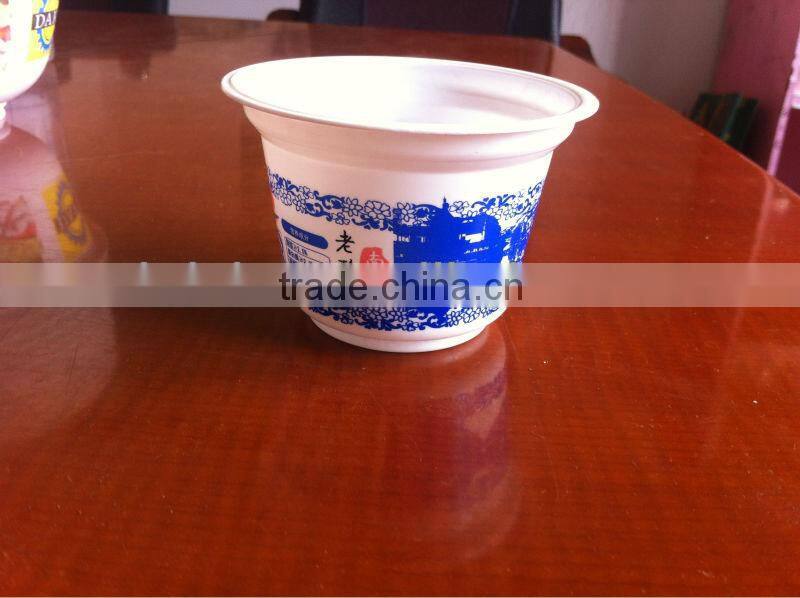

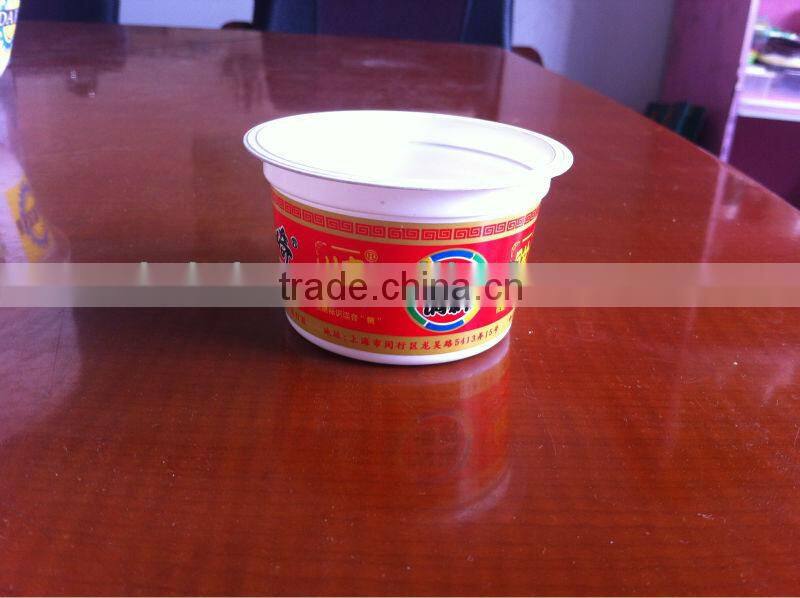

4.Products
