Home > Products > Special Bent Offset Printer > Auto Filter Offset Printing Machine Bottle Printing Can Printer
Auto Filter Offset Printing Machine Bottle Printing Can Printer
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Plate Type | Other, Letterpress, Letterpress | |
| Place of Origin | Shanghai, China | Brand Name | DAKE | |
| Model Number | DAKE can printer, DAKE can printer | Usage | Tube Printer, Other, Tube Printer, can Printer | |
| Automatic Grade | Automatic | Voltage | 3 phase380V/50Hz, 3 phase380V/50Hz | |
| Gross Power | 14KW | Dimensions(L*W*H) | 5m*2.5m*1.8m | |
| Weight | 3000kg | Certification | ISO9001 |
Product Description
Specifications
Auto filter printing machine1.Corona system
2.6 colors printing Host
3.UV curing system(1+3)KW
4.Electronic Control Box
Auto filter printing machine
Brief introduction:
1. With more than 10 years' experience, we have achieved good reputation and reliability both at home and abroad.
2. Our main products:
a. Plastic cup coiling machine
b. The bent offset printer for plastic cup, bowl, tube, bottle and bucket.
c. Thermoforming machine
d. Thermoforming mold
e. Extrusion line
What we sell is not the best, but the most fitting.
Quick Details
Type: Offset Printer | Condition: New | Plate Type: Letterpress |
Place of Origin: Shanghai, China (Mainland) | Model Number: DAKE can printer | Automatic Grade: Automatic |
Air consumption: 0.5M3/0.6MP | Usage: Can Printer | Curing: UV(4KW) |
color: 4/6 | Total power: 14KW | Voltage: 3 phase380V/50Hz |
Color & Page: Multicolor | size of product: dia60mm*H240mm | size: 5m*2.5m*1.8m |
Type: Offset Printer | printing speed: 6000pcs/hr | weight: 3000kg |
Packaging & Delivery
| Packaging Details: | As the exported demand |
|---|---|
| Delivery Detail: | 30Days |
Specifications
Auto filter printing machine
1 Characteristic:
The machine head,with a power of 4KW,is controlled by frequency control,With forward and reverse jog operation function;UV lights down low-power (1KW),And with the shutter gobo,More secure and reliable;Open-type color station,alters ink by independent variable speed motors..
2 component parts
1.Automatic loading system and output frame (controled by photo-electricity)
2.delicate index drive of eight location
3.Corona system(1KW)
4 6 colors printing Host
5.UV curing system(1+3)KW
6. Electronic Control Box
3 Main technical parameters
Model | DAKE can printer |
Total power | 14KW |
Voltage | 3 phase380V/50Hz |
Air consumption | 0.5M3/0.6MP |
size of product | dia60mm*H240mm |
printing speed | 6000pcs/hr |
color | 4/6 |
Curing | UV(4KW) |
size | 5m*2.5m*1.8m |
weight | 3000kg |

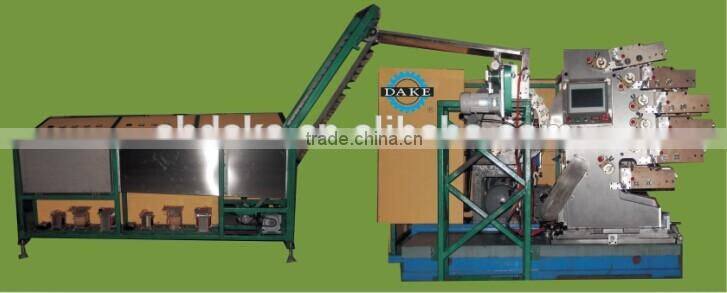

4. Picture of the machine

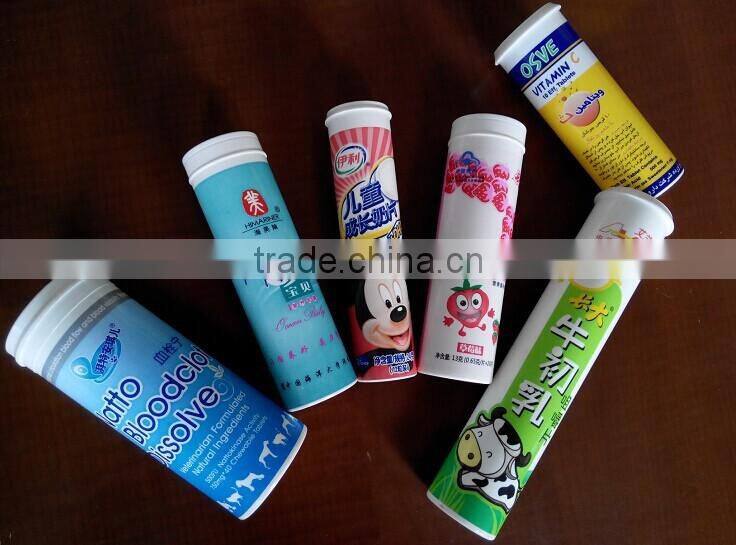

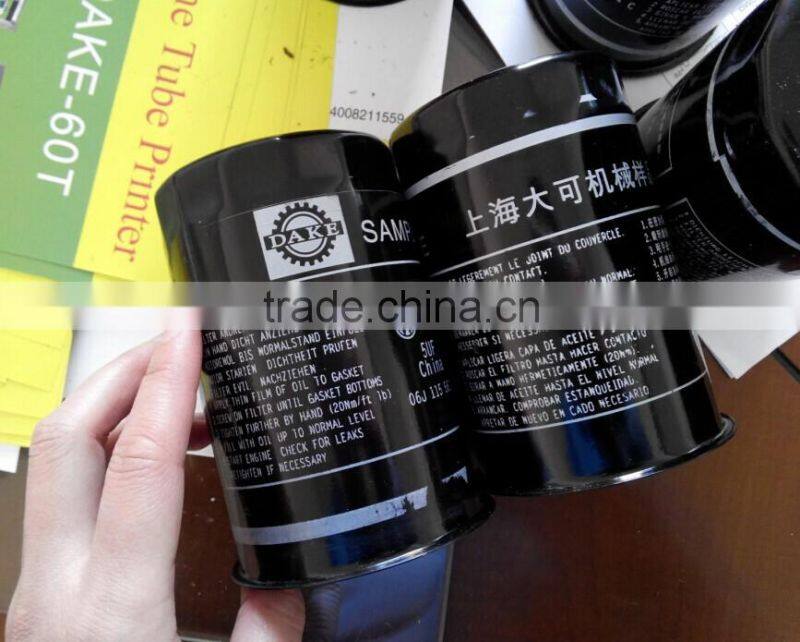

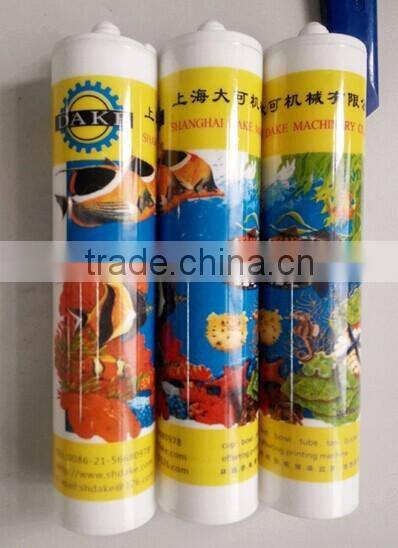

5. Pictures of the samples
