DAKE-150 Plastic Cup Printer With Photographic Offset Printing Quality
- Shanghai
- T/T
You May Like
-
DAKE-150 Plastic Cup Offset Printer With Varnish System
-
DAKE-150 Six Color Plastic Cup Offset Printer With UV Curing System
-
Printing Your Cups LOGO DAKE-150 Plastic Cup Printer 6 Color Printing
-
DAKE-150 Plastic Cup Printer Competitive Price for Sale
-
Offset Plastic Cup Printer for Printign Coffee Cup Yogurt Cup
-
Offset Plastic Cup Printer for PP Coffee Cup
Product Details
| Condition | New | Plate Type | Other, Letterpress, Letterpress | |
| Place of Origin | Shanghai, China | Brand Name | DAKE | |
| Model Number | DAKE-150, DAKE-150 | Usage | Other, plastic cup printer, plastic cup printer | |
| Automatic Grade | Automatic | Voltage | three phase 380V,50HZ | |
| Gross Power | 15KW, 15KW | Dimensions(L*W*H) | 5m*2.5m*2.2m | |
| Weight | 5000kg | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Main Features:
1. Offset plastic cup printing machine
2. ISO9001
3. Corona treatment before printing
4. UV curing after printing
5. Very quick change over of mandrels and printing plates
6. Layer printing effects & photographic printing quality

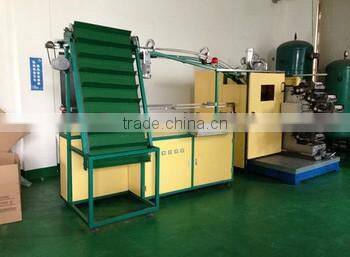

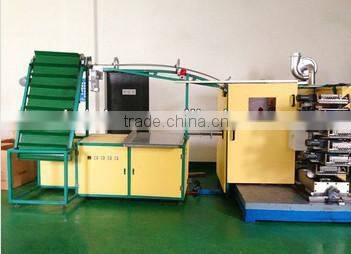

I. Dake-150 plastic cup offset printing machine

1. Use:
Model DAKE-150 Automatic Plastic Cup Offset Printer is used for printing plastic cup which is six colors, such as yogurt cup, coffer cup, coke cup, ice cream cup and so on.
2. Characteristic:
a. Very quick change over of mandrels
b. Automatic equip UV on-mandrel curing system
c. Controlled by frequency conveniently and quickly
d. Checking accurately, conveniently and quickly
e. Control and error check
f. Layer printing effects & photographic printing quality
g. Corona before printing
e. Color station opening structure
3. Main technical parameters of equipment
Model | DAKE-150 |
Colors | 6 |
Voltage | Three phase 380V, 50Hz |
Total Power | 15KW |
Cup area | Dia.50*h35mm~Dia.150*h180mm |
Air consumption | 1.0 m3/min |
Cup taper | 2°~10°/15° |
Cup rim | Dia.50~150mm |
Printing area max | Dia.135*h140mm |
Printing speed highest | 300pcs/min |
Curing system | location UV |
Machinery size | 5m*2.5m*2.2m |
Weight | 5000kg |

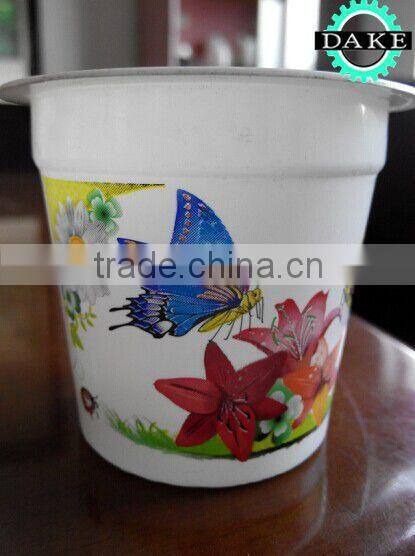

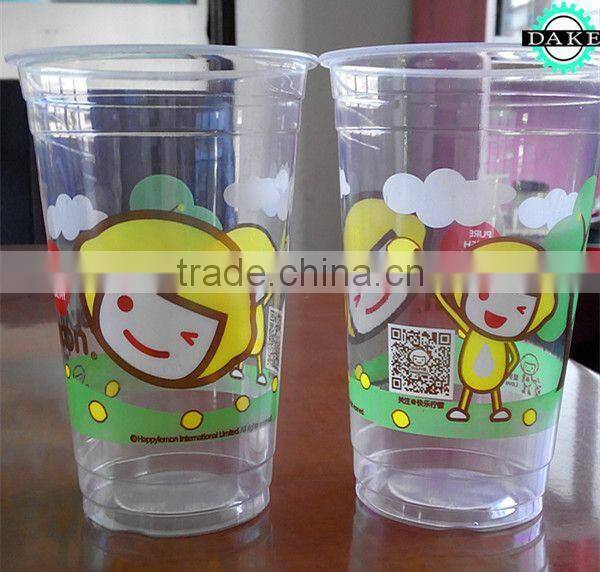

4. Samples



II. Printing process
III . Main parts of the cup printing machine

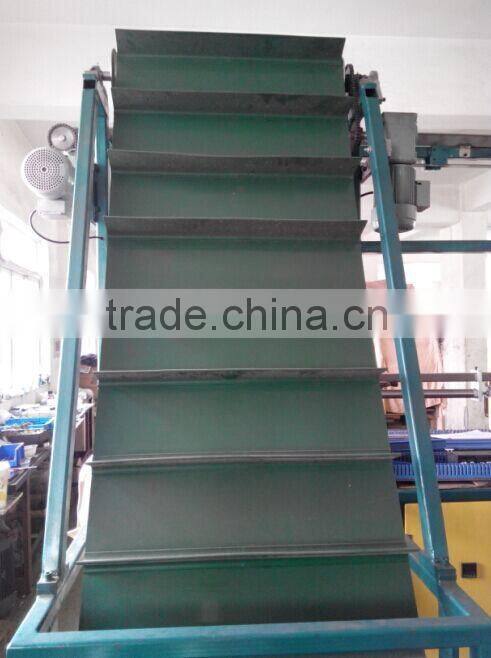

1. Cup feeding

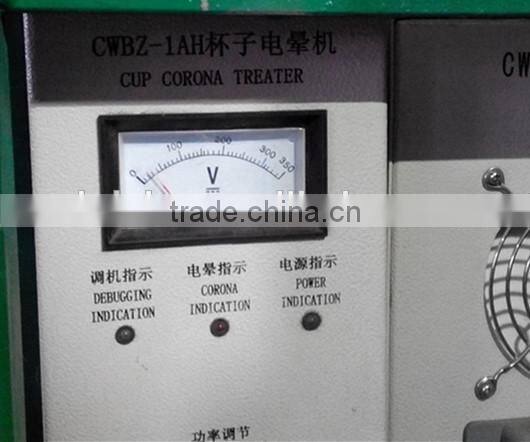

2. Corona

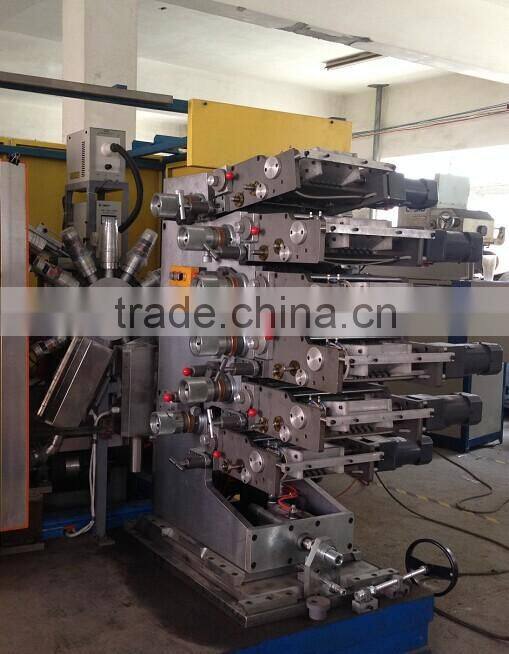

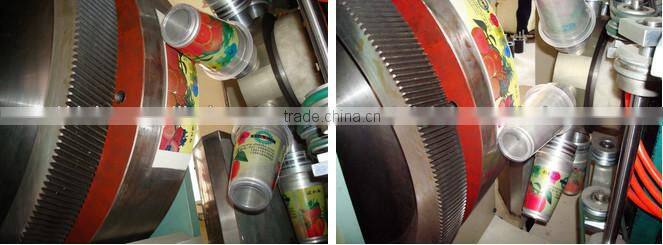

3. Machine head&index drive

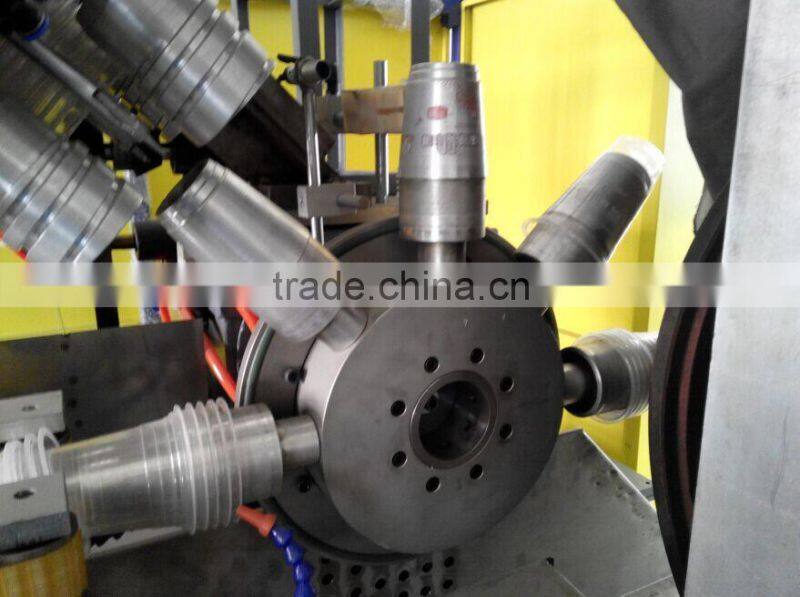

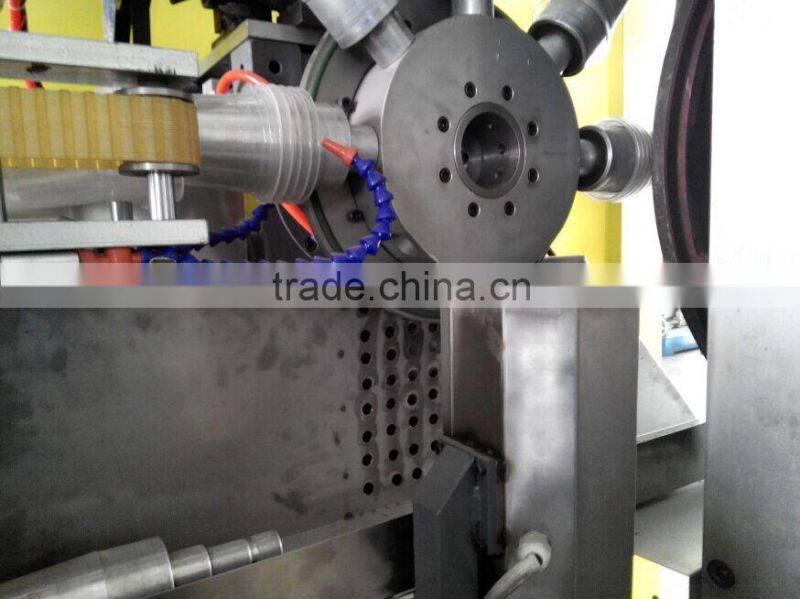

4. Printing mandrel & UV curing lamp

5. Siemens control panel

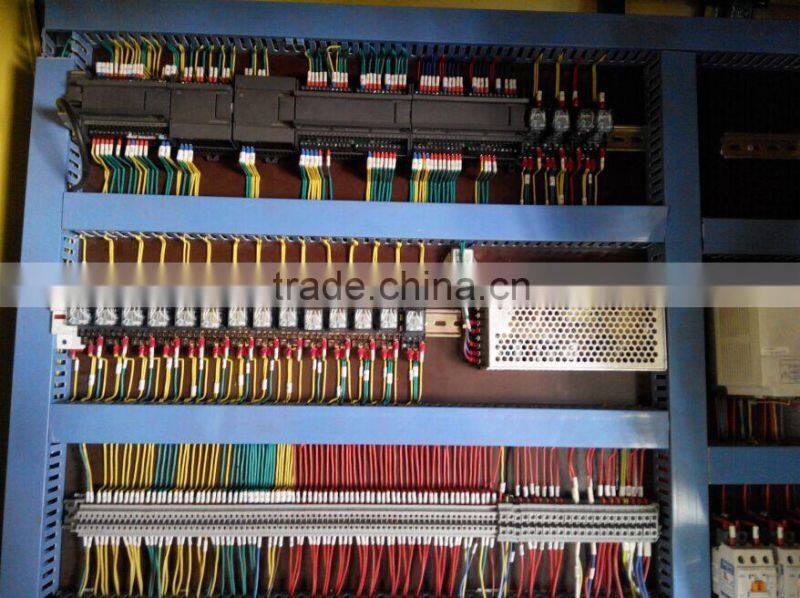

6. Electric control box
1. For each new printer, warranty period: one year
2. For each new printer, we provide one set of mould (printing mandrels) for free.
3. After-sales service provided: Engineers available to service machinery overseas.
We will arrange professional technician to go to your company for machine installating, debugging and provide
free technical training.
4. If you send us the image (format is CRD or AI) that you want to print on the cups, we can process the image,
make the prinitng plate and print cup samples for you to check the printing quality.
5. When you visit our factory for product acceptance, we can teach you how to make the plate on the computer
with software CorelDRAW for free.
Shanghai Dake Machinery Co., Ltd. is located in Shanghai of China. We are professional manufacturer for 16 years. Our main products are bent offset printing machine series for plastic cups, bowls, barrels and tubes, and plastic cup coiling machines.
DAKE integrates development, production, sales and service as a whole. We preserve the operation tenet of "survive on quality, develop on innovation and win credit on consummate service", and we pay much attention to clients' requirements. We hold market trends timely, keeping improving the quality of our products continuously, developing new products and improving service quality insistently. Our products are sold all over China and exported to Southeast Asia, Europe, America and other countries and areas. With a high credit standing in both domestic and overseas markets, our company and products have won lots of favors from vast new and old clients.
DAKE is great. Through the unremitting diligent work, DAKE has invented the first plastic coiling machine in China. Now the new coiling machine reaches a high output of 1,000,000 cups one day.
Our philosophy is that what we sell is not necessarily the best, but the most suitable for you.
1. Q: Are you a factory or a trading company?
A: We are a factory for 16 years, specializing in offset printing machines for plastic cups, bowls, tubes, buckets and plastic cup coiling machine. Welcome to visit our factory.
2. Q: What are the main markets of your company?
A: Our products are sold all over China and exported to Southeast Asia, Europe, America and other countries and areas. With a high credit standing in both domestic and overseas markets, our company and products have won lots of favors from vast new and old clients.
3. Q: Can we see how your machine work in your factory?
A: Yes, welcome to visit our factory, we will show you how to operate the printer. Videos and sample pictures are available. We have client who bought our offset cup printer and his factory is only 5 minutes' drive from our company. If you would like to, we can show you aronud his factory.
4. Q: Can we send you cups to print so we can check the printing quality?
A: Yes, if you send us the original designing draft (format is CRD or AI) that you want to print on the cups,
we can process the image, make the prinitng plate and print cup samples for you.
5. Q: What about the delivery?
A: Delivery time is 2 months after we received the advance payment, but the delivery will change based on our production situation.
