Home > Products > Plastic Cup Printer > High speed 6 color plastic cup printer
High speed 6 color plastic cup printer
- 20 Set / Sets per Month
- Shanghai
Product Details
Condition: | New | Plate Type: | Other, Letterpress, Letterpress | Place of Origin: | Shanghai, China |
Brand Name: | DAKE, DAKE | Model Number: | DAKE-200P, DAKE-200P | Usage: | Other, plastic cup printer |
Automatic Grade: | Automatic | Voltage: | Three phase 380V, 50HZ, Three phase 380V, 50HZ | Gross Power: | 16KW, 16KW |
Dimensions(L*W*H): | 6m*2.5m*2.5m | Weight: | 5500kg . | Certification: | ISO9001 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
High speed 6 color plastic cup printer1.quick change over of mandrels
2. conveniently and quickly
3.ISO9001
High speed 6 color plastic cup printer
Brief introduction:
1.With more than 10 years' experience ,we achieved good reputation and reliability .
2.our main products:
a.plastic cup coiling machine
b.The bent offset printer
c.Thermoforming machine
d. Thermoforming mold
e.Extrusion line
What we sell is not the best, but the most fitting.
Quick Details
Type:Offset Printer | Condition:New | Plate Type:Letterpress |
Place of Origin:Shanghai, China (Mainland) | Brand Name:DAKE | Model Number:DAKE-200P |
Color & Page:Multicolor | Usage:cup printer | Automatic Grade:Automatic |
Colors:6 | Gross Power:16KW | Dimensions(L*W*H):6m*2.5m*2.5m |
Air consumption:1.2 m³/min
| Voltage:Three phase 380V, 50HZ(it can be change to 420V) | Product area:dia60*h30mm--dia200*h200mm |
Max printing area:dia175*h150mm | Product taper:3°-15° | Product rim:dia60-200mm |
Weight:5500kg
| Printing speed highest: 400pcs(dia60mm-dia110mm)/min 250pcs(dia110mm-dia200mm)/min
| Curing system:location UV |
Packaging & Delivery
Packaging Details: | According to the exported demand |
---|---|
Delivery Detail: | 30Days |
Specifications
High speed 6 color plastic cup printer
1. USE:
Model DAKE-200P Automatic High Speed Plastic Printer is used for printing plastic cup and bowl which is eight colors, such as yoghourt cup, coffer cup, coke cup,noodl-bowl and so on
2. Introduction
DAKE-200P bent offset printer input cups at an angle of 45 degrees and output cups horizontally. It used for plastic cups,bowls,barrels, pipes and so on.The main parts of the machine are feeding frame, input and output frame, index drive of eight location, corona system, UV curing system, machine head and so on.
3. Characteristic:
a. Very quick change over of mandrels
b. Automatic equip UV on-mandrel curing system
c. Controlled by frequency conveniently and quickly
d. Checking accurately, conveniently and quickly
e. Control and error check
f. Layer printing effects
g. Corona before printing
e. Color station opening structure
4. Main technical parameters of equipment
Model | DAKE-200P |
Colors | 6 |
Voltage | Three phase 380V, 50HZ(it can be change to 420V) |
Total Power | 16KW |
Product area | dia60*h30mm--dia200*h200mm |
Air consumption | 1.2 m3/min |
Product taper | 3°-15° |
Product rim | dia60-200mm |
Max printing area | dia175*h150mm |
Printing speed highest | 400pcs(dia60mm-dia110mm)/min 250pcs(dia110mm-dia200mm)/min |
Curing system | location UV |
Machinery size | 6m*2.5m*2.5m |
Weight | 5500kg |

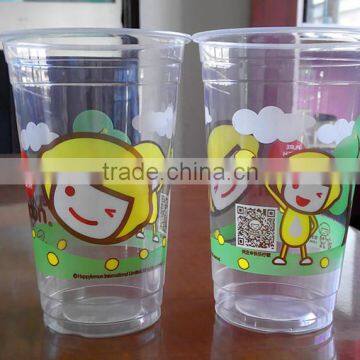

5. picture of the printed product
