DAKE-150 plastic cup printer
Brief introduction:
1. With more than 10 years' experience, we've achieved good reputation and reliability.
2. Our main products:
a. Plastic cup coiling machine
b. The bent offset printing machine for plastic cups, bowls, bottles, tubes and buckets.
c. Thermoforming machine
d. Thermoforming mold
e. Extrusion line
What we sell is not the best, but the most fitting.
Quick Details
Type:Offset Printer |
Condition:New |
Plate Type:Letterpress |
Place of Origin:Shanghai, China (Mainland) |
Brand Name:Dake Machinery |
Model Number:DAKE-150 |
Color & Page:Multicolor |
Usage:6colour plastic cup printer |
Automatic Grade: Automatic |
Colors:6 |
Gross Power:15kw |
Dimensions(L*W*H):5m*2.5m*2.2m |
Cup area:50*h35mm-150*h180mm |
Weight:5000kg |
Printing speed highest:360pcs/min |
Printing area max:135*h140mm |
Cup taper:2°-10°/15° |
Cup rim:50-150mm |
|
Air consumption:1.0m³/min
|
Curing system:location UV |
Machinery size:5m*2.5m*2.2m |
Packaging & Delivery
| Packaging Details: | according to exported demand |
|---|---|
| Delivery Detail: | one month |
Specifications
DAKE-150 plastic cup printer
1. Use:
Model DAKE-150 Automatic Plastic Cup Printer is used for printing plastic cups which are six colors, such as yogurt cup, coffer cup, coke cup and so on.
2. Characteristic:
a. Very quick change over of mandrels
b. Automatic equip UV on-mandrel curing system
c. Controlled by frequency conveniently and quickly
d. Checking accurately, conveniently and quickly
e. Control and error check
f. Layer printing effects
g. Corona before printing
h. Color station opening structure
3. Main technical parameters of equipment
Model |
DAKE-150 |
Colors |
6 |
Voltage |
Three phase 380V, 50Hz |
Total Power |
15KW |
Cup area |
Dia.50*h35mm~Dia.150*h180mm |
Air consumption |
1.0 m3/min |
Cup taper |
2°~10°/15° |
Cup rim |
Dia.50~150mm |
Printing area max |
Dia.135*h140mm |
Printing speed highest |
360pcs/min |
Curing system |
location UV |
Machinery size |
5m*2.5m*2.2m |
Weight |
5000kg |

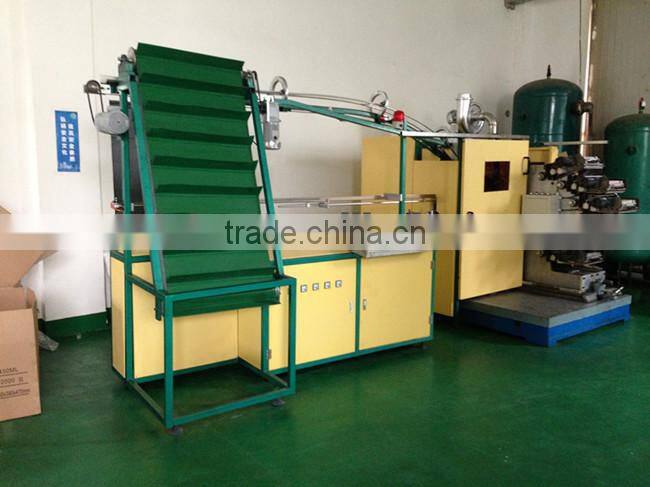

4. Picture of the machine

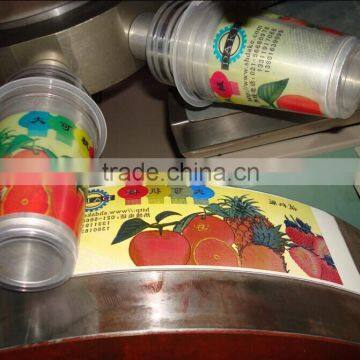

5. Pictures of the printing process
picture 1
picture 2

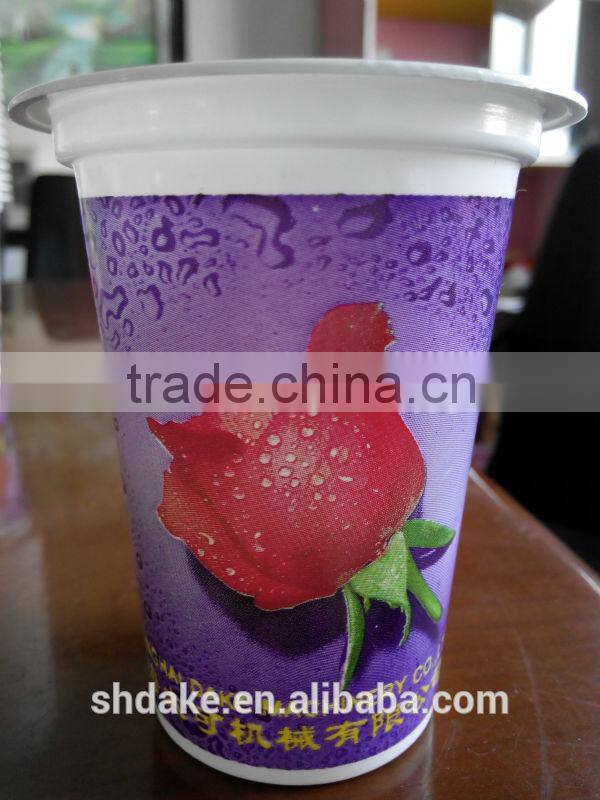

6. Pictures of the printed cups
picture 1
picture 2
picture 3
