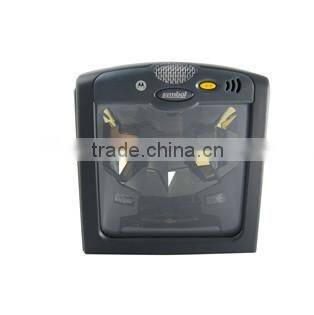

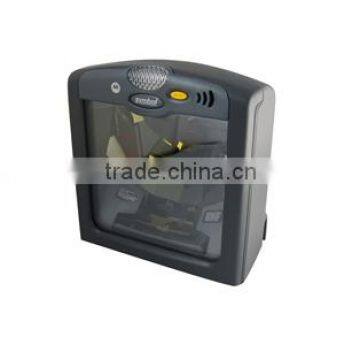

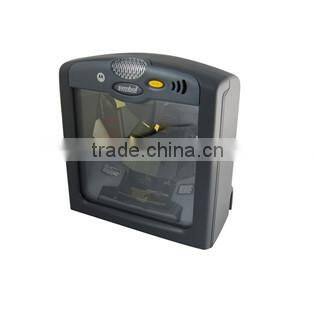

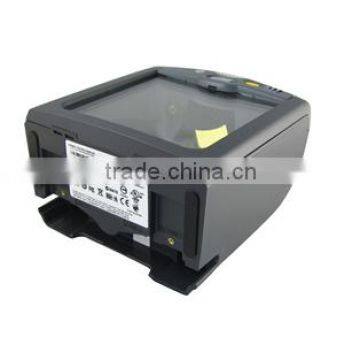

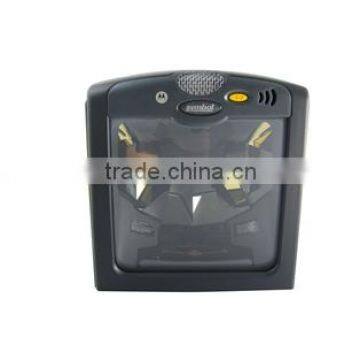

Bizsoft Symbol LS7708 1D desktop Laser Barcode Scanner with Rastering scan pattern
Symbol LS7708 Features and Benefits
1)Rastering scan pattern
Maximizes first-pass read rates and even reads truncated bar codes.
2)GS1 DataBar decoding
Supports new, GS1 DataBar bar codes to future-proof your investment.
3)Multi-interface capability
Allows migration to other hosts with the switch of a cable.
4)Universal cables
Saves money by using one cable across the Motorola product line.
5)Scan stitching
Improves first-pass read rate and increases productivity.
6)Electronic article surveillance (EAS)
Eliminates the need to de-activate security tag in a separate step, saving time.
7)Remote scanner management (RSM)
Reduces total cost of ownership by enabling remote, network-based device management.
8)PC programming (123Scan)
Allows for easy programming and set up — ideal for large installations.
9)Secondary scanner port
Connects to secondary scanner for scanning heavy or oversized merchandise.
10)Automatic sleep mode
Reduces power demand and increases life of the scanner.
Symbol LS7708 Specifications
Physical Characteristics
Dimensions without stand: Height 6.3 in (16 cm)Width: 5.98 in (15.2 cm)Depth: 3.73 in (9.5 cm)
Weight: Scanner only: 2 lbs. (907 g)
Power Source: Power drawn from Host terminal or external power supply; depends on Host type
Voltage: 5.5 VDC to 4.75 VDC measured at host terminal or external power supply
Typical/Max Current: 390mA/500mA
Power Source: 2 watts
Mounting Options: Integral Mounting Bracket
Color: Twilight Black
Performance Characteristics
Light Source: 650nm visible laser diode
Print Contrast: 25% minimum reflective difference
Scan Patterns: Static/Raster - Omnidirectional:24/120 scan lines
Scan Rate: Static/Raster - Omnidirectional: 2400 scans/second
Typical Working Range: 5 mil: (38%) 0.5 in - 2.5 in (1.25 cm - 6.4 cm)7.8 mil: (60%) 0 - 5.0 in (0 -12.7 cm)10.4 mil: (80%) 0 - 7.5 in (0 -19.0 cm)13 mil: (100%) 0 - 10.0 in (0 - 25.4 cm)
Depth of Field: 0-10 in/25 cm @ 13 mil (100% UPC/EAN)
Minimum Resolution1: 5 mil
Decode Capability: UPC/EAN/JAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 128, ISBT 128, Code 39, Code 39 Trioptic, Interleaved 2 of 5, Discrete 2 of 5, Code 93, Code 11, Codabar, RSS Variants
Interfaces Supported: USB, RS 232, IBM® 468X/9X, Keyboard Wedge, and Synapse™ (allows connectivity to virtually every POS host type), SPCI (for 123 Scan)
Model |
Symbol LS7708 |
Physical Characteristics | |
Dimensions |
Height 6.3 in (16 cm)Width: 5.98 in (15.2 cm)Depth: 3.73 in (9.5 cm) |
Weight (w/o cable) |
Scanner only: 2 lbs. (907 g) |
Voltage and Current |
5.5 VDC to 4.75 VDC measured at host terminal or external power supply |
Color |
Twilight Black |
Performance Characteristics | |
Interfaces |
USB, RS 232, IBM® 468X/9X, Keyboard Wedge, and Synapse™ (allows connectivity to virtually every POS host type), SPCI (for 123 Scan) |
Light source |
650nm visible laser diode |
Scan Patterns |
Static/Raster - Omnidirectional:24/120 scan lines |
Roll/Pitch/Yaw |
±360, ±60, ±60 |
Scan Rate |
Omnidirectional: 2400 scans/second |
User Environment | |
Operating temp. |
32º to 104ºF (0º to 40º C) |
Storage temp. |
-40º to 158ºF (-40º to 70ºC) |
Humidity |
5% to 95% (non-condensing) |
Regulatory | |
Electrical Safety |
Certified to UL 1950, CSA C22.2 No. 950 EN60825 |
Laser Safety |
CDRH Class IIa Laser Product; IEC 60825 Class 1 Laser Product |
