Specifications
A.Co-polyester hotmelt adhesive filmB.Good in washing resistance
C.Usage:be good at mesh fabric lamination for sports shoes

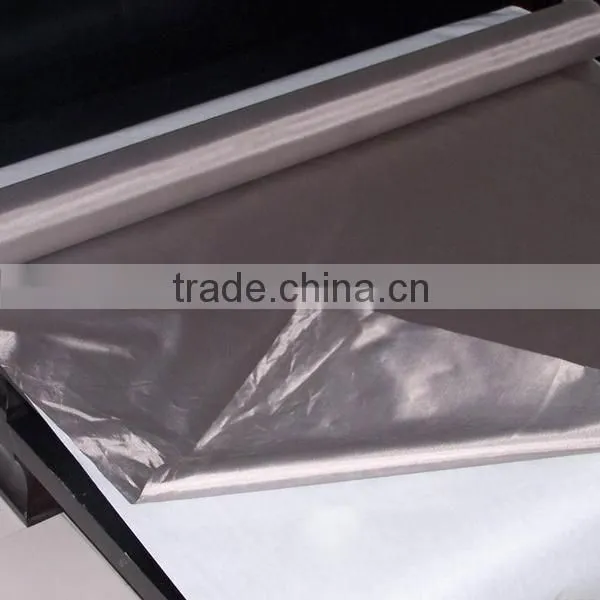

Co-polyester hotmelt adhesive film—PES
A.Feature
Low temp,save labor cost,good bond strength,good in resistance to water,no leaking,environmentally
friendly etc.
B.Application
Wildly used for mesh fabric lamination for sport shoes;
garment labels;embroidery patches and badges;top fly of outdoor jacket;cap peak;
reflective materials;car mats;car seats;automobile trims;conductive
cloth,conductive foam;polishing wheel;heat and sound insulation materials;PVC,PE materials lamination etc.
C.Specification
Width:1cm - 150cm
Thickness:0.03mm - 0.3mm
Length:100 yards /roll or according to the customers’requirement
D.Technical data
Product |
Y1201f |
Y1205f |
Melting temp (°C) |
105-115 |
110-120 |
Melt Index (g/10min@160°C) |
30 |
20 |
Viscosity (Pa.s@160°C) |
350 |
380 |
Operating temp (°C) |
130-155 |
140-160 |
Operating time (S) |
10-20 |
10-20 |
Operating pressure (kg/cm2) |
0.5-1.5 |
0.5-1.5 |
Resistance to washing |
40°C Good |
40°C Good |
Resistance to laundry |
No |
No |
E.Process suggestion
The product will be processed by high-frequency machine,laser cutting machine,heat roller machine,flat-bed heat press machine,iron etc.
F.Packages&Stores
2rolls/ctn or pallet packing;to avoid UV,it is put on wooden pallets and kept in cool and dry places
Remarks:The above information and technical support are based on our current knowledge and experience.The yare without
guarantee and legal claim.To obtain the best processing conditions,we suggest customers test the samples before using
our products.
G. Applications
1. PES Hotmelt Adhesive Film for mesh fabric lamination for sports shoes
2. PES Hotmelt Adhesive Film for car mats
3. PES Hotmelt Adhesive Film for car trim

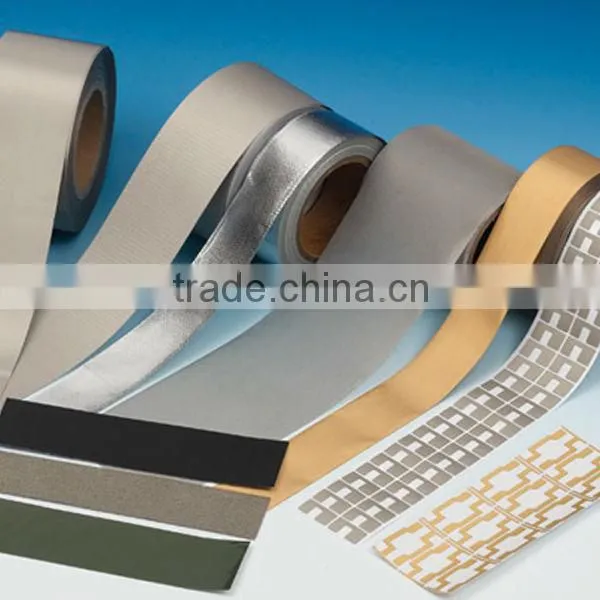

4. PES Hotmelt Adhesive Film for conductive cloth
5. PES Hotmelt Adhesive Film for conductive clothes

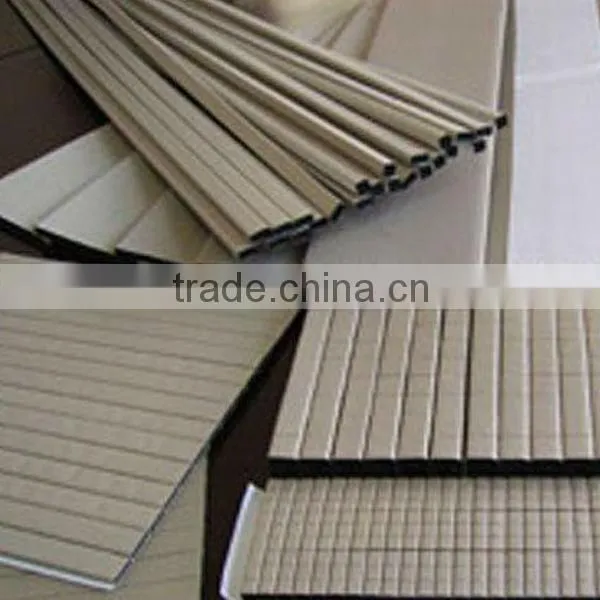

6. PES Hotmelt Adhesive Film for conductive foam

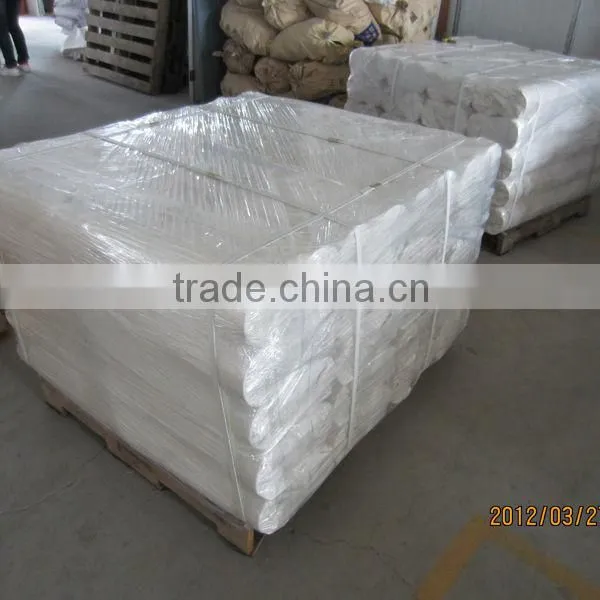

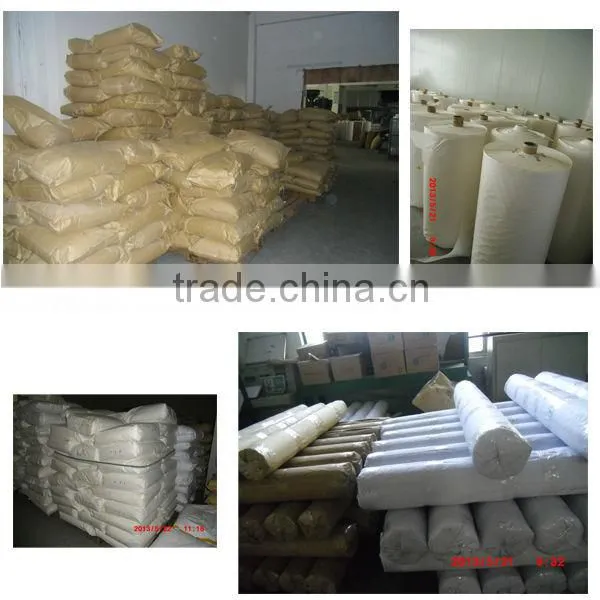

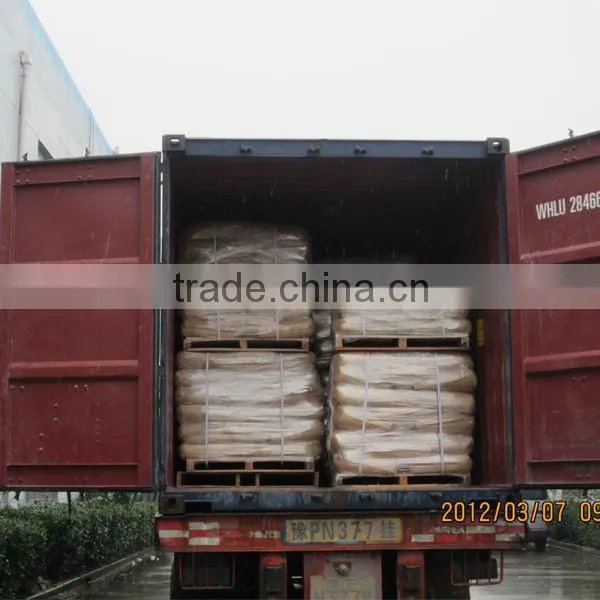

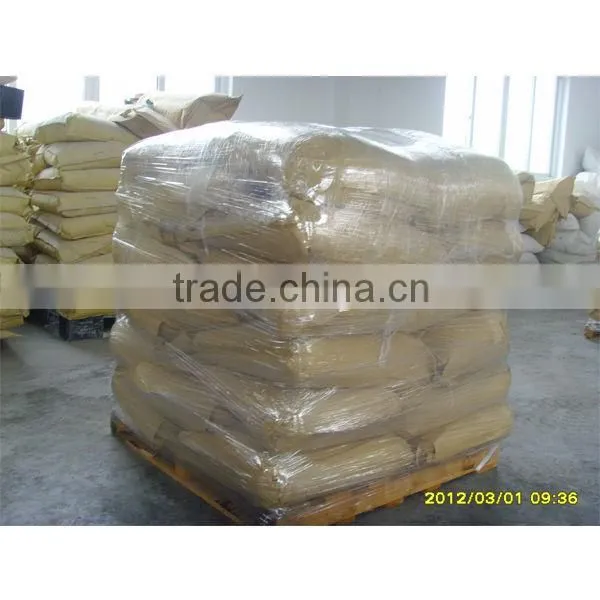

H.Packaging and Shipment
Powders and granule
1. 20kgs/bag & 25kgs/bag, with composite kraft paper bag
2. palletizing suitable for sea and air transportation
3. shrink film

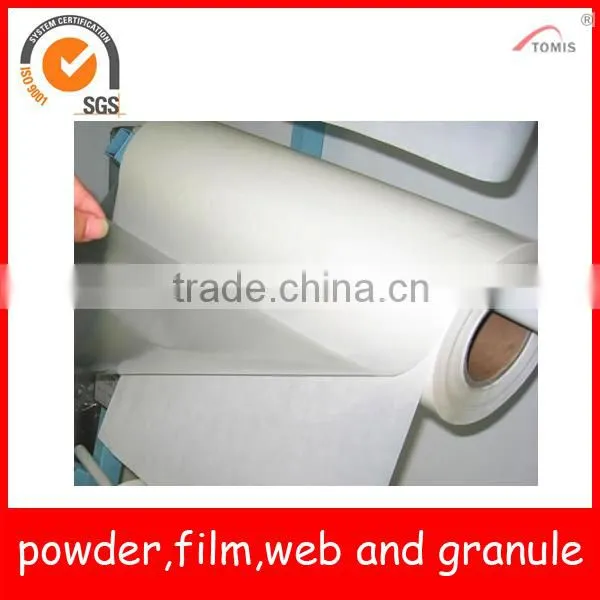

Films and web
1. 1-2 rolls packed by composite kraft paper bag
2. palletizing, suitable for sea and air transportation
3. shrink film
