Stainless Steel Laboratory Air Shower Clean Room

Stainless Steel Laboratory Air Shower Clean Room thumbnail-1
Stainless Steel Laboratory Air Shower Clean Room thumbnail-2
Stainless Steel Laboratory Air Shower Clean Room thumbnail-3
Stainless Steel Laboratory Air Shower Clean Room photo-1

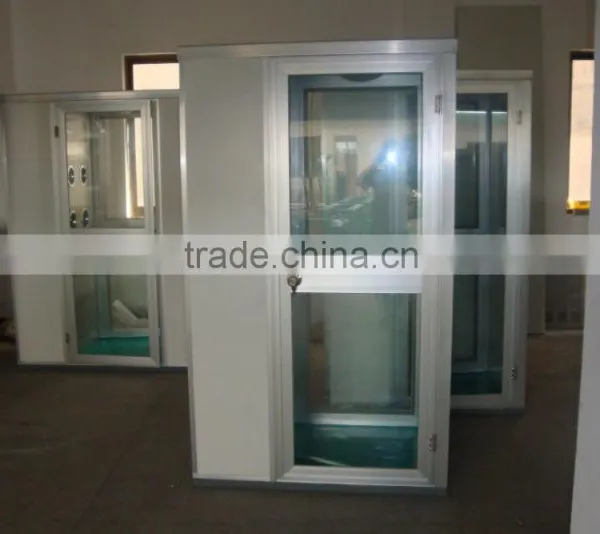

Stainless Steel Laboratory Air Shower Clean Room photo-2
Stainless Steel Laboratory Air Shower Clean Room photo-3
US$ 599 - 899 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Xinbang
Contact Supplier Request Quote Chat Now
Dongguan Xinbang Purification Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen or guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name Xinbang
Model Number xinbang
Voltage 380V/50Hz
Power(W) 780W
Dimension(L*W*H) 1260X1000X2050
Weight 350kgs
Certification ISO9001/ISO14001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Stainless steel laboratory air shower clean room





XB series Air showers with just sandwich making, inner surface of the aluminum frame, steel or stainless steel nozzles with color plates, built-in lighting, high efficiency filter installed within the side surface of the adjustable nozzle, the lower side effect for the initial filter Doors made of aluminum alloy, looking structure, reliable performance, simple operation and easy maintenance.



[Airshower Features]

1, the use of more appropriate cleanroom mounting principle.

2, the system automatically control operation, two-door electronic interlocking, and with photoelectric sensors, single channel air shower, clean area from the non-entry, after it was closed on the infrared sensor blowing leaching, after blowing leaching Getting locked, only go out from the air shower room;

3, the overall production of cold-rolled steel, the outer surface of the electrostatic spray

4, doors, floor, nozzles are made of stainless steel, beautiful

5. Touch softkeys time relay, LED display and settings blowing leaching time, the range of 10-99s adjustable air shower when two-door automatic locking;

6, using the early, high level filtration system with HEPA filter, filtration efficiency: 99.99%, to ensure the purification level

7, nozzle outlet winds of up to 25m / s or more, blowing wind on the human body wind speed 18m / s or more

8, the use of EVA sealing material, sealed high performance

9, the use of imported electronic components, reliable performance

10, with stainless steel multi-angle adjustable nozzle, Nam Tai double volute winds of low-noise external rotor fan, surface wind speed is greater than 25m / s;

11, advanced noise reduction silencer system.

12, modular design, assembly, transportation is very convenient



[Airshower Use / Advantage]

Mainly used in color printing packaging, food, beverage, pharmaceutical, biotechnology, electronics, brewery and other enterprises sterile purification plant FLS series air shower room, cargo room leaching is widely used in electronics, backlight, communications (communication), lasers, precision instruments , photovoltaic, new materials, semiconductors, optical fiber cable, biological medicine, food and beverage, cosmetic, animal husbandry and veterinary, bio-engineering, universities and laboratories, and other industries and research fields. Air shower room, air shower machine, channel Air Shower, cargo shower room is clean room and clean room assembly of equipment for blowing into the clean room of the people, the dust was attached to the surface, but from the airlock role in preventing not the purified air into the clean areas. Is making personal, material purification and prevent intrusion of outdoor air clean area of effective equipment, versatility, can be used with all the clean room and supporting the use of clean plant



                model
parameters         		 FLS-1A FLS-1B FLS-2A FLS-3A FLS-4A FLS-5A
Suitable Numbers single Single double three four Channel type
Blowing time adjustable between 0-99 seconds
Number of nozzles 12two sides 6one side 24two sides  36two sides 48two sides 60two sides
Nozzle diameter 32mm
Nozzle velocity 18±20%m/s
W×D×H 1600×955×2050   1250×955×2050 1600×1700×2050 1600×2500×2050 1600×3300×2050 1600×4100×2050
Power supply AC.3N380V/50Hz
Power (W) 1600 800 3200 4800 6400 8000
The number of HEPA 2 1 4 6 8 10
Filtration efficiency ≥99.97%(≥0.5µm)
