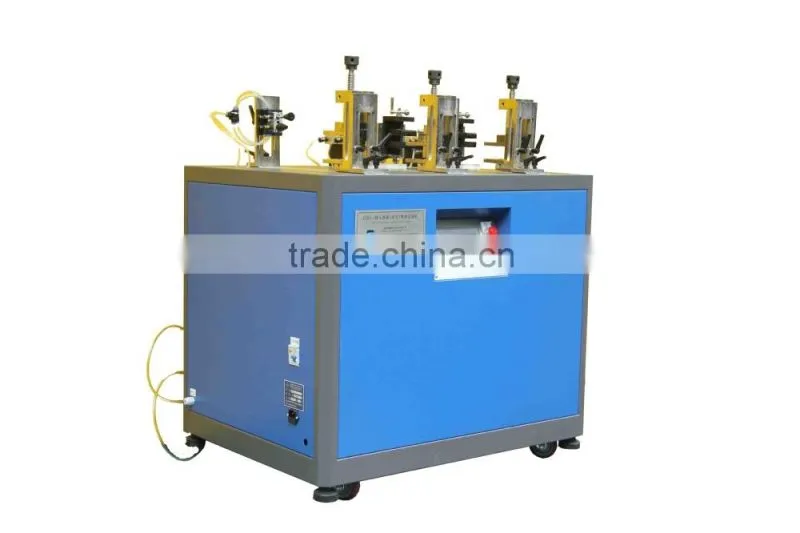

CZKS-3 IEC60884-1 Plug socket switch life tester

standard packing

CZKS-3 IEC60884-1 Plug socket switch life tester

 1. This test equipment is designed and manufactured according relevant requirement of Standard IEC60884-1,GB2099.1 and GB16915.1,Mainly used to test the service life of household and similar use plugs and sockets or switches.

2.This machine connect to load cabinet and conduct electrical life test ,normal operation and breaking capacity to plug socket and switch.

Technical parameters:

Gas source: 4~6kg/cm2

Control mode: PLC process control/touch screen display

Turn-on time: 0~99.9s (min) adjustable

Test cycle time: 0~99s adjustable

Counter: 0~99999 times, can be preset

Station: 3 (increase or decrease stations can be customized)

The equipment will stop working automatically when testing times reach preset value in the process of test.

Working power supply: AC 220V 50Hz 5A

Note: The device should work with matched air compressor, please provide for yourself.
