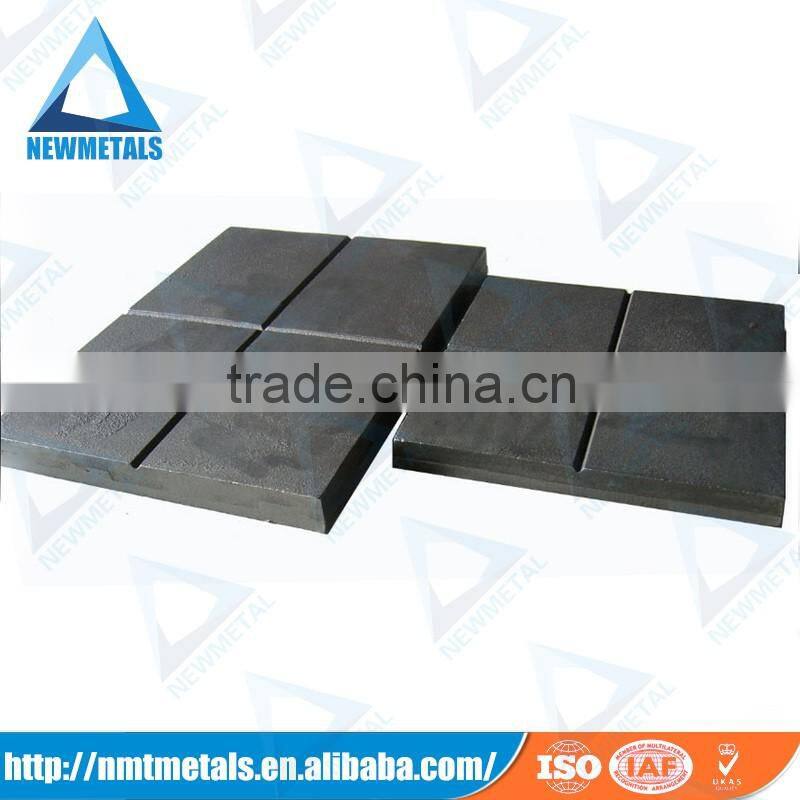

Hardfacing bimetal high chromium tungsten steel backing laminated wear plate
Laminated Wear Plates
It is a combination of high chromium white iron metallurgically bonded to a mild steel backing plate.
Advantages:
- Hardness: 700BHN(hrc62-66)
- Thickness: 12mm to 70mm
- Large sizes available (600mm*900mm)

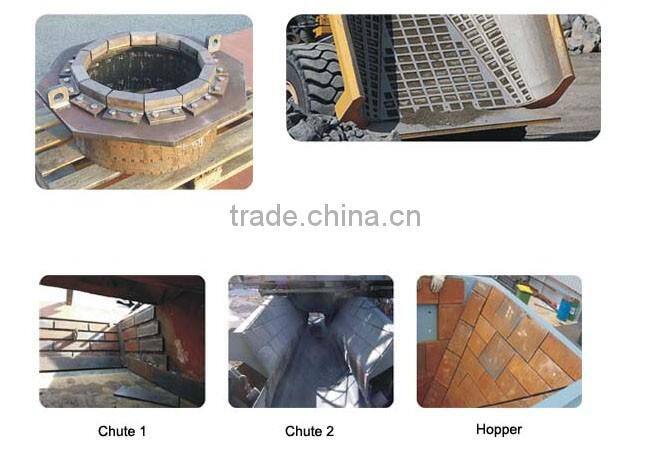

Applications:
- Chutes/Hoppers/Bins/Earthmoving Equipments
- Transfer Points/Truck Beds
- Rock Box Edges/Impact Walls/Screen Plates
| Part No. | A | B | C | D | E | Studs | Weight(KG) |
| WP3919 | 390 | 190 | 15 | 8 | 23 | M24 | 13.6 |
| WP5529 | 550 | 285 | 14 | 6 | 20 | M24 | 24.8 |
| WP3939 | 390 | 390 | 15 | 8 | 23 | M24 | 27.7 |
| WP3849 | 490 | 380 | 15 | 8 | 23 | M24 | 33.9 |
| WP5929 | 590 | 290 | 25 | 6 | 31 | M24 | 41.8 |
| WP6060 | 600 | 600 | 14 | 6 | 20 | M24 | 56.6 |
| WP5550 | 550 | 500 | 28 | 12 | 40 | M24 | 86.3 |
| WP6055 | 600 | 550 | 28 | 12 | 40 | M24 | 103 |
| Chemical Composition | Macro-Hardness | Abrasion Resistance | mpact Resistance |
| C:4.0-5.0% Mn: 1.0-5% Cr: 30-40% Fe and others: balance. Actual chemistry will vary with overlay thickness. (Custom chemistries can be developed for specific applications.) |
55-62 HRc. The hardness is a composite of hard chromium carbides (1750 V) and tough austenitic matrix. The hardness can vary depending on the thickness of the overlay. | 30 to 1 over mild steel and 3-4 times over HARDOX 400. | Will withstand continuous moderate impact. Custom overlays can be formulated to withstand higher impact. |
Zhuzhou Newmetal Materials Co., Ltd is a refractory metal manufacturer specializing in the raw material and deep-processing product of tungsten, molybdenum, tantalum, niobium, rhenium and tungsten carbide.
• We have conquered the technological difficulties in welding between the tungsten carbide wear-resistant material and stainless steel-based and iron-based. The geometrical tolerance of weldment can be controlled in level A.
• Relying on powder metallurgy institute and engineering materials institute of Central South University, We have established a production-learning-research base to provide powerful technologic support for products R&D. And we have the whole production equipment from mixing to finish machining, including the world’s most advanced cold isostatic pressing machine which can manufacture the widest and longest plate.
•Our 21 technicians, 10 after-sales personnel and 120 manufacturing workers are all heartedly at your service.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
